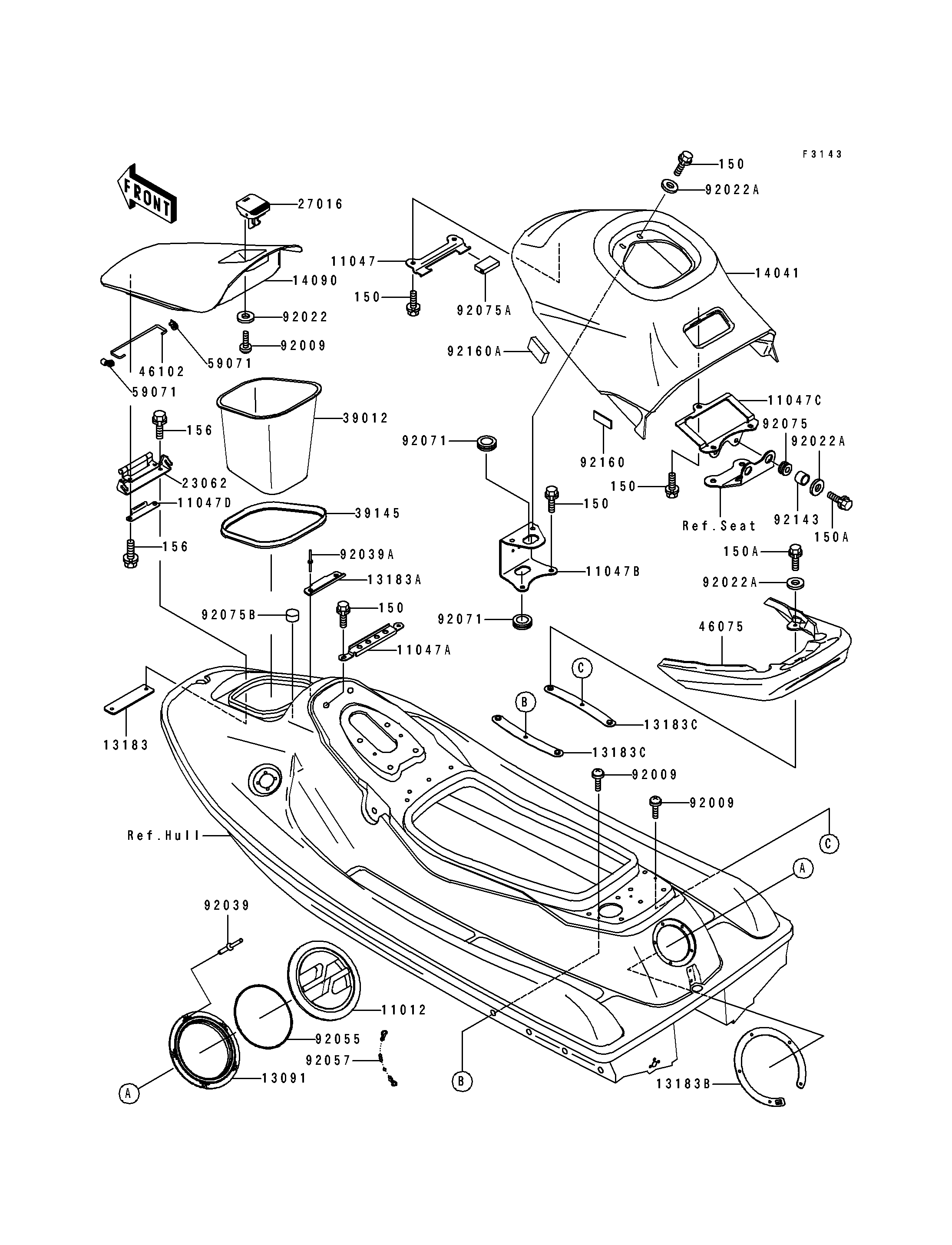

1994 XiR - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STORAGE,J.WHITE 11012 11012-3758-8U 1
BRACKET,HANDLE POLE COVER,FR 11047 11047-3763 1
BRACKET,HANDLE POLE COVER,FR 11047A 11047-3764 1
BRACKET,HANDLE POLE COVER,CNT 11047B 11047-3765 1
BRACKET,HANDLE POLE COVER,RR 11047C 11047-3773 1
BRACKET,ROD HOLDER 11047D 11047-3779 1
HOLDER,STORAGE,J.WHITE 13091 13091-3766-8U 1
PLATE,HINGE BRACKET 13183 13183-3781 1
PLATE,HOOK 13183A 13183-3801 1
PLATE,STORAGE 13183B 13183-3804 1
PLATE,TAIL GRIP 13183C 13183-3805 2
COVER-COMP,HANDLE POLE,BLUE 14041 14041-3702-3E 1
COVER,HATCH,J.WHITE 14090 14090-3711-8C 1
BRACKET-COMP,HATCH COVER 23062 23062-3705 1
LOCK-ASSY,HATCH COVER 27016 27016-3721 1
CASE-STORAGE 39012 39012-3712 1
TRIM-SEAL,STORAGE CASE 39145 39145-3734 1
GRIP,TAIL,GRAY 46075 46075-3724-RA 1
ROD 46102 46102-3715 1
JOINT 59071 59071-1125 2
SCREW,5X16 92009 92009-3789 4
WASHER,5X16X1.5 92022 92022-3041 2
WASHER,6.5X20X1.5 92022A 92022-3710 8
RIVET 92039 92039-3714 5
RIVET 92039A 92039-3753 2
RING-O,ID=131.6MM 92055 92055-3732 1
CHAIN,COVER,L=100 92057 92057-3704 1
GROMMET 92071 92071-3704 2
DAMPER 92075 92075-105 2
DAMPER 92075A 92075-1446 2
DAMPER 92075B 92075-3760 2
COLLAR,7.5X10.5X7.2 92143 92143-3730 2
DAMPER 92160 92160-3792 2
DAMPER 92160A 92160-3808 2
BOLT-WS,6X14 150 150R0614 11
BOLT-WS,6X20 150A 150R0620 6
BOLT-WP,6X18 156 156R0618 4
