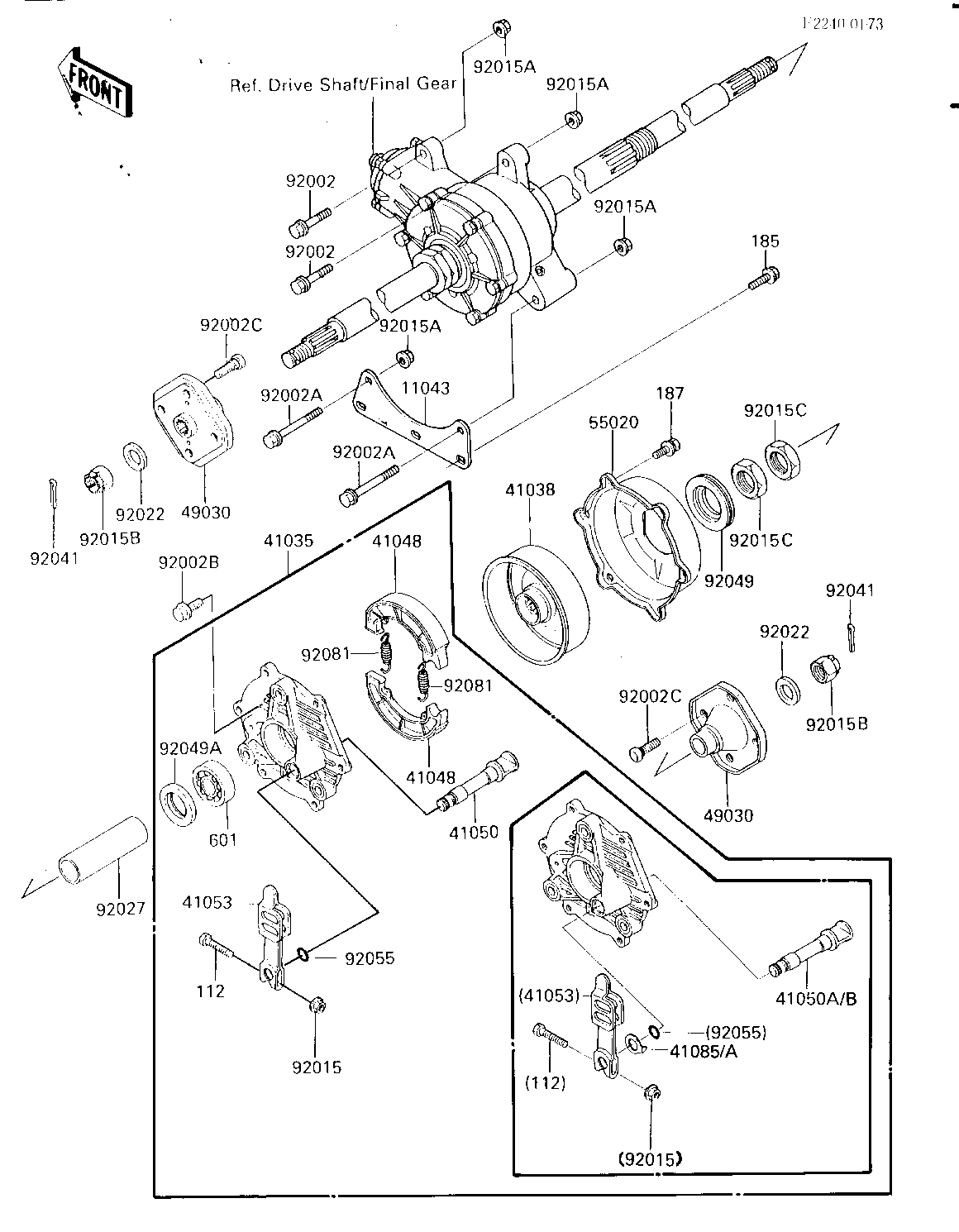

1985 Bayou 185 - REAR HUB/BRAKE (F/NO.012887-)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11043 | 11043-1550 | 1 | ||
| PANEL-ASSY-BRAKE,RR | 41035 | 41035-1246 | 1 | ||
| DRUM,RR BRAKE | 41038 | 41038-1163 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1069 | 2 | ||
| CAM-BRAKE | 41050 | 41050-1057 | 1 | ( - JKALF7A1 FA001631) | |
| CAM-BRAKE | 41050B | 41050-1062 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 41053-1056 | 1 | ||
| INDICATOR | 41085A | 41085-1053 | 1 | (JKALF7A1 FA001632 - ) | |
| HUB,RR | 49030 | 49030-1076 | 2 | ||
| GUARD,RR BRAKE DRUM | 55020 | 55020-1175 | 1 | ||
| BOLT,FLANGED,10X38 | 92002 | 92002-1313 | 2 | ||
| BOLT,FLANGED,10X70 | 92002A | 92002-1315 | 2 | ||
| BOLT,FLANGED,10X20 | 92002B | 92002-1368 | 3 | ||
| BOLT,10MM | 92002C | 92002-1459 | 8 | ||
| NUT,6MM | 92015 | 41072-007 | 1 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1428 | 4 | ||
| NUT CASTLE,18MM | 92015B | 42045-018 | 2 | ||
| NUT,LOCK,32MM | 92015C | 92015-1493 | 2 | ||
| WASHER,18.3X34X4.5 | 92022 | 92022-1658 | 2 | ||
| COLLAR,RR HUB,L=124.5 | 92027 | 92027-1758 | 1 | ||
| COTTER,4.0X35 | 92041 | 92041-1053 | 2 | ||
| SEAL-OIL,RR BRAKE DRU | 92049 | 92049-1194 | 1 | ||
| SEAL-OIL,REAR HUB | 92049A | 92049-4001 | 1 | ||
| RING-O,ID=16.8 | 92055 | 92055-1258 | 1 | ||
| SPRING-BRAKE SHOE | 92081 | 42020-004 | 2 | ||
| BOLT-UPSET | 112 | 112H0640 | 1 | ||
| BOLT-UPSET-WSP-SMALL | 185 | 185H0818 | 3 | ||
| BOLT 6X14 | 187 | 187B0614 | 6 | ||
| BEARING-BALL | 601 | 601A6007UU | 1 |
| BRACKET | |
| REF # | 11043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASSY-BRAKE,RR | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DRUM,RR BRAKE | |
| REF # | 41038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE-BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAM-BRAKE | |
| REF # | 41050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKALF7A1 FA001631) |
| CAM-BRAKE | |
| REF # | 41050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-BRAKE CAM | |
| REF # | 41053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INDICATOR | |
| REF # | 41085A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKALF7A1 FA001632 - ) |
| HUB,RR | |
| REF # | 49030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUARD,RR BRAKE DRUM | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X38 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X70 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X20 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,10MM | |
| REF # | 92002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE,18MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,32MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.3X34X4.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR HUB,L=124.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COTTER,4.0X35 | |
| REF # | 92041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,RR BRAKE DRU | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,REAR HUB | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ID=16.8 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE SHOE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP-SMALL | |
| REF # | 185 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X14 | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
