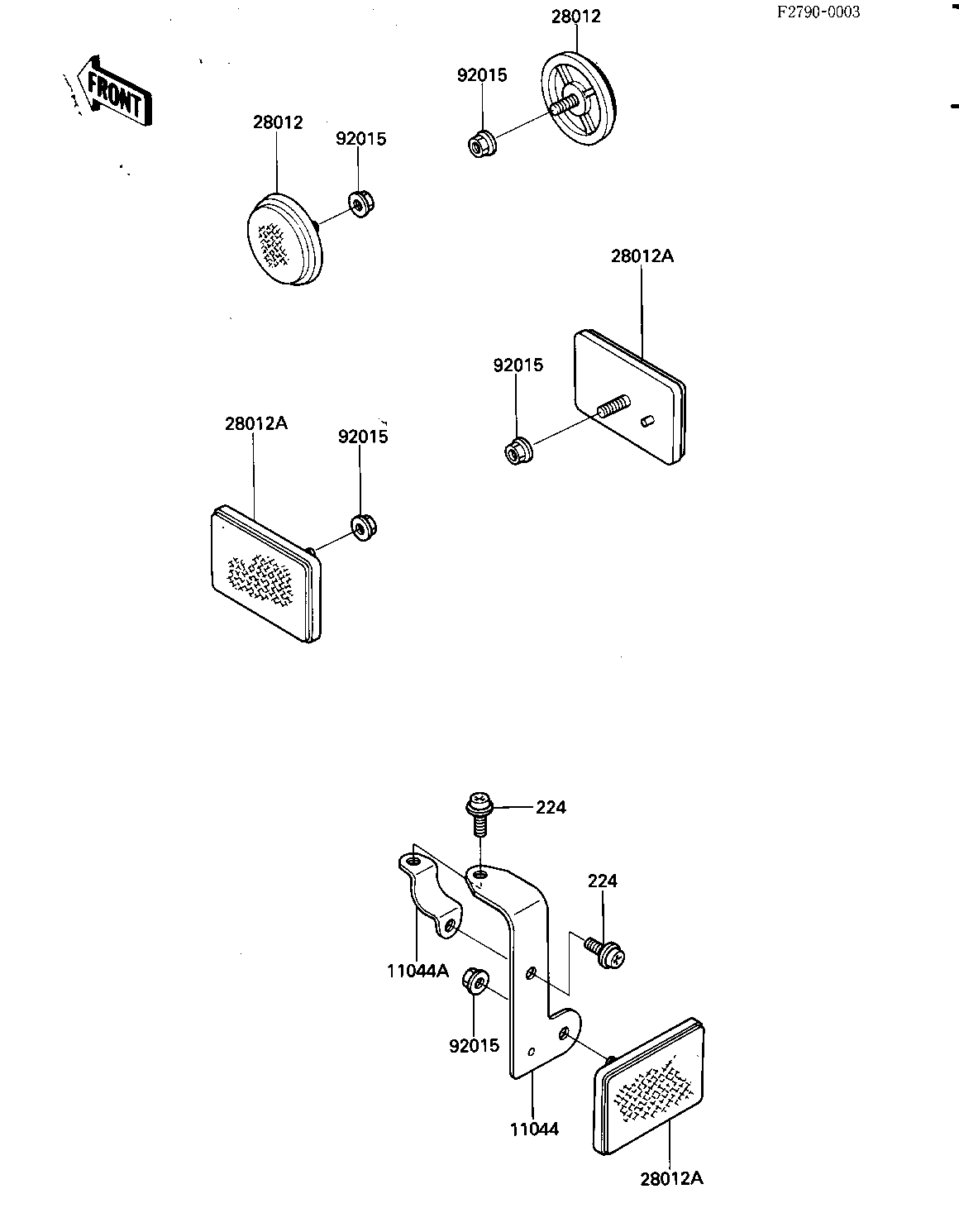

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR (Canada) 11044 11044-1223 1 CN
REFLECTOR,REFLEX 28012 28012-016 2 CN
REFLECTOR-REFLEX,RR 28012A 28012-1054 3 CN
NUT,FLANGED,5MM 92015 92015-1259 5 CN
SCREW-PAN-WP-CROS 224 224B0512 2 CN
