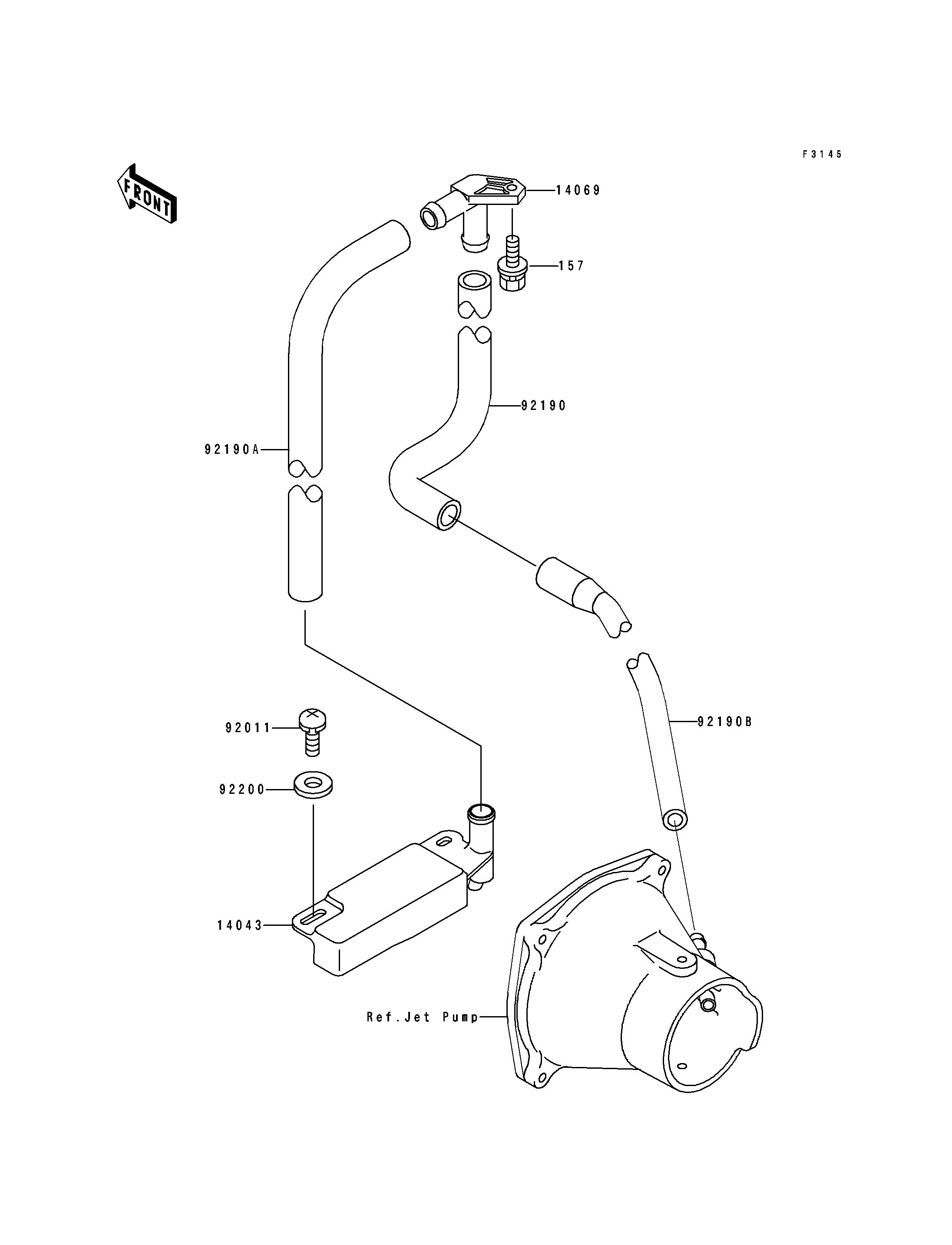

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER 14043 14043-3708 1
BREATHER 14069 14069-3708 1
SCREW,TAPPING 92011 92011-561 2
TUBE,BREATHER-HULL 92190 92190-3924 1
TUBE,FILTER-BREATHER 92190A 92190-3925 1
TUBE,HULL-NOZZLE 92190B 92190-3979 1
WASHER,5.9X16X1.5 92200 92200-3714 2
BOLT-WSP,6X18 157 157R0618 1
