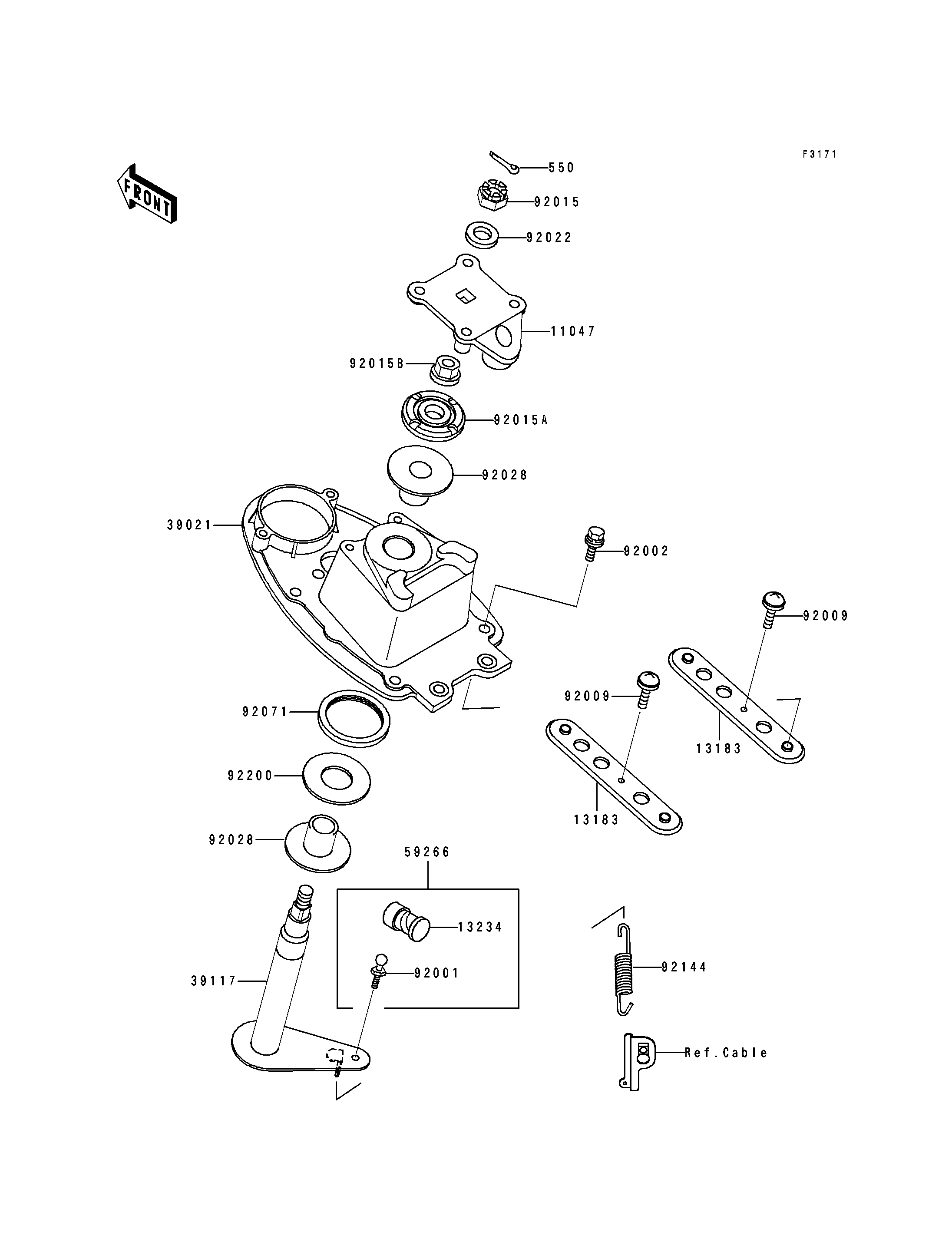

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HANDLE HOLDER 11047 11047-3759 1
PLATE,HANDLE POLE BRACKET 13183 13183-3806 2
SHAFT-COMP,JOINT 13234 13234-3708 1
BRACKET-HANDLE POLE 39021 39021-3704 1
SHAFT-STRG 39117 39117-3706 1
JOINT-BALL 59266 59266-3707 1
BOLT,BALL,6MM 92001 92001-3703 1
BOLT,8X25 92002 92002-3774 4
SCREW,5X16 92009 92009-3789 2
NUT,CASTLE,14MM 92015 92015-3805 1
NUT,STEERING,20MM 92015A 92015-3826 1
NUT,STEERING,LOCK,20MM 92015B 92015-3827 1
WASHER,15X34X2.0 92022 92022-3738 1
BUSHING,STEERING 92028 92028-3748 2
GROMMET 92071 92071-3792 1
SPRING 92144 92144-3737 1
WASHER,32.5X70X2 92200 92200-3718 1
PIN-COTTER,3X35 550 550S3035 1
