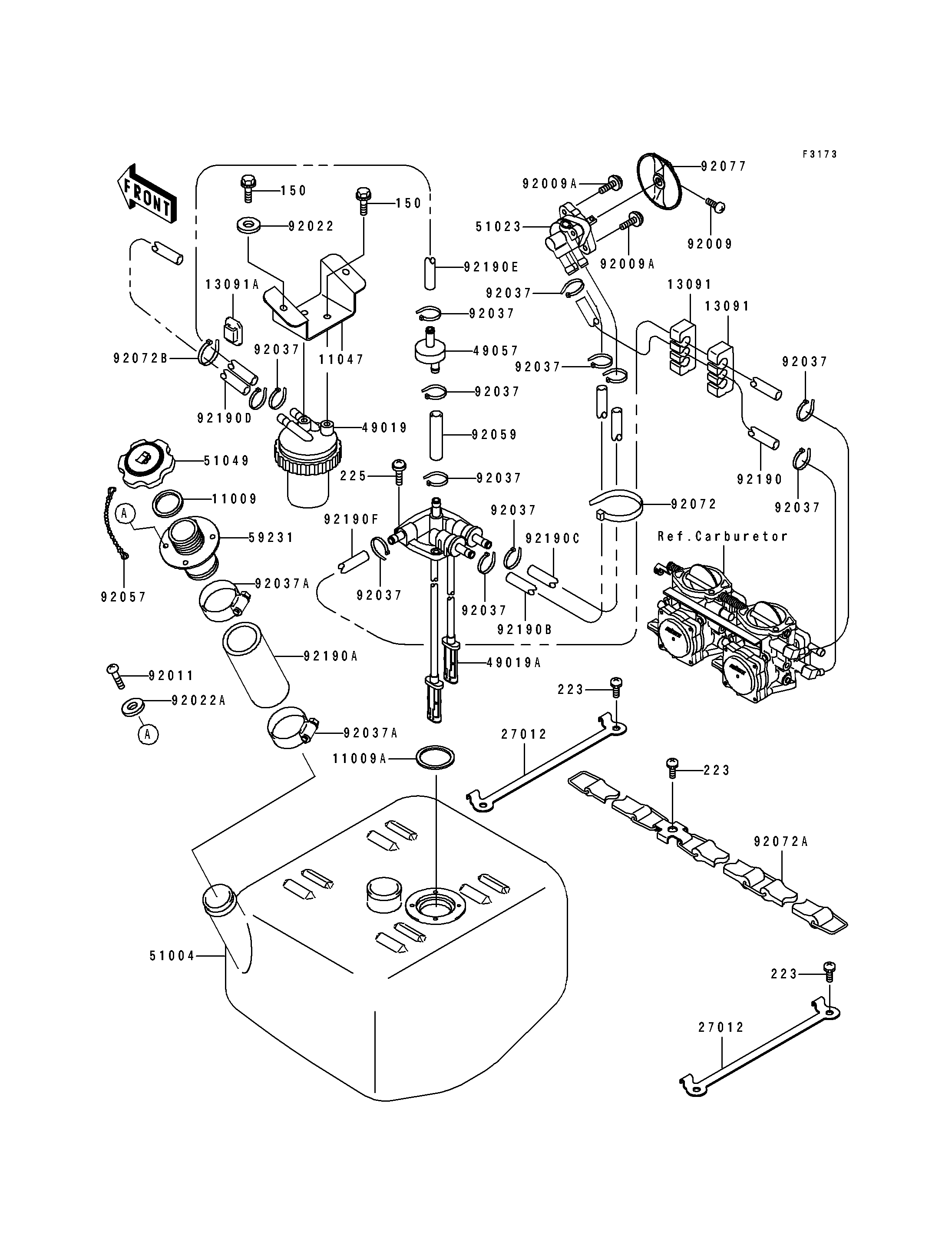

1994 XiR - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET 11009A 11009-3790 1
BRACKET,FUEL FILTER 11047 11047-3761 1
HOLDER,TUBE 13091 13091-3758 2
HOLDER,BAND 13091A 13091-3764 1
HOOK,FIRE EXTINGUISHER 27012 27012-3772 2
FILTER-FUEL 49019 49019-3708 1
FILTER-FUEL 49019A 49019-3710 1
VALVE-RELIEF 49057 49057-3001 1
TANK-FUEL 51004 51004-3717 1
TAP-ASSY,FUEL 51023 51023-3718 1
CAP-TANK,FUEL 51049 51049-3719 1
FILLER,FUEL TANK 59231 59231-3001 1
SCREW,4X8 92009 92009-3729 1
SCREW,5X16 92009A 92009-3789 2
SCREW 92011 92011-562 4
WASHER,6.5X20X1.5 92022 92022-3710 2
WASHER 92022A 92022-563 4
CLAMP 92037 92037-1173 13
CLAMP 92037A 92037-3009 2
CHAIN,COVER,L=100 92057 92057-3704 1
TUBE,5.8X12.2X55 92059 92059-3026 1
BAND,L=149 92072 92072-031 1
BAND,TANK&FIRE EXTINGUISHER 92072A 92072-3764 2
BAND 92072B 92072-3778 1
KNOB 92077 92077-3717 1
TUBE,5.8X10.8X860 92190 92190-3853 1
TUBE,45X53X115 92190A 92190-3856 1
TUBE,"RES",5.8X10.8X420 92190B 92190-3889 1
TUBE,"ON",5.8X10.8X420 92190C 92190-3890 1
TUBE,5.8X10.8X700 92190D 92190-3892 1
TUBE,5.8X10.8X540 92190E 92190-3893 1
TUBE,"RETURN",CARB-TANK 92190F 92190-3923 1
BOLT-WS,6X14 150 150R0614 4
SCREW-PAN-WS-CROS,6X14 223 223R0614 6
SCREW-PAN-WSP-CROS,5X16 225 225R0516 4
