Parts Diagrams |

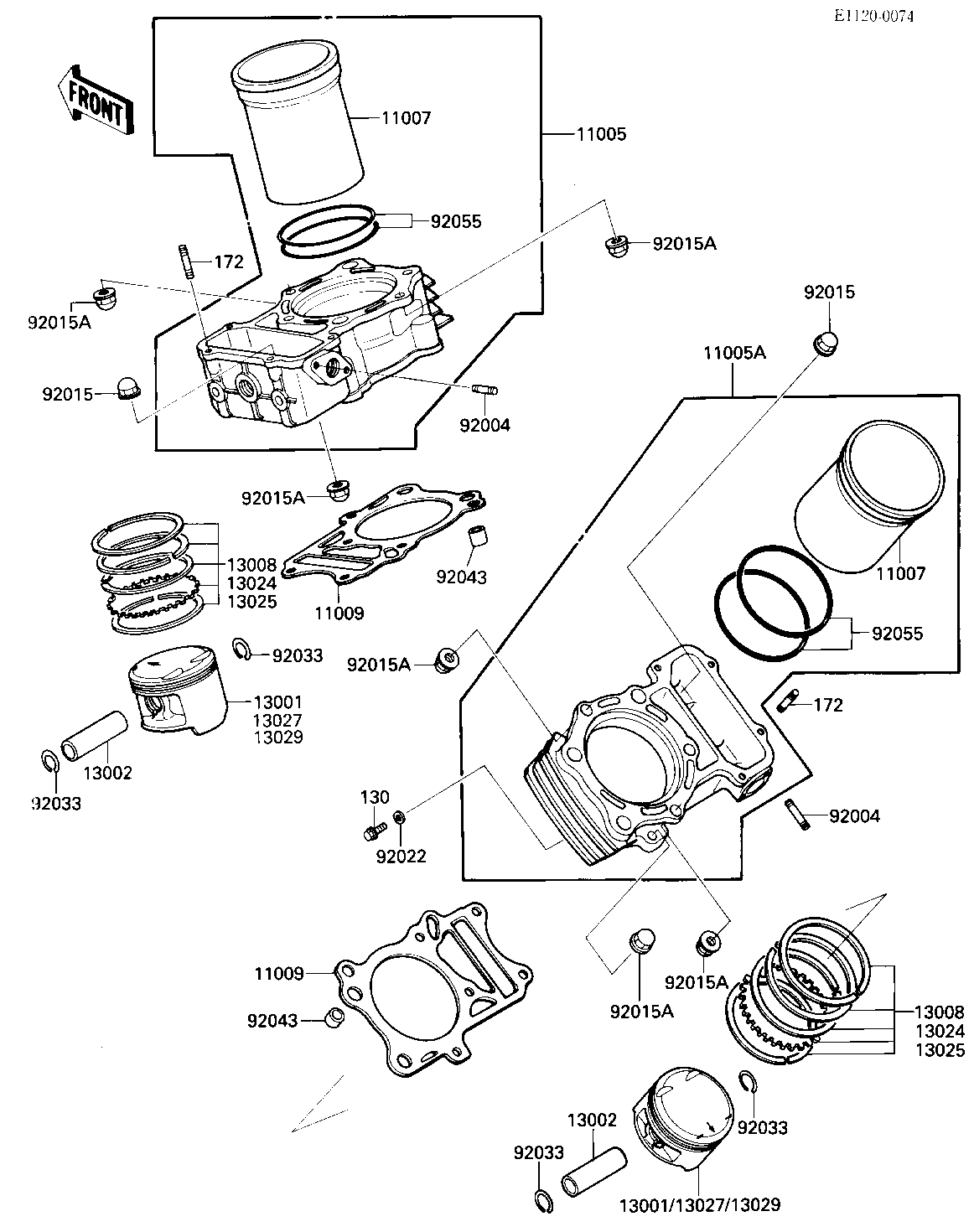

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CYLINDER-ENGINE,FR | 11005 | 11005-1456 | 1 | ||
CYLINDER-ENGINE,RR | 11005A | 11005-1458 | 1 | ||
LINER-CYLINDER | 11007 | 11007-1072 | 2 | ||
GASKET,CYLINDER BASE | 11009 | 11060-1084 | 2 | ||
PISTON-ENGINE,STD | 13001 | 13001-1214 | 2 | ||
PIN-PISTON | 13002 | 13002-1056 | 2 | ||
RING-SET-PISTON,STD | 13008 | 13008-1061 | 2 | ||
RING-SET PISTON LL,O/ | 13024 | 13024-1061 | 2 | ||
RING-SET PISTON L,O/S | 13025 | 13025-1061 | 2 | ||
PISTON-ENGINE LL,O/S, | 13027 | 13027-1127 | 2 | ||
PISTON-ENGINE L,O/S,0 | 13029 | 13029-1127 | 2 | ||
STUD,6X18 | 92004 | 92004-1154 | 4 | ||
NUT-8MM | 92015 | 92015-1143 | 4 | ||
NUT,CAP,8MM,BLACK | 92015A | 92015-1174 | 6 | ||
WASHER OIL PUMP BANJO | 92022 | 92022-077 | 2 | ||
RING-SNAP | 92033 | 92033-1188 | 4 | ||
PIN,11X14X12.3 | 92043 | 92043-1266 | 4 | ||
RING-O,90MM | 92055 | 92055-1273 | 4 | ||
BOLT-FLANGED | 130 | 130W0610 | 2 | ||
STUD 6X20 | 172 | 172G0620 | 4 |
CYLINDER-ENGINE,FR | |
REF # | 11005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ENGINE,RR | |
REF # | 11005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LINER-CYLINDER | |
REF # | 11007 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,CYLINDER BASE | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PISTON-ENGINE,STD | |
REF # | 13001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN-PISTON | |
REF # | 13002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SET-PISTON,STD | |
REF # | 13008 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SET PISTON LL,O/ | |
REF # | 13024 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SET PISTON L,O/S | |
REF # | 13025 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PISTON-ENGINE LL,O/S, | |
REF # | 13027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PISTON-ENGINE L,O/S,0 | |
REF # | 13029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,6X18 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT-8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CAP,8MM,BLACK | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER OIL PUMP BANJO | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,11X14X12.3 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,90MM | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD 6X20 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
