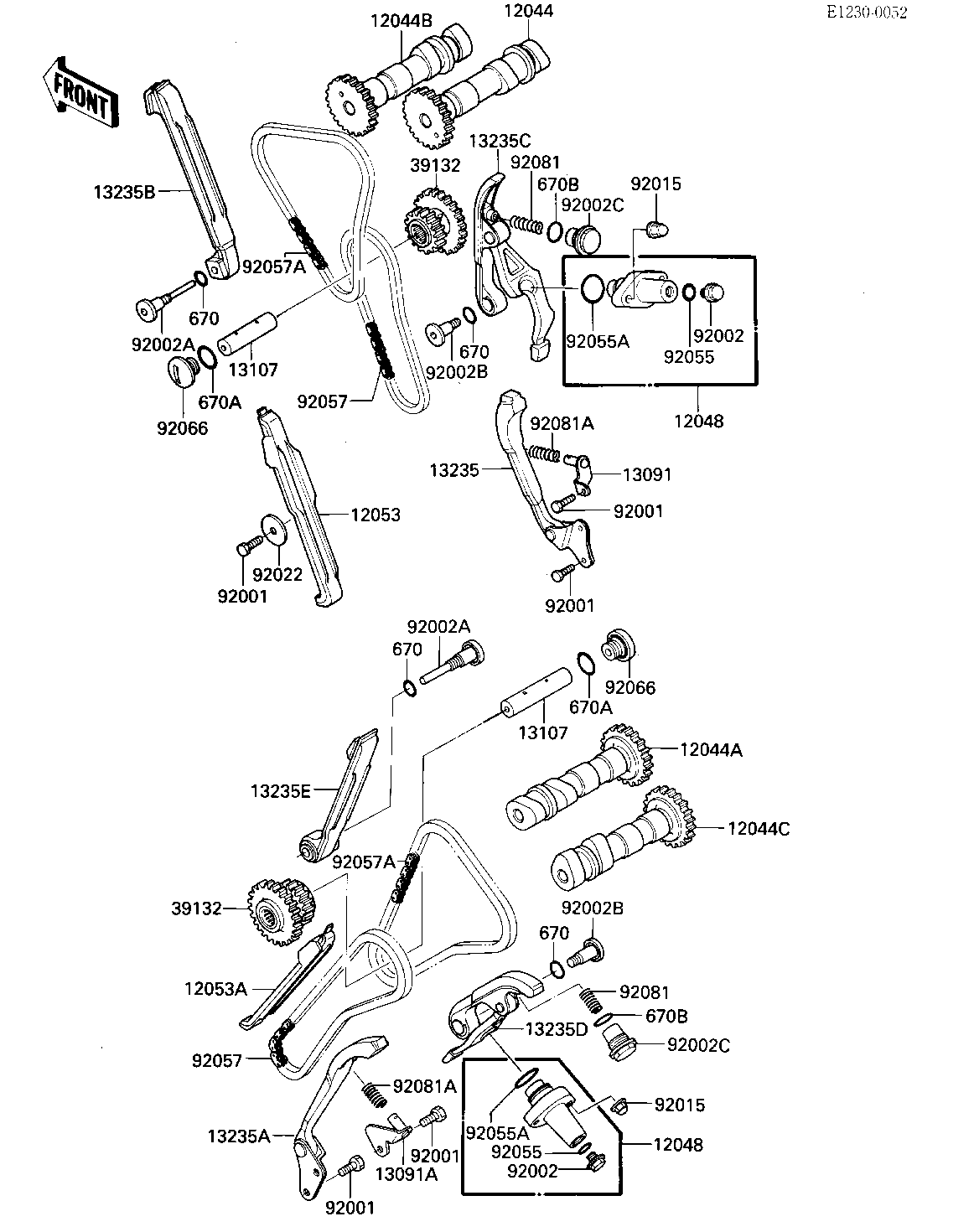

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAMSHAFT-VALVE,INTAKE | 12044 | 12044-1144 | 1 | ||
CAMSHAFT-VALVE,INTAKE | 12044A | 12044-1145 | 1 | ||
CAMSHAFT-VALVE,EXHAUS | 12044B | 12044-1146 | 1 | ||
CAMSHAFT-VALVE,EXHAUS | 12044C | 12044-1147 | 1 | ||
TENSIONER-ASSY | 12048 | 12048-1069 | 2 | ||
GUIDE-CHAIN,FR,LWR | 12053 | 12053-1161 | 1 | ||
GUIDE-CHAIN,RR,LWR | 12053A | 12053-1162 | 1 | ||
HOLDER,CHAIN GUIDE,FR | 13091 | 13091-1367 | 1 | ||
HOLDER,CHAIN GUIDE,RR | 13091A | 13091-1368 | 1 | ||
SHAFT,IDLER | 13107 | 13107-1145 | 2 | ||
GUIDE-COMP,FR,LWR | 13235 | 13235-1051 | 1 | ||
GUIDE-COMP,RR,LWR | 13235A | 13235-1052 | 1 | ||
GUIDE-COMP,FR,UPP | 13235B | 13235-1053 | 1 | ||
GUIDE-COMP,FR,UPP | 13235C | 13235-1054 | 1 | ||
GUIDE-COMP,RR,UPP | 13235D | 13235-1055 | 1 | ||
GUIDE-COMP,RR,UPP | 13235E | 13235-1056 | 1 | ||
SPROCKET-ASSY-IDLER | 39132 | 39132-1053 | 2 | ||
BOLT,EXCLUSIVE MASS P | 92001 | 92001-1457 | 7 | ||
BOLT | 92002 | 92002-1302 | 2 | ||
BOLT | 92002A | 92002-1497 | 2 | ||
BOLT | 92002B | 92002-1498 | 2 | ||
BOLT,TENSIONER | 92002C | 92002-1499 | 2 | ||
NUT,CAP 6MM,BLACK | 92015 | 92015-1170 | 4 | ||
WASHER,PLAIN,7MM | 92022 | 92022-227 | 1 | ||
O RING | 92055 | 670D2010 | 2 | ||
"0" RING,21MM | 92055A | 670D2021 | 2 | ||
CHAIN LWR 75RH2015X82 | 92057 | 92057-1192 | 2 | ||
CHAIN,UPP,79RH2020X82 | 92057A | 92057-1193 | 2 | ||
PLUG,IDLE | 92066 | 92066-1196 | 2 | ||
SPRING,TENSIONER | 92081 | 92081-1380 | 2 | ||
SPRING | 92081A | 92081-1837 | 2 | ||
"O" RING | 670 | 670B2011 | 4 | ||
"0" RING,16MM | 670A | 670B2016 | 2 | ||
"0" RING,18MM | 670B | 670B2018 | 2 |
CAMSHAFT-VALVE,INTAKE | |
REF # | 12044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,INTAKE | |
REF # | 12044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,EXHAUS | |
REF # | 12044B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,EXHAUS | |
REF # | 12044C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TENSIONER-ASSY | |
REF # | 12048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR,LWR | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,LWR | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CHAIN GUIDE,FR | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CHAIN GUIDE,RR | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,IDLER | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-COMP,FR,LWR | |
REF # | 13235 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-COMP,RR,LWR | |
REF # | 13235A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-COMP,FR,UPP | |
REF # | 13235B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-COMP,FR,UPP | |
REF # | 13235C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-COMP,RR,UPP | |
REF # | 13235D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-COMP,RR,UPP | |
REF # | 13235E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-ASSY-IDLER | |
REF # | 39132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,EXCLUSIVE MASS P | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,TENSIONER | |
REF # | 92002C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,CAP 6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,PLAIN,7MM | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"0" RING,21MM | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN LWR 75RH2015X82 | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,UPP,79RH2020X82 | |
REF # | 92057A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,IDLE | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,TENSIONER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"O" RING | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
"0" RING,16MM | |
REF # | 670A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"0" RING,18MM | |
REF # | 670B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
