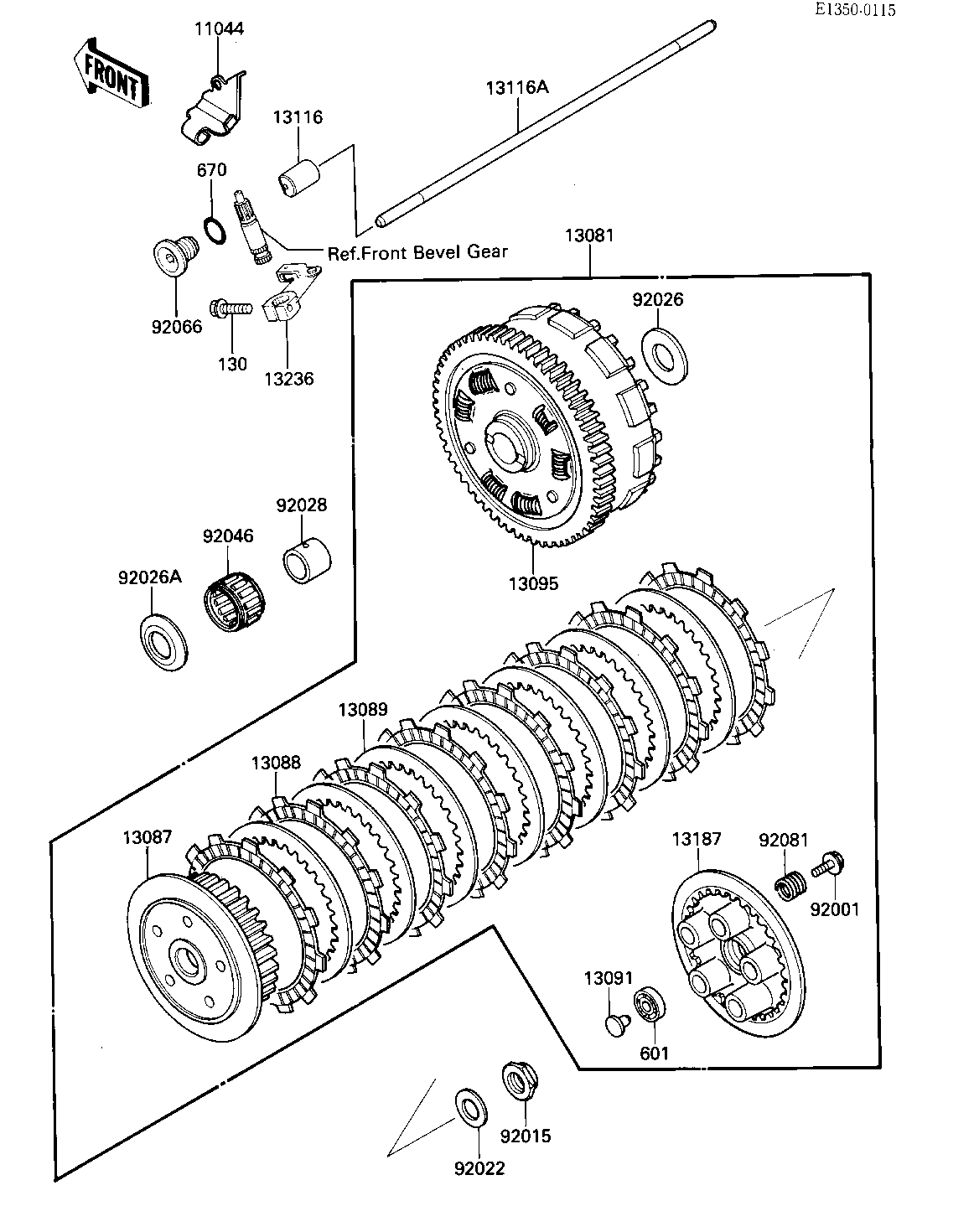

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,CLUTCH CABLE | 11044 | 11044-1287 | 1 | ||
CLUTCH-ASSY | 13081 | 13081-1210 | 1 | ||
HUB,CLUTCH | 13087 | 13087-042 | 1 | ||
PLATE-FRICTION | 13088 | 13088-1087 | 8 | ||
PLATE,CLUTCH STEL | 13089 | 13089-027 | 7 | ||
HOLDER | 13091 | 13091-1085 | 1 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1119 | 1 | ||
ROD,CLUTCH PUSH | 13116 | 13116-1040 | 1 | ||
ROD-PUSH,L=316.5 | 13116A | 13116-1114 | 1 | ||
PLATE-CLUTCH OPERATIN | 13187 | 13187-1006 | 1 | ||
LEVER-COMP,CLUTCH REL | 13236 | 13236-1125 | 1 | ||
BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
NUT,20MM | 92015 | 92015-1555 | 1 | ||
WASHER,PLAIN,2.3X20.3 | 92022 | 92022-1116 | 1 | ||
WASHER TH 25.5X47X2.5 | 92026 | 92026-022 | 1 | ||
SPACER,THRUST,T=5.5MM | 92026A | 92026-116 | 1 | ||
BUSHING,CLUTCH | 92028 | 92028-178 | 1 | ||
BEARING,KTV323723 | 92046 | 92046-028 | 1 | ||
PLUG,CYLINDER HEAD | 92066 | 92066-1158 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-1033 | 5 | ||
BOLT-FLANGED,6X20,BLA | 130 | 130S0620 | 1 | ||
BEARING-BALL | 601 | 92045-1235 | 1 | ||
"O" RING,15MM | 670 | 670B2015 | 1 |
