Parts Diagrams |

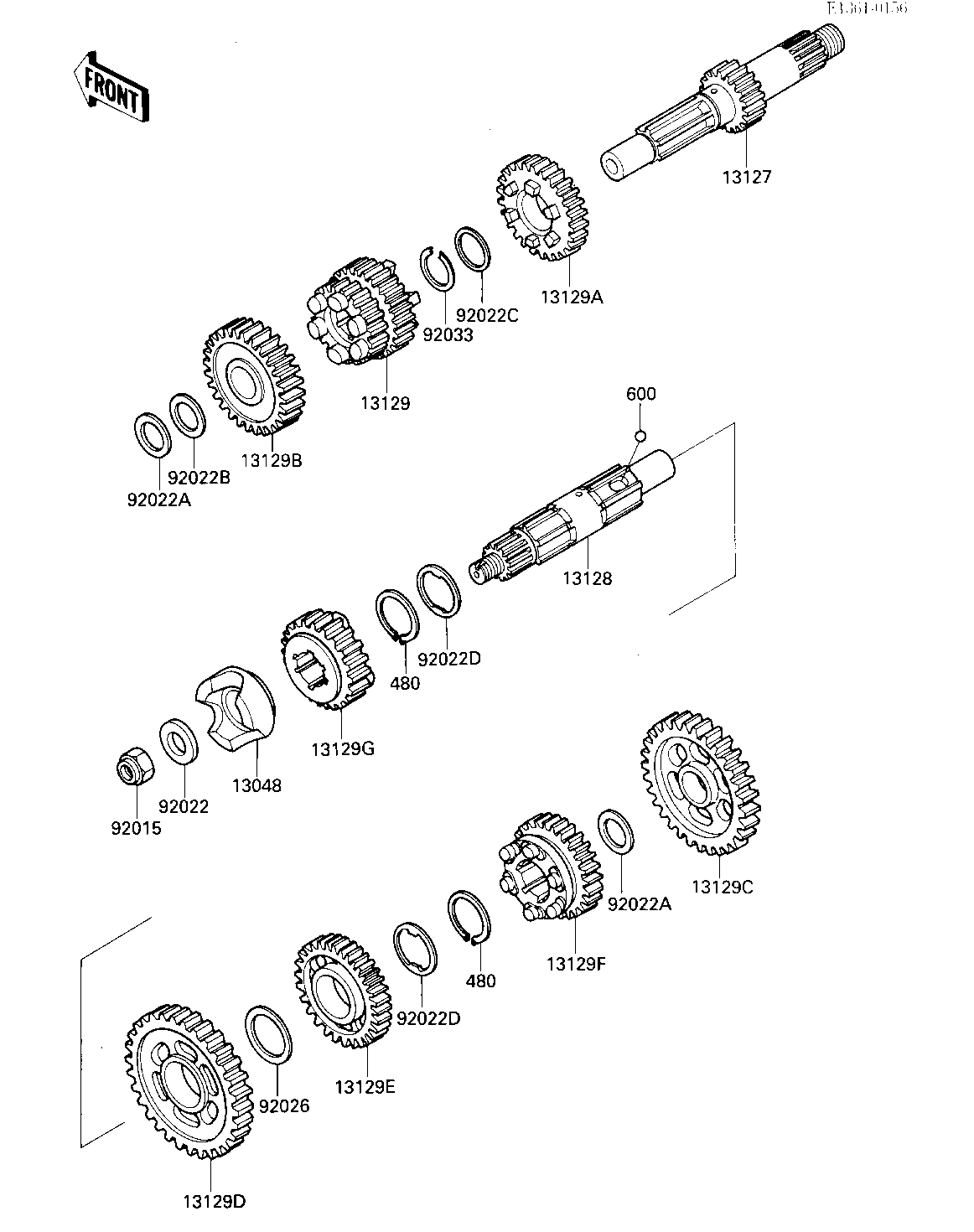

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAM-DAMPER,OUTPUT SHA | 13048 | 13048-1014 | 1 | ||
| SHAFT-TRANSMISSION IN | 13127 | 13127-1117 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1114 | 1 | ||
| GEAR,INPUT 2ND&3RD,20 | 13129 | 13129-1630 | 1 | ||
| GEAR,INPUT 4TH,26T | 13129A | 13129-1631 | 1 | ||
| GEAR,INPUT 5TH,28T | 13129B | 13129-1632 | 1 | ||
| GEAR,OUTPUT LOW,36T | 13129C | 13129-1633 | 1 | ||
| GEAR,OUTPUT 2ND,32T | 13129D | 13129-1634 | 1 | ||
| GEAR,OUTPUT 3RD,32T | 13129E | 13129-1635 | 1 | ||
| GEAR,OUTPUT 4TH,26T | 13129F | 13129-1636 | 1 | ||
| GEAR,OUTPUT 5TH,24T | 13129G | 13129-1637 | 1 | ||
| NUT,14M/M | 92015 | 92015-1067 | 1 | ||
| WASHER,PLAIN,5X14.1 | 92022 | 92022-1115 | 1 | ||
| WASHER THRUST | 92022A | 92022-112 | 2 | ||
| SHIM-KICK SHAFT | 92022B | 92022-144 | 1 | ||
| WASHER PLAIN | 92022C | 92022-161 | 1 | ||
| WASHER,LOCK | 92022D | 92024-069 | 2 | ||
| WASHER,THRUST | 92026 | 92026-079 | 1 | ||
| CIRCLIP | 92033 | 92033-026 | 1 | ||
| CIRCLIP,30MM | 480 | 480J3000 | 2 | ||
| BALL STEEL 5/32' | 600 | 600A0500 | 3 |
