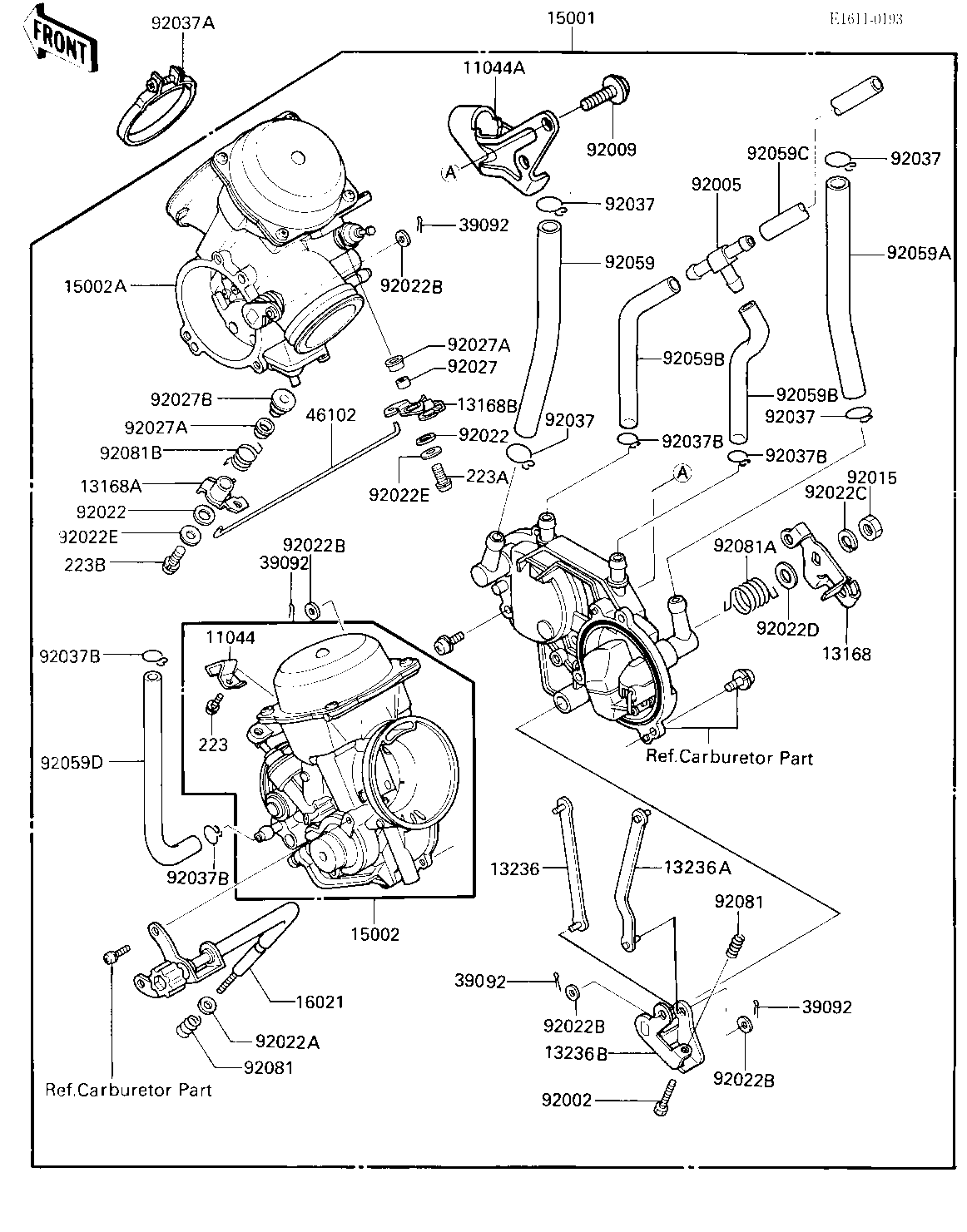

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11044 | 11044-1152 | 1 | ||
BRACKET,THROTTLE CABL | 11044A | 11044-1351 | 1 | ||
LEVER,THROTTLE | 13168 | 13168-1262 | 1 | ||
LEVER,PLUNGER,FR | 13168A | 13168-1275 | 1 | ||
LEVER,PLUNGER,RR | 13168B | 13168-1276 | 1 | ||
LEVER-COMP,FR | 13236 | 13236-1130 | 1 | ||
LEVER-COMP,RR | 13236A | 13236-1131 | 1 | ||
LEVER-COMP,THROTTLE | 13236B | 13236-1132 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1147 | 1 | ||
CARBURETOR,FR | 15002 | 15002-1221 | 1 | ||
CARBURETOR,RR | 15002A | 15002-1223 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1112 | 1 | ||
PIN-HAIR | 39092 | 39092-1051 | 4 | ||
ROD,STARTER | 46102 | 46102-1141 | 1 | ||
BOLT,THROTTLE ADJUST | 92002 | 92002-1556 | 1 | ||
FITTING,T-TYPE | 92005 | 92005-1135 | 1 | ||
SCREW | 92009 | 92009-1365 | 1 | ||
NUT,LOCK | 92015 | 92015-1526 | 1 | ||
WASHER,6.1X11X0.8,POL | 92022 | 92022-1199 | 2 | ||
WASHER,PLAIN,STOP SPR | 92022A | 92022-1480 | 1 | ||
WASHER | 92022B | 92022-1676 | 4 | ||
WASHER,SPRING | 92022C | 92022-1708 | 1 | ||
WASHER | 92022D | 92022-1709 | 1 | ||
WASHER,4X10X1.5 | 92022E | 92022-1721 | 2 | ||
COLLAR | 92027 | 92027-1917 | 1 | ||
COLLAR | 92027A | 92027-1918 | 2 | ||
COLLAR | 92027B | 92027-1919 | 1 | ||
CLAMP,FUEL HOSE | 92037 | 92037-1158 | 4 | ||
CLAMP | 92037A | 92037-1637 | 2 | ||
CLAMP,TUBE | 92037B | 92037-1682 | 4 | ||
TUBE,FUEL INLET | 92059 | 92059-1029 | 1 | ||
TUBE,7.3X12.5X260 | 92059A | 92059-1492 | 1 | ||
TUBE,11X7X55 | 92059B | 92059-1612 | 2 | ||
TUBE,7X11X260 | 92059C | 92059-1639 | 1 | ||
TUBE,5.3X10.5X100 | 92059D | 92059-1623 | 1 | ||
SPRING,THROTTLE STOP | 92081 | 92081-1617 | 2 | ||
SPRING,THROTTLE LEVER | 92081A | 92081-1841 | 1 | ||
SPRING,PLUNGER LEVER | 92081B | 92081-1842 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223D0408 | 1 | ||
SCREW-PAN-WS-CROS | 223A | 223D0414 | 1 | ||
SCREW-PAN-WS-CROS | 223B | 223D0420 | 1 |
