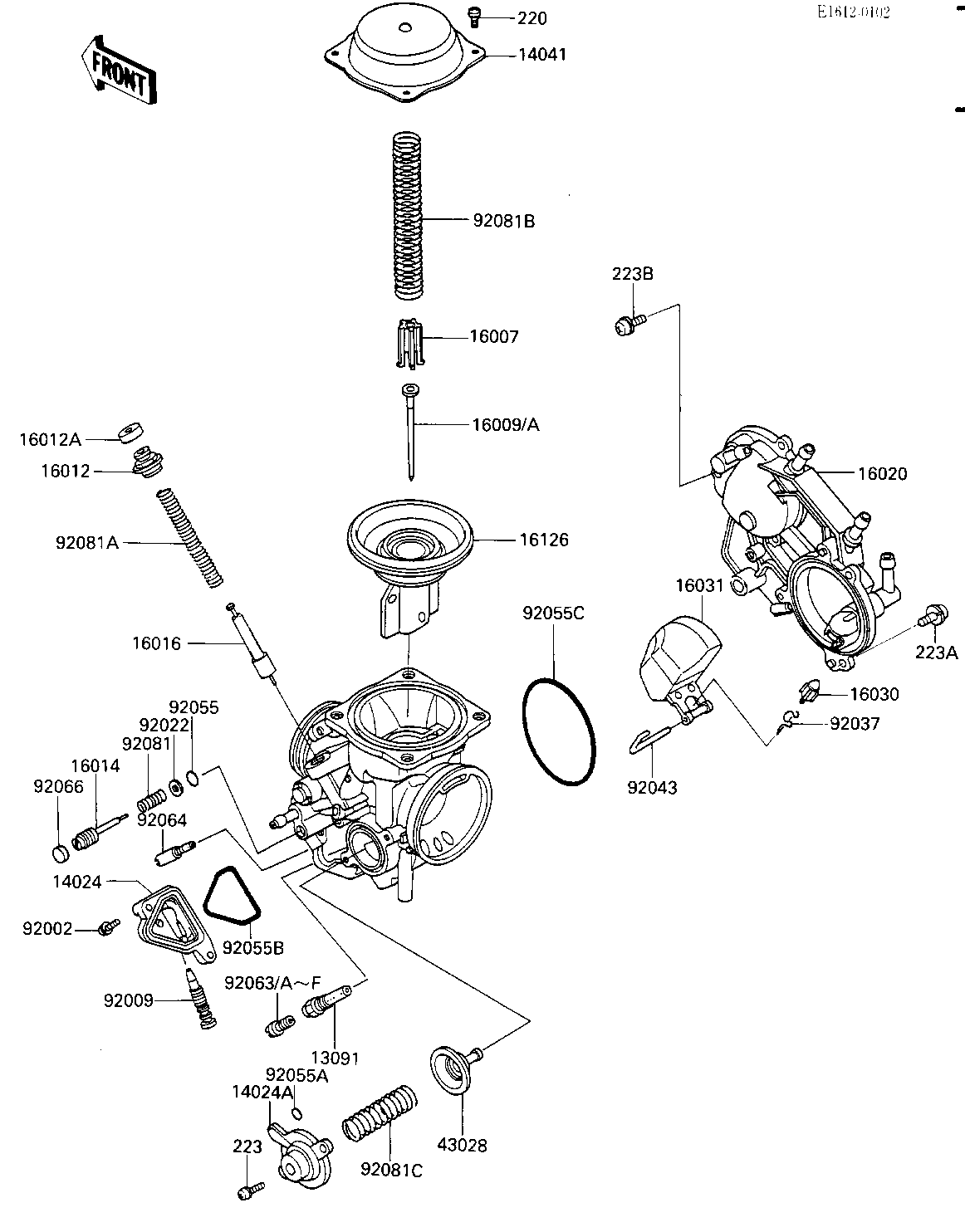

1985 LTD - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1384 2
COVER,DRAIN 14024 14024-1094 2
COVER,AIR CUT VALVE 14024A 14025-1903 2
COVER-COMP,MIXING CHA 14041 14041-1061 2
SEAT-SPRING,THROTTLE 16007 16007-1117 2
NEEDLE-JET,27H,FR 16009 16009-1261 2
NEEDLE-JET,27I,RR 16009A 16009-1262 2
CAP-STARTER PLUNGER 16012 16012-1051 2
CAP-STARTER PLUNGER 16012A 16012-1052 2
SCREW-PILOT AIR 16014 16014-1054 2
PLUNGER,STARTER 16016 16016-1066 2
CHAMBER-FLOAT,COMP 16020 16020-1051 2
VALVE-FLOAT 16030 16030-1057 2
FLOAT 16031 16031-1059 2
VALVE,VACUUM 16126 16126-1173 2
DIAPHRAGM,AIR CUT VAL 43028 43028-1053 2
BOLT 92002 92002-1761 2
SCREW,DRAIN 92009 92009-1095 2
WASHER,PLAIN 92022 92022-1003 2
CLIP,FLOAT VALVE 92037 16044-007 2
PIN,FLOAT 92043 92043-1285 2
O RING,PILOT ADJ 92055 92055-1002 2
RING-O 92055A 92055-1245 2
RING-O 92055B 92055-1290 2
RING-O 92055C 92055-1291 2
MAIN JET,#140 92063 92063-1013 2 (RACING USE ONLY)
MAIN JET,#135 92063A 92063-1014 2
MAIN JET,#138 92063B 92063-1015 2 (RACING USE ONLY)
MAIN JET,2ND,#125 92063C 92063-1069 2 (RACING USE ONLY)
MAIN JET,2ND,#128 92063D 92063-1074 2 (RACING USE ONLY)
MAIN JET,2ND,#130 92063E 92063-1075 2 (RACING USE ONLY)
JET-MAIN,#132 92063F 92063-1076 2 (RACING USE ONLY)
JET-PILOT 92064 92064-1118 2
PLUG,PILOT SCREW 92066 92066-1051 2
SPRING,PIROT ADJ SCRW 92081 92081-1002 2
SPRING,STARTER PLUNGE 92081A 92081-1761 2
SPRING,VACUUM VALVE 92081B 92081-1874 2
SPRING,AIR CUT VALVE 92081C 92081-1891 2
SCREW-PAN-CROS 220 220D0408 8
SCREW-PAN-WS-CROS 223 223D0410 4
SCREW-PAN-WS-CROS 223A 223D0512 6
