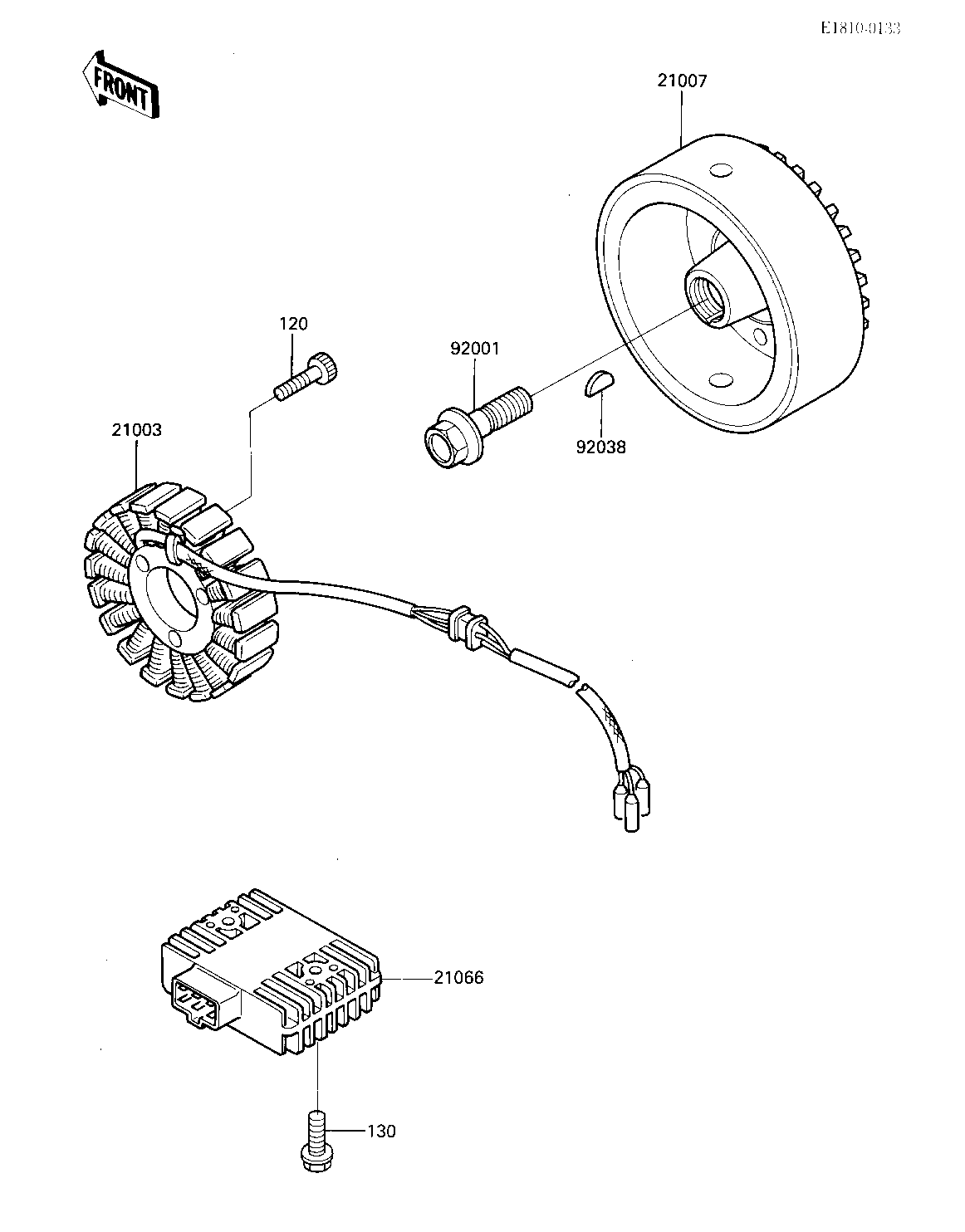

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1118 1
ROTOR 21007 21007-1127 1
REGULATOR-VOLTAGE 21066 21066-1055 1
BOLT,12X40 92001 92001-1146 1
WOODRUFF KEY 92038 92038-001 1
BOLT,SOCKET,6X35 120 120P0635 3
BOLT,FLANGED,6X20 130 130B0620 2
