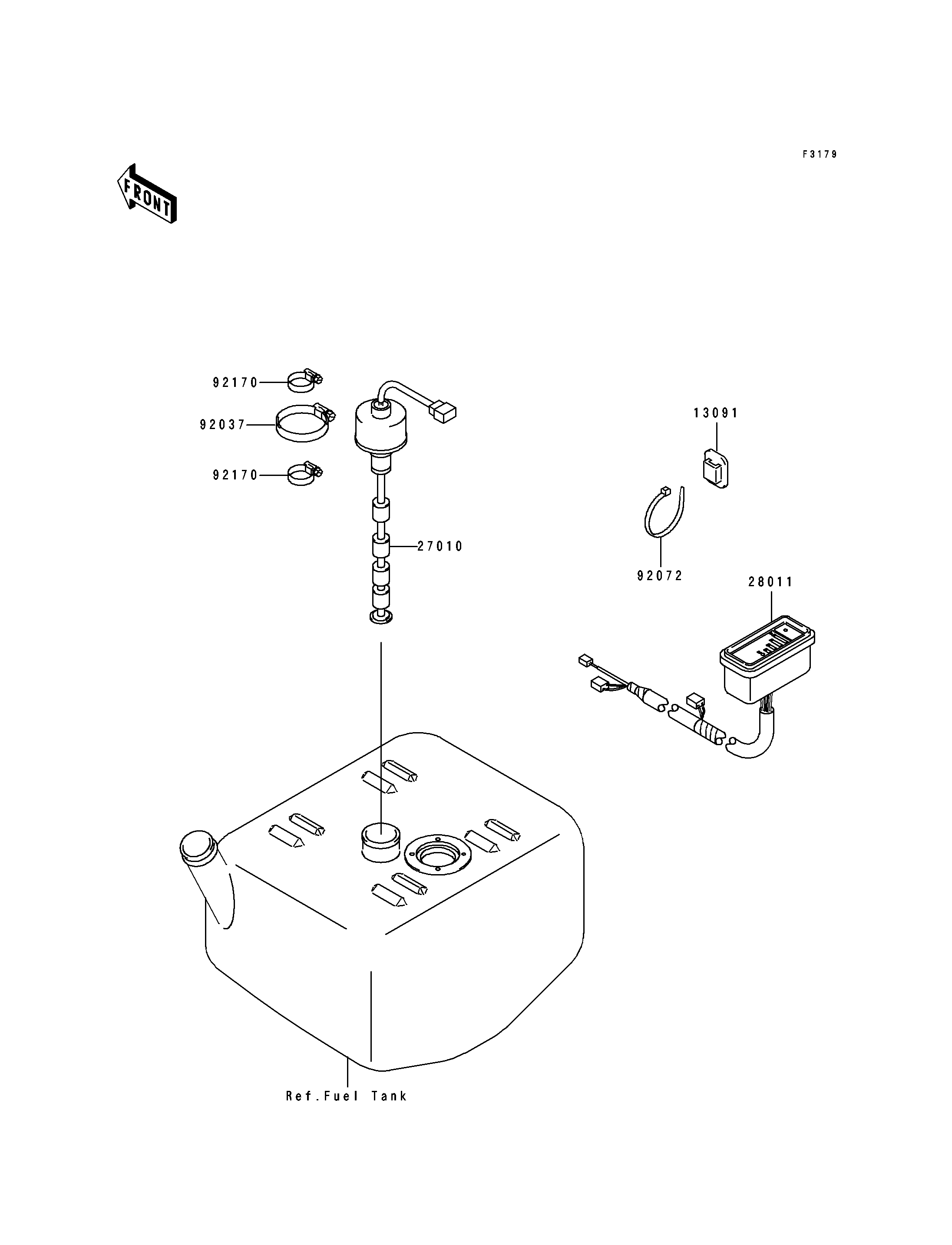

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,BAND 13091 13091-3764 3
SWITCH,FUEL LEVEL 27010 27010-3727 1
METER,FUEL 28011 28011-3705 1
CLAMP 92037 92037-3009 1
BAND 92072 92072-3778 4
CLAMP 92170 92170-3718 2
