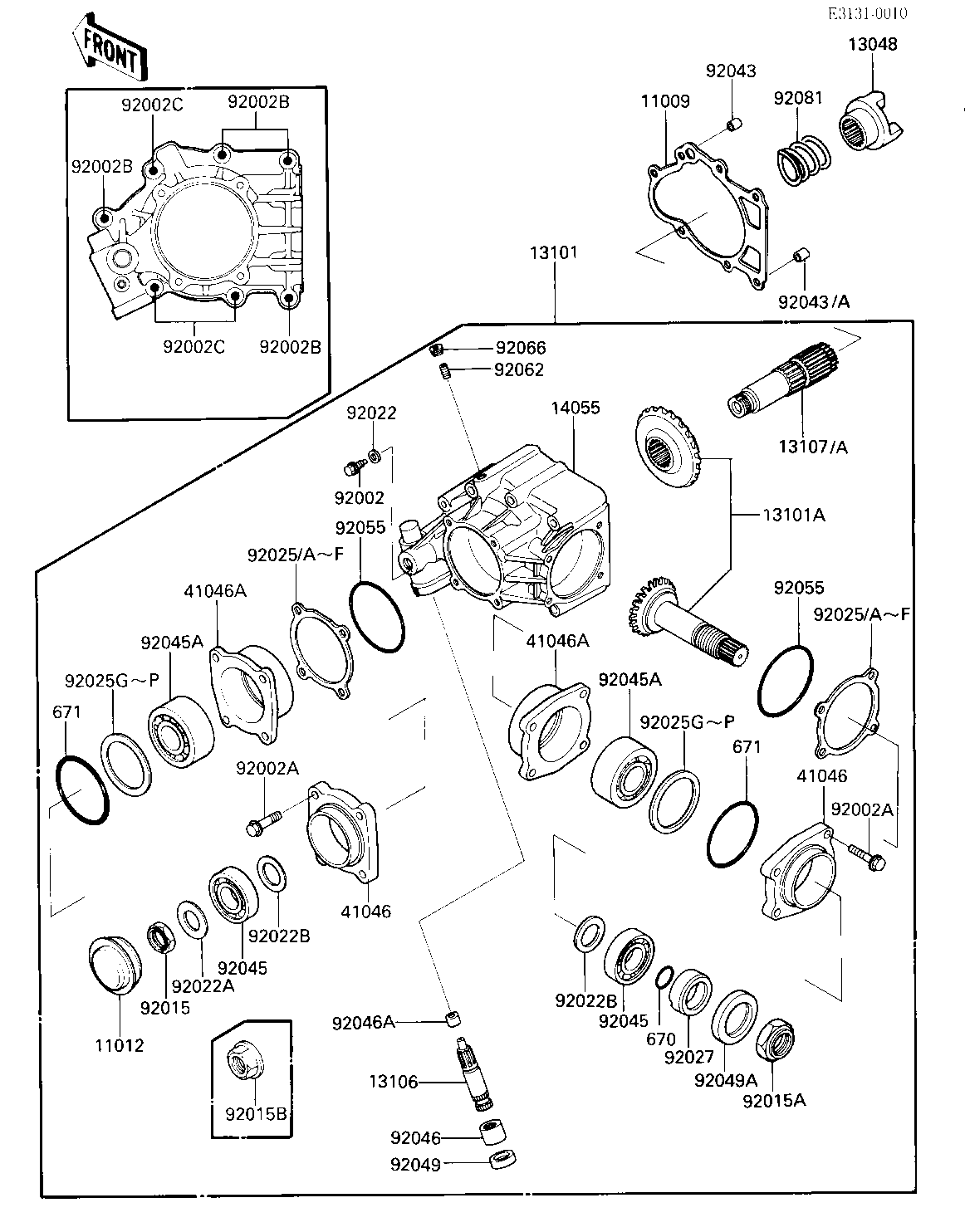

1985 LTD - FRONT BEVEL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GEAR CASE 11009 11060-1086 1
CAP,FRONT BEVEL 11012 11012-1715 1
CAM-DAMPER 13048 13048-1058 1
GEAR-ASSY,BEVEL,FR 13101 13101-1058 1
GEAR-ASSY,BEVEL,FR 13101A 13101-5048 1
SHAFT-CLUTCH RELEASE 13106 13106-1068 1
SHAFT,BEVEL GEAR,FR 13107 13107-1128 1
SHAFT,BEVEL GEAR,FR 13107A 13107-1166 1
CASE-GEAR,BEVEL,FR 14055 14055-1054 1
HOUSING-BEARING,BEVEL 41046 41046-1061 2
HOUSING-BEARING,BEVEL 41046A 41046-1070 2
BOLT 92002 92002-1356 1
BOLT,6X30 92002A 92002-1574 8
BOLT 92002B 92002-1579 4
BOLT 92002C 92002-1580 3
NUT,20M/M 92015 92015-1065 1
NUT,25MM 92015A 92015-1480 1
NUT 92015B 92015-1543 1
WASHER OIL PUMP BANJO 92022 92022-077 1
WASHER,PLAIN,2.3X20.3 92022A 92022-1116 1
WASHER 92022B 92022-1719 2
SHIM,T=0.10 92025 92025-1258 AR
SHIM,T=0.15 92025A 92025-1259 AR
SHIM,T=0.20 92025B 92025-1260 AR
SHIM,T=0.30 92025C 92025-1261 AR
SHIM,T=0.60 92025D 92025-1262 AR
SHIM,T=0,90 92025E 92025-1263 AR
SHIM,T=1.20 92025F 92025-1264 AR
SHIM,52.5X61.5X0.12 92025G 92025-1668 AR
SHIM,52.5X61.5X0.15 92025H 92025-1669 AR
SHIM,52.5X61.5X0.18 92025I 92025-1670 AR
SHIM,52.5X61.5X0.8 92025J 92025-1671 AR
SHIM,52.5X61.5X0.9 92025K 92025-1672 AR
SHIM,52.5X61.5X1.0 92025L 92025-1673 AR
SHIM,52.5X61.5X1.1 92025M 92025-1674 AR
SHIM,52.5X61.5X1.2 92025N 92025-1675 AR
SHIM,52.5X61.5X1.3 92025O 92025-1676 AR
SHIM,52.5X61.5X1.4 92025P 92025-1677 AR
COLLAR 92027 92027-1843 1
PIN-DOWEL 92043 92042-007 2
BEARING-BALL,6205 92045 92045-1115 2
BEARING-BALL,5305SH2C 92045A 92045-1147 2
BRG,N,7E-HK1412 92046 92046-037 1
BEARING-NEEDLE,HK0709 92046A 92046-1142 1
OIL SEAL,TC14244.8 92049 92049-1037 1
OIL SEAL,TC35527 92049A 92049-1038 1
RING-O 92055 92055-1306 2
NOZZLE,OIL BIAS 92062 92062-011 1
PLUG,OIL LINE 92066 92066-1221 1
SPRING 92081 92081-1552 1
"0" RING,21MM 670 670B2021 1
"0" RING,65MM 671 671B2565 2
