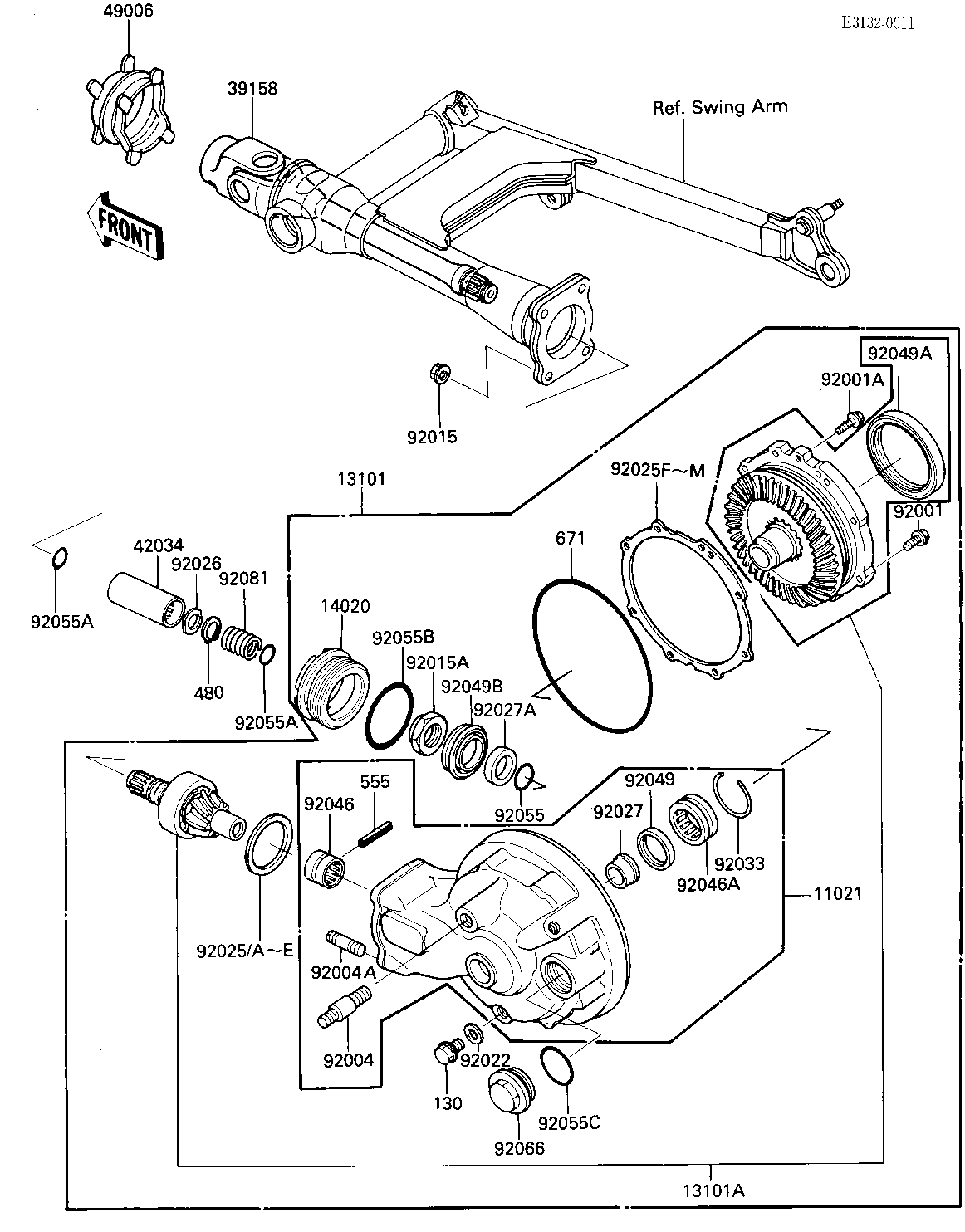

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-ASSY,FINAL GEAR, | 11021 | 11021-1054-F2 | 1 | ||
| GEAR-ASSY,FINAL,M.SIL | 13101 | 13101-1124-7J | 1 | ||
| GEAR-ASSY,FINAL BEVEL | 13101A | 13101-5064 | 1 | ||
| RETAINER | 14020 | 14020-1055 | 1 | ||
| SHAFT-ASSY-DRIVE | 39158 | 39158-1052 | 1 | ||
| COUPLING,DRIVE SHAFT, | 42034 | 42034-1035 | 1 | ||
| BOOT,PROPELLER SHAFT | 49006 | 49006-1173 | 1 | ||
| BOLT,8X28 | 92001 | 92001-1095 | 6 | ||
| BOLT,10X24 | 92001A | 92001-1110 | 2 | ||
| STUD,RR SHOCKABSORBER | 92004 | 92004-1047 | 1 | ||
| STUD | 92004A | 92004-1159 | 4 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1408 | 4 | ||
| NUT,25MM | 92015A | 92015-1241 | 1 | ||
| WASHER | 92022 | 92022-1086 | 1 | ||
| SHIM,50X61X0.10 | 92025 | 92025-1519 | AR | ||
| SHIM,50X61X0.15 | 92025A | 92025-1520 | AR | ||
| SHIM,50X61X0.20 | 92025B | 92025-1521 | AR | ||
| SHIM,50X61X0.30 | 92025C | 92025-1522 | AR | ||
| SHIM,50X61X0.40 | 92025D | 92025-1523 | AR | ||
| SHIM,50X61X0.50 | 92025E | 92025-1524 | AR | ||
| SHIM,T=0.15 | 92025F | 92025-1525 | AR | ||
| SHIM,T=0.50 | 92025G | 92025-1526 | AR | ||
| SHIM,T=0.60 | 92025H | 92025-1527 | AR | ||
| SHIM,T=0.70 | 92025I | 92025-1528 | AR | ||
| SHIM,T=0.80 | 92025J | 92025-1529 | AR | ||
| SHIM,T=0.90 | 92025K | 92025-1530 | AR | ||
| SHIM,T=1.00 | 92025L | 92025-1531 | AR | ||
| SHIM,T=1.20 | 92025M | 92025-1532 | AR | ||
| SPACER,DRIVE SHAFT | 92026 | 92026-1129 | 1 | ||
| COLLAR | 92027 | 92027-1412 | 1 | ||
| COLLAR | 92027A | 92027-1937 | 1 | ||
| RING-SNAP,50.4MM | 92033 | 92033-1187 | 1 | ||
| BEARING-NEEDLE,NK22/2 | 92046 | 92046-1131 | 1 | ||
| BEARING-NEEDLE,NK35/2 | 92046A | 92046-1132 | 1 | ||
| SEAL-OIL,S3141 5.5 | 92049 | 92049-1210 | 1 | ||
| SEAL-OIL,S75 9510 | 92049A | 92049-1212 | 1 | ||
| SEAL-OIL | 92049B | 92049-1234 | 1 | ||
| "O" RING | 92055 | 92055-035 | 1 | ||
| "0" RING,I.D=18.64MM | 92055A | 92055-1044 | 2 | ||
| RING-O,61.6MM | 92055B | 92055-1280 | 1 | ||
| RING-O,35.8MM | 92055C | 92055-1281 | 1 | ||
| PLUG,OIL FILLER CAP,M | 92066 | 92066-1006-7J | 1 | ||
| SPRING,DRIVE SHAFT | 92081 | 92081-1717 | 1 | ||
| BOLT-FLANGED | 130 | 130X0812 | 1 | ||
| CIRCLIP 16MM | 480 | 480J1600 | 1 | ||
| PIN-SPRING | 555 | 555A0428 | 1 | ||
| O RING | 671 | 671B25145 | 1 |
