Parts Diagrams |

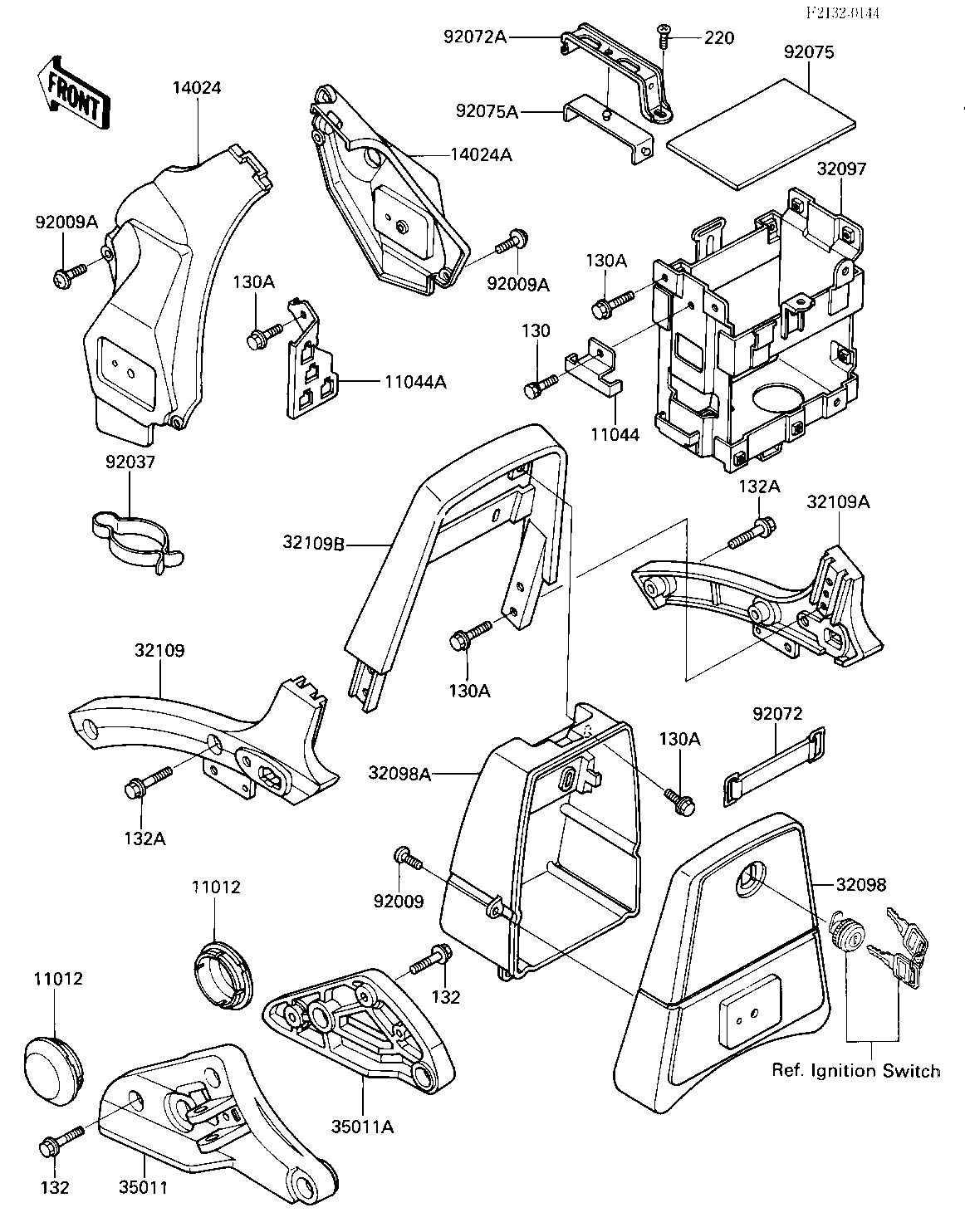

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,SWING ARM | 11012 | 11012-1433 | 2 | ||
BRACKET,JOINT BOX | 11044 | 11043-1934 | 1 | ||
BRACKET,HARNESS | 11044A | 11043-1935 | 1 | ||
COVER,FUEL TANK,LH | 14024 | 14025-1994 | 1 | ||
COVER,FUEL TANK,RH | 14024A | 14025-1995 | 1 | ||
CASE-BATTERY | 32097 | 32097-1121 | 1 | ||
CASE-TOOL | 32098 | 32098-1057 | 1 | ||
CASE-TOOL | 32098A | 32098-1058 | 1 | ||
GRIP-FRAME,LWR,LH | 32109 | 32109-1122 | 1 | ||
GRIP-FRAME,LWR,RH | 32109A | 32109-1123 | 1 | ||
GRIP-FRAME,UPP | 32109B | 32109-1124 | 1 | ||
STAY,MUFFLER,LH | 35011 | 35011-1239 | 1 | ||
STAY,MUFFLER,RH | 35011A | 35011-1240 | 1 | ||
SCREW,TAPPING,5X16 | 92009 | 92009-1264 | 4 | ||
SCREW,6X14 | 92009A | 92009-1288 | 4 | ||
CLAMP,CABLE | 92037 | 92037-093 | 1 | ||
BAND-SPARK PLUG COVER | 92072 | 92072-053 | 1 | ||
BAND,BATTERY | 92072A | 92072-1177 | 1 | ||
DAMPER,BATTERY BASE | 92075 | 92075-1076 | 1 | ||
DAMPER,BATTERY BAND | 92075A | 92075-1371 | 1 | ||
BOLT,FLANGED,6X8 | 130 | 130B0608 | 1 | ||
BOLT-FLANGED | 130A | 130D0612 | 10 | ||
BOLT-FLANGED-SMALL | 132 | 132E0830 | 4 | ||
BOLT-FLANGED-SMALL | 132A | 132E0835 | 4 | ||
SCREW PAN HEAD 6X12 | 220 | 220B0612 | 1 |
CAP,SWING ARM | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,JOINT BOX | |
REF # | 11044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,HARNESS | |
REF # | 11044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FUEL TANK,LH | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FUEL TANK,RH | |
REF # | 14024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-BATTERY | |
REF # | 32097 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-TOOL | |
REF # | 32098 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-TOOL | |
REF # | 32098A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP-FRAME,LWR,LH | |
REF # | 32109 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP-FRAME,LWR,RH | |
REF # | 32109A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP-FRAME,UPP | |
REF # | 32109B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,MUFFLER,LH | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,MUFFLER,RH | |
REF # | 35011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,CABLE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-SPARK PLUG COVER | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,BATTERY | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,BATTERY BASE | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,BATTERY BAND | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X8 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X12 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
