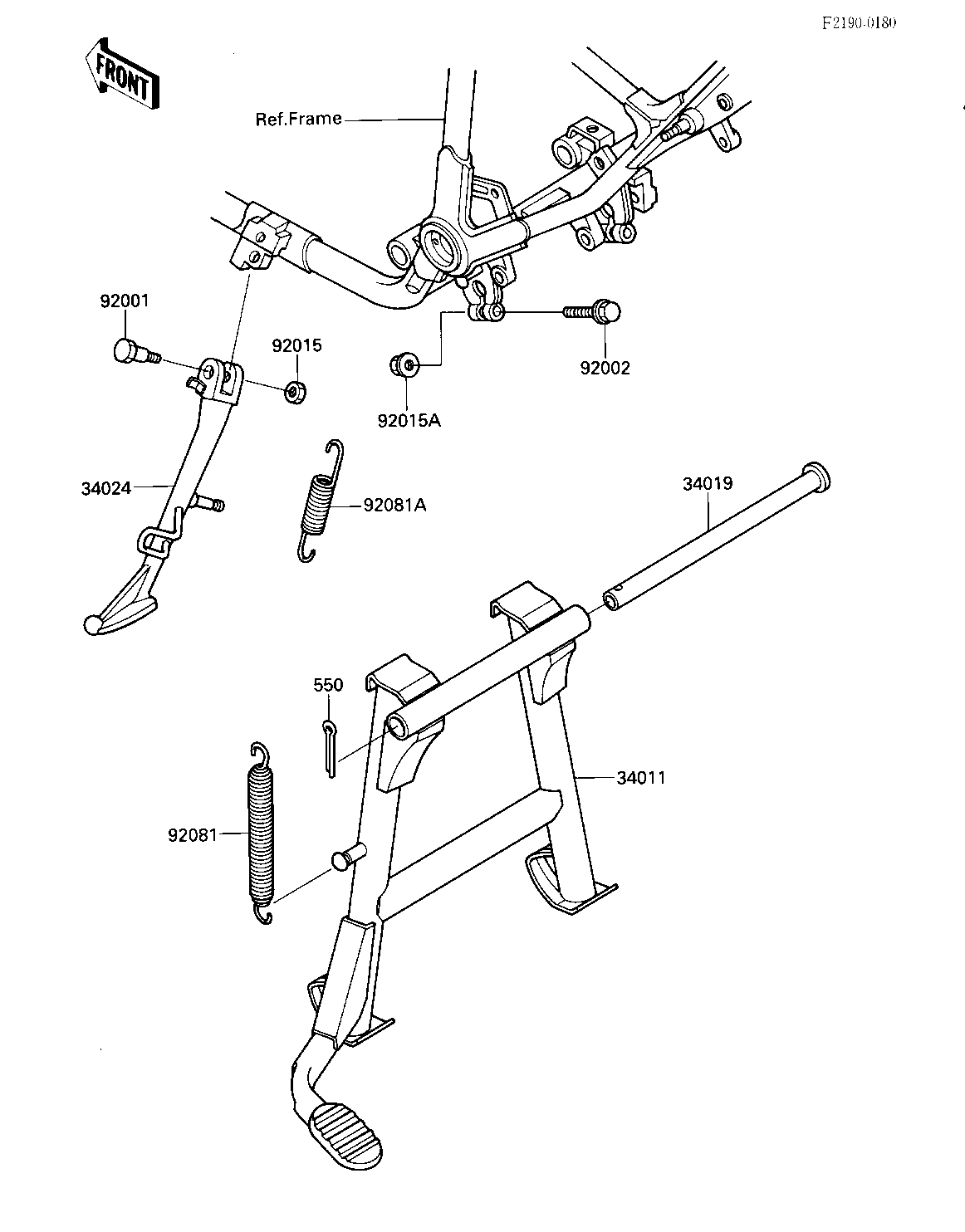

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-CENTER 34011 34011-1118 1
SHAFT-STAND 34019 34019-1051 1
STAND-SIDE 34024 34024-1185 1
BOLT,8X160,BLACK 92001 92001-1543 1
BOLT,FLANGED,8X40 92002 92002-1113 2
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
NUT,FLANGED,8MM 92015A 92015-1409 2
SPRING,MAIN STAND 92081 34023-012 1
SPRING,SIDE STAND 92081A 92081-1894 1
PIN COTTER 3.0X30 550 550D3030 1
