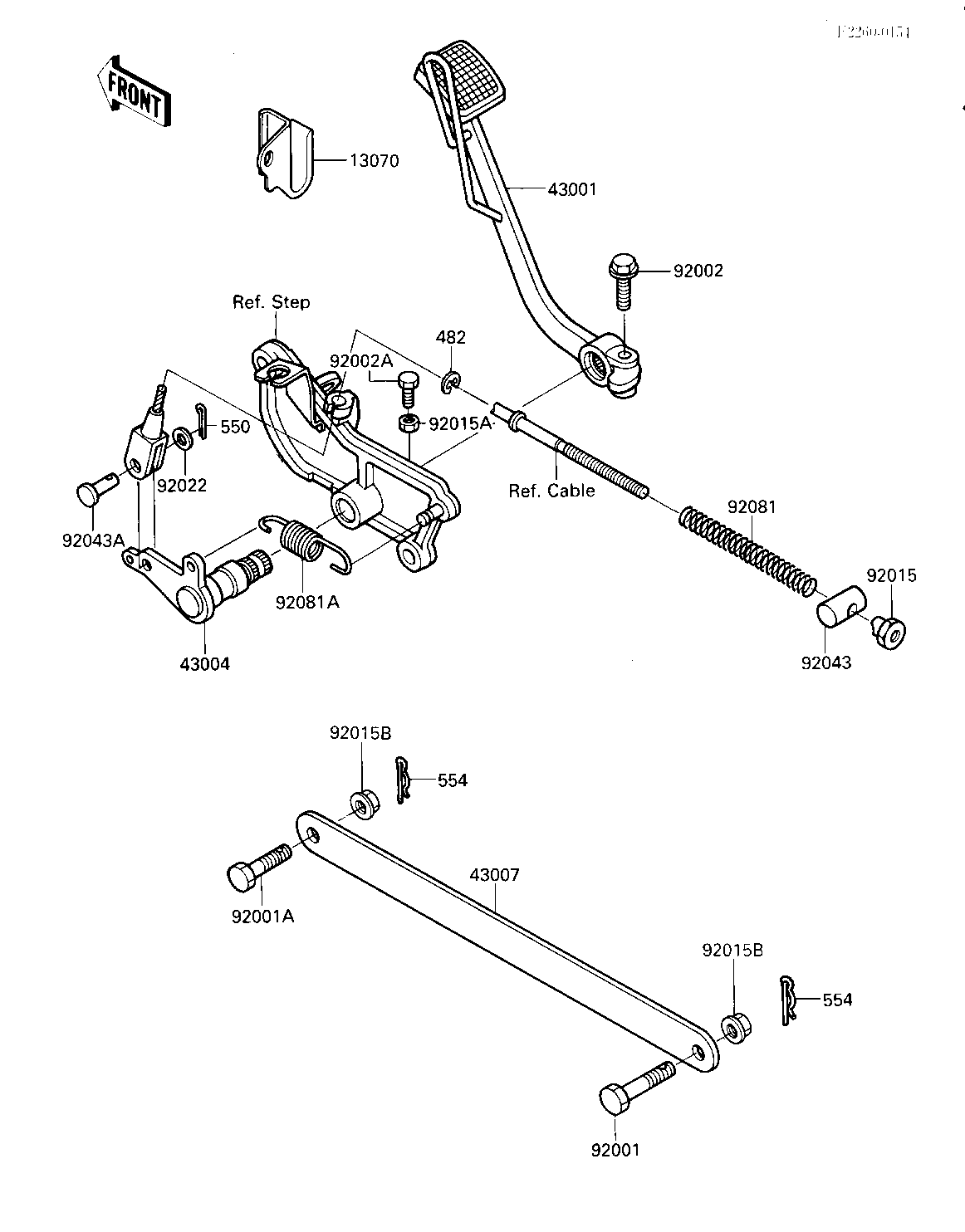

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,CABLE 13070 13070-1134 1
LEVER-BRAKE,PEDAL 43001 43001-1176 1
SHAFT-BRAKE 43004 43004-1109 1
ROD-TORQUE 43007 43007-1112 1
BOLT 92001 92001-1519 1
BOLT 92001A 92003-096 1
BOLT,FLANGED,8X25 92002 92002-1201 1
BOLT,6X20 92002A 92002-1373 1
NUT-BRAKE ROD ADJUST 92015 92015-042 1
NUT,6MM 92015A 92015-1391 1
NUT,FLANGED,10MM 92015B 92015-1428 2
WASHER PLAIN 8MM 92022 410B0800 1
PIN-BRAKE ROD 92043 92043-065 1
PIN 92043A 92043-1013 1
SPRING,BRAKE ROD 92081 43012-001 1
SPRING,BRAKE PEDAL 92081A 92081-1845 1
CIRCLIP,6M/M 482 482K6000 1
PIN COTTER 2.0X15 550 550D2015 1
PIN,SNAP 554 554A0800 2
