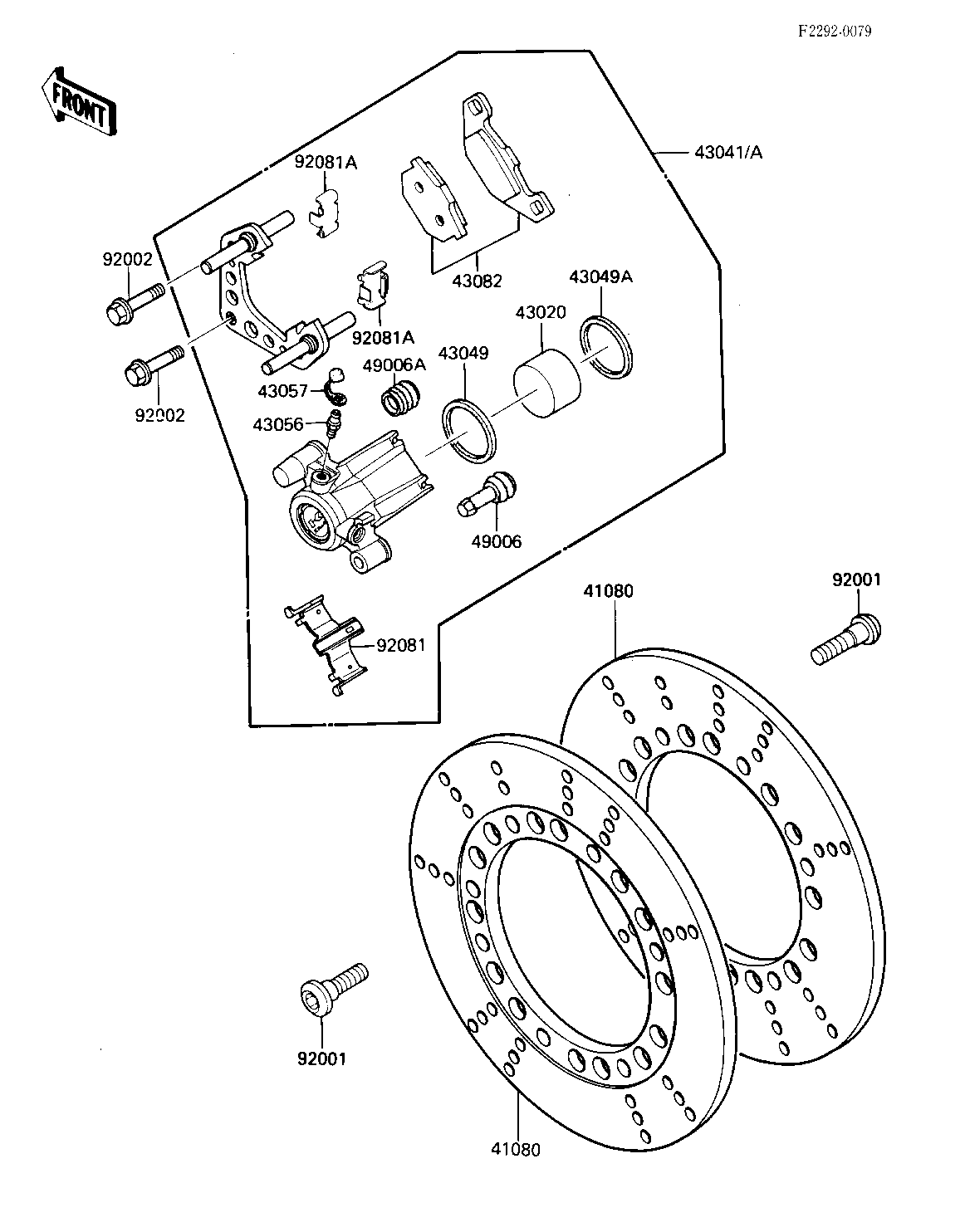

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,SILVER 41080 41080-1130 2
PISTON-COMP-BRAKE 43020 43020-1066 2
CALIPER-ASSY,FR,LH 43041 43041-1348 1
CALIPER-ASSY,FR,RH 43041A 43041-1349 2
RING,PISTON SEAL 43049 43049-002 2
PACKING,PISTON 43049A 43049-1028 2
BREEDER 43056 43056-003 2
CAP,BREEDER 43057 43057-003 2
PAD-ASSY-BRAKE 43082 43082-1062 2
BOOT,CALIPER 49006 49006-1094 2
BOOT,CALIPER 49006A 49006-1095 2
BOLT,SOCKET,8X30 92001 92001-1951 14
BOLT,FLANGED,10X41 92002 92002-1468 4
SPRING,PAD 92081 92081-1525 2
SPRING,PAD STOPPER 92081A 92081-1661 4
