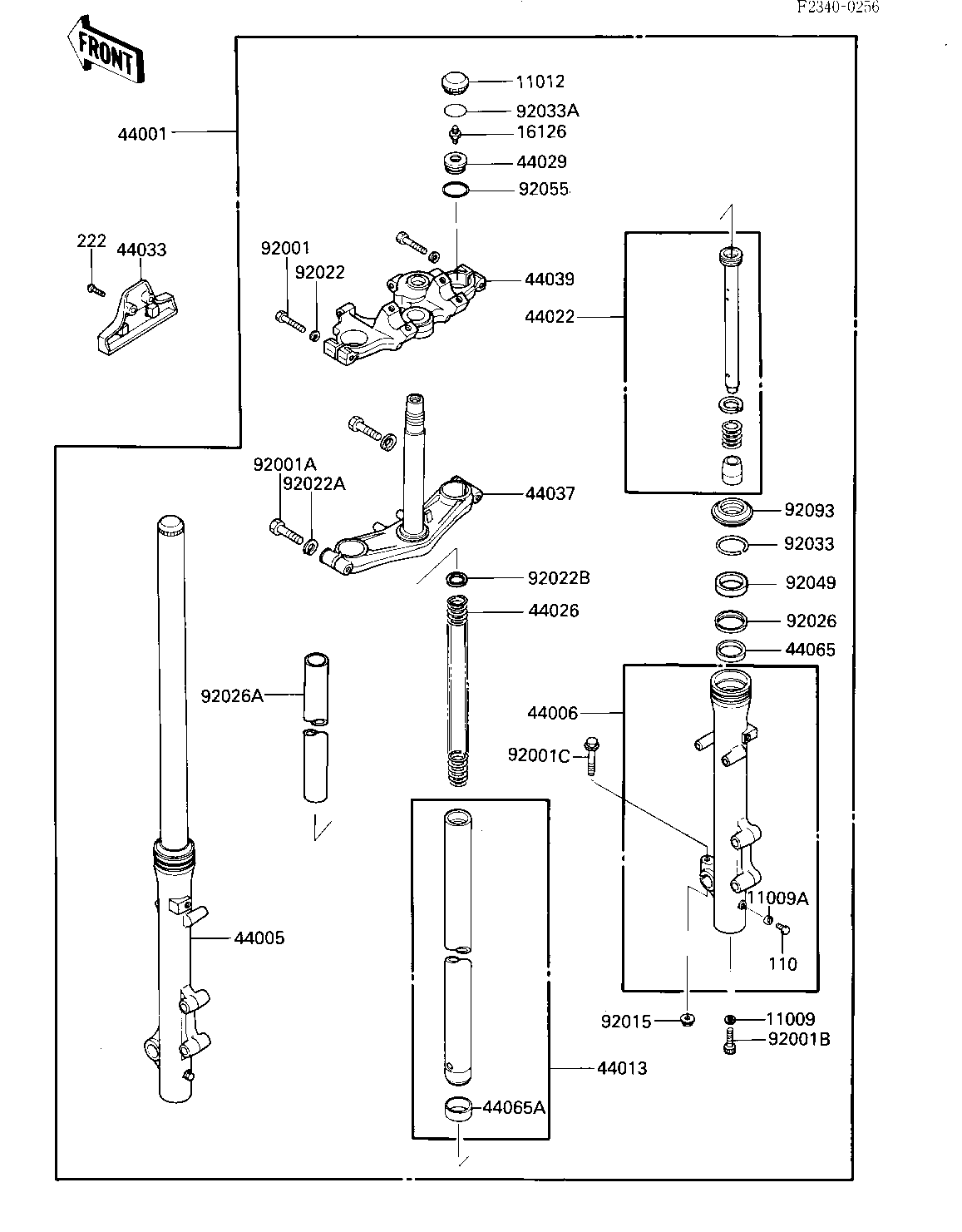

1985 LTD - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYL BOLT 11009 44045-051 2
GASKET,DRAIN PLUG 11009A 44045-047 2
CAP,FORK TOP 11012 11012-1473 2
VALVE,AIR 16126 16126-1105 2
FORK-FRONT 44001 44001-1574 1
PIPE-LEFT FORK OUTER 44005 44005-1231 1
PIPE-RIGHT FORK OUTER 44006 44006-1231 1
PIPE-FORK INNER 44013 44013-1230 2
CYLINDER-FORK 44022 44022-1180 2
SPRING-FRONT FORK,K=0 44026 44026-1301 2
SEAT-FORK SPRING 44029 44029-1120 2
COVER-FORK 44033 44033-1166 1
HOLDER-FORK UNDER 44037 44037-1195 1
HOLDER-FORK UPPER 44039 44039-1117 1
BUSHING-FRONT FORK 44065 44065-1070 2
BUSHING-FRONT FORK,IN 44065A 44065-1071 2
BOLT,HEX HEAD,8X40 92001 92001-1063 2
BOLT 92001A 92001-1454 2
BOLT,FORK DRAIN 92001B 92001-1464 2
BOLT,FLANGED,8X50 92001C 92001-1486 1
NUT,8MM 92015 92015-1055 1
WASHER,SPRING,8MM 92022 92022-1703 2
WASHER,SPRING,10MM 92022A 92022-1704 2
WASHER,SPRING SEAT 92022B 92022-1713 2
SPACER,FORK 92026 92026-1254 2
SPACER,FRONT FORK SPR 92026A 92026-1255 2
RING-SNAP,FORK 92033 92033-1200 2
RING-SNAP 92033A 92033-1201 2
SEAL-OIL,FORK 92049 92049-1230 2
RING-O,FORK SPRING SE 92055 92055-1309 2
SEAL,FORK 92093 92093-1197 2
BOLT HEX HEAD 6X8 110 110B0608 2
SCREW-CSK-RD-CROS 222 222C0520 2
