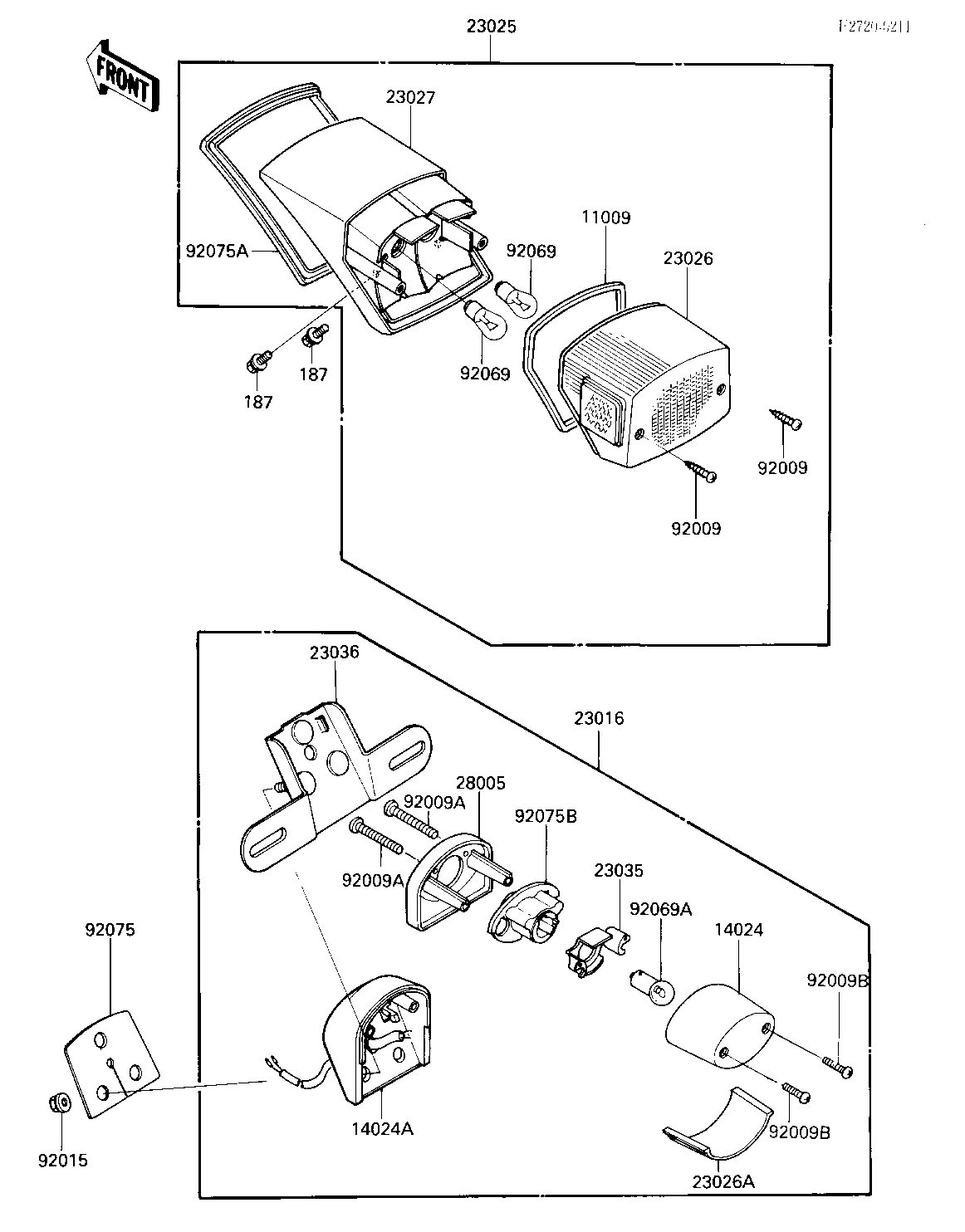

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TAIL LAMP | 11009 | 11009-1496 | 1 | ||
COVER,LICENSE LAMP | 14024 | 14025-1725 | 1 | ||
COVER,LICENSE LAMP | 14024A | 14025-1728 | 1 | ||
LAMP-ASSY,LICENSE | 23016 | 23016-1061 | 1 | ||
LAMP-TAIL | 23025 | 23025-1116 | 1 | ||
LENS,TAIL LAMP | 23026 | 23026-1063 | 1 | ||
LENS,LICENSE LAMP | 23026A | 23026-1064 | 1 | ||
BODY-COMP-TAIL LAMP | 23027 | 23027-1060 | 1 | ||
REFLECTOR-LAMP,LICENS | 23035 | 23035-1060 | 1 | ||
BRACKET-TAIL LAMP | 23036 | 23036-1104 | 1 | ||
BODY-LAMP,LICENSE | 28005 | 28005-1051 | 1 | ||
SCREW,TAPPING,4X25 | 92009 | 92009-1069 | 2 | ||
SCREW,TAPPING,5X40 | 92009A | 92009-1263 | 2 | ||
SCREW,TAPPING,5X40 | 92009B | 92009-1378 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 3 | ||
BULB,12V 32/3CP | 92069 | 92069-059 | 2 | ||
BULB,12V 4CP | 92069A | 92069-1012 | 1 | ||
DAMPER,LICENSE LAMP | 92075 | 92075-1676 | 1 | ||
DAMPER,TAIL LAMP | 92075A | 92075-1692 | 1 | ||
DAMPER,LICENSE LAMP | 92075B | 92075-1694 | 1 | ||
BOLT 6X14 | 187 | 187B0614 | 3 |
GASKET,TAIL LAMP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,LICENSE LAMP | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,LICENSE LAMP | |
REF # | 14024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY,LICENSE | |
REF # | 23016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-TAIL | |
REF # | 23025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,TAIL LAMP | |
REF # | 23026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,LICENSE LAMP | |
REF # | 23026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-TAIL LAMP | |
REF # | 23027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
REFLECTOR-LAMP,LICENS | |
REF # | 23035 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-TAIL LAMP | |
REF # | 23036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-LAMP,LICENSE | |
REF # | 28005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X25 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X40 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X40 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BULB,12V 32/3CP | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 4CP | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,LICENSE LAMP | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,TAIL LAMP | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,LICENSE LAMP | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT 6X14 | |
REF # | 187 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
