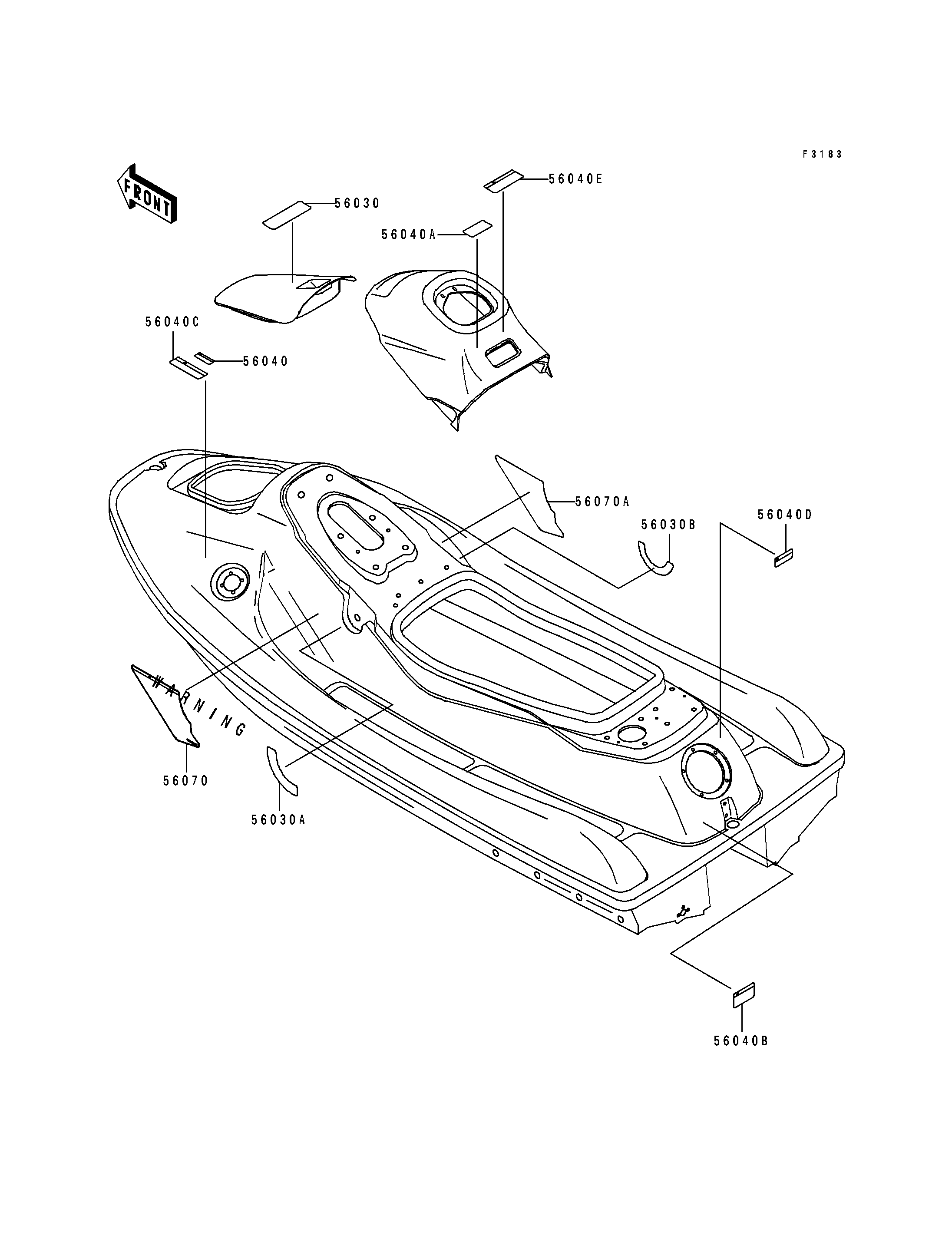

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,FIRE EXTINGUISHER 56030 56030-3790 1
LABEL,CHOKE 56030A 56030-3793 1
LABEL,FUEL 56030B 56030-3794 1
LABEL-WARNING,FUEL CAUTION 56040 56040-3906 1
LABEL-WARNING,TETHER SWITCH 56040A 56040-3970 1
LABEL-WARNING,JET PUMP 56040B 56040-3971 1
LABEL-WARNING,GASOLINE 56040C 56040-3972 1
LABEL-WARNING,GRAB HANDLE 56040D 56040-3973 1
LABEL-WARNING,OVERHEAT 56040E 56040-3974 1
LABEL-WARNING,IMPORTANT SAFETY 56070 56070-3752 1
LABEL-WARNING,IMPORTANT SAFETY 56070A 56070-3753 1
