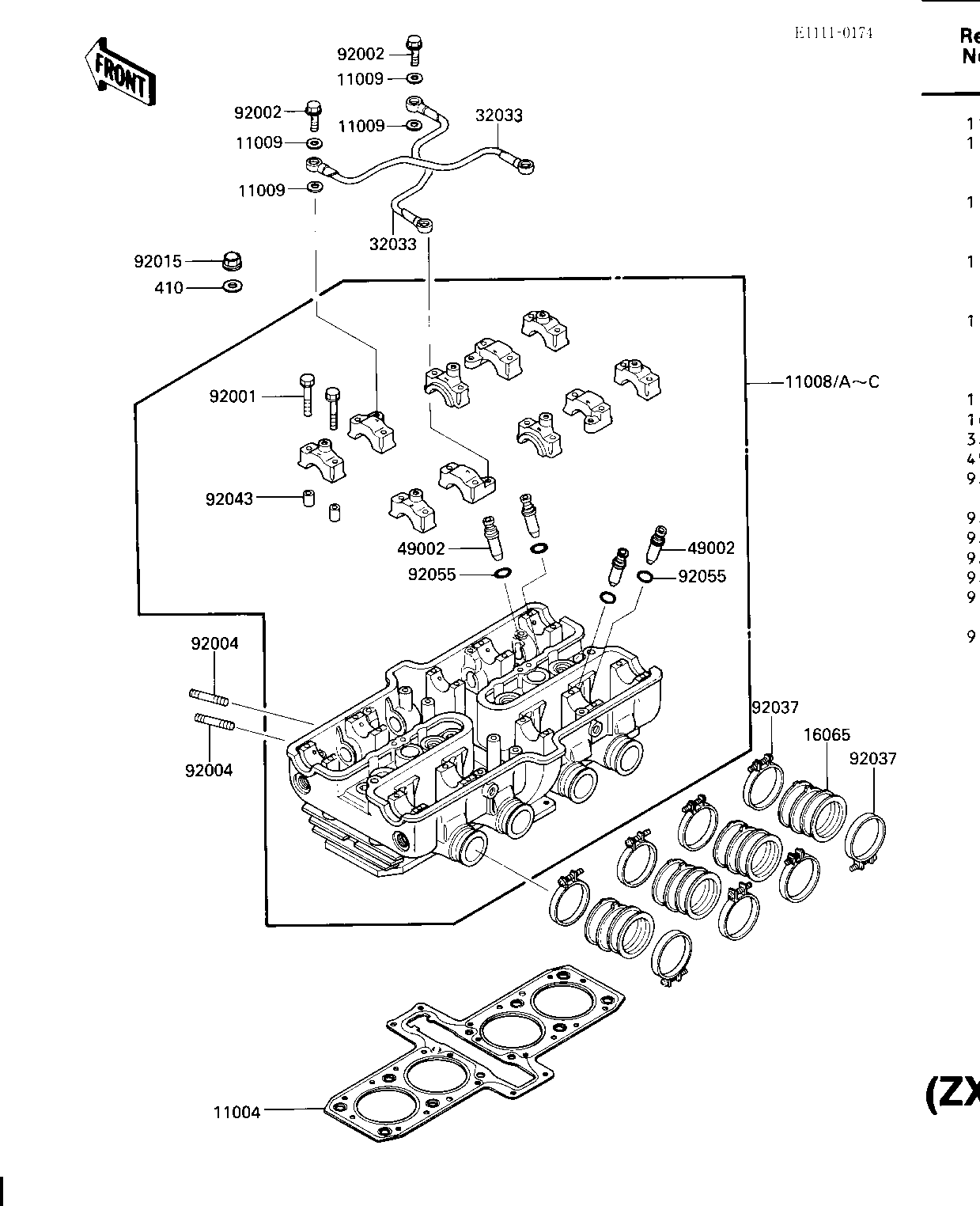

1986 Ninja® 600 - CYLINDER HEAD (ZX600-A1) (-E/NO.023371)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1132 1
HEAD-COMP-CYLINDER 11008 11008-5004 1 CA,US
11008-5005 (Canada) 11008A 11008-1167 1 CN
HEAD-COMP-CYLINDER 11008B 11008-1168 1 CA,US
11008-5005 (Canada) 11008C 11008-1169 1 CN
GASKET,OIL PIPE,8.2X1 11009 11009-1344 8
HOLDER-CARBURETOR 16065 16065-1129 4
PIPE 32033 32033-1902 2
GUIDE-VALVE 49002 49002-1060 16
BOLT,FLANGED,6X38 92001 92001-1105 20
BOLT,BANJO,8X20 92002 92001-1855 4
STUD,6X27 92004 92004-066 8
NUT,CAP,8MM 92015 92015-1151 12
CLAMP 92037 92037-1326 8
PIN,DOWEL,6.2X8X14 92043 92043-1263 20
RING-O,VALVE GUIDE 92055 92055-1177 16
WASHER PLAIN 8MM 410 410B0800 12
