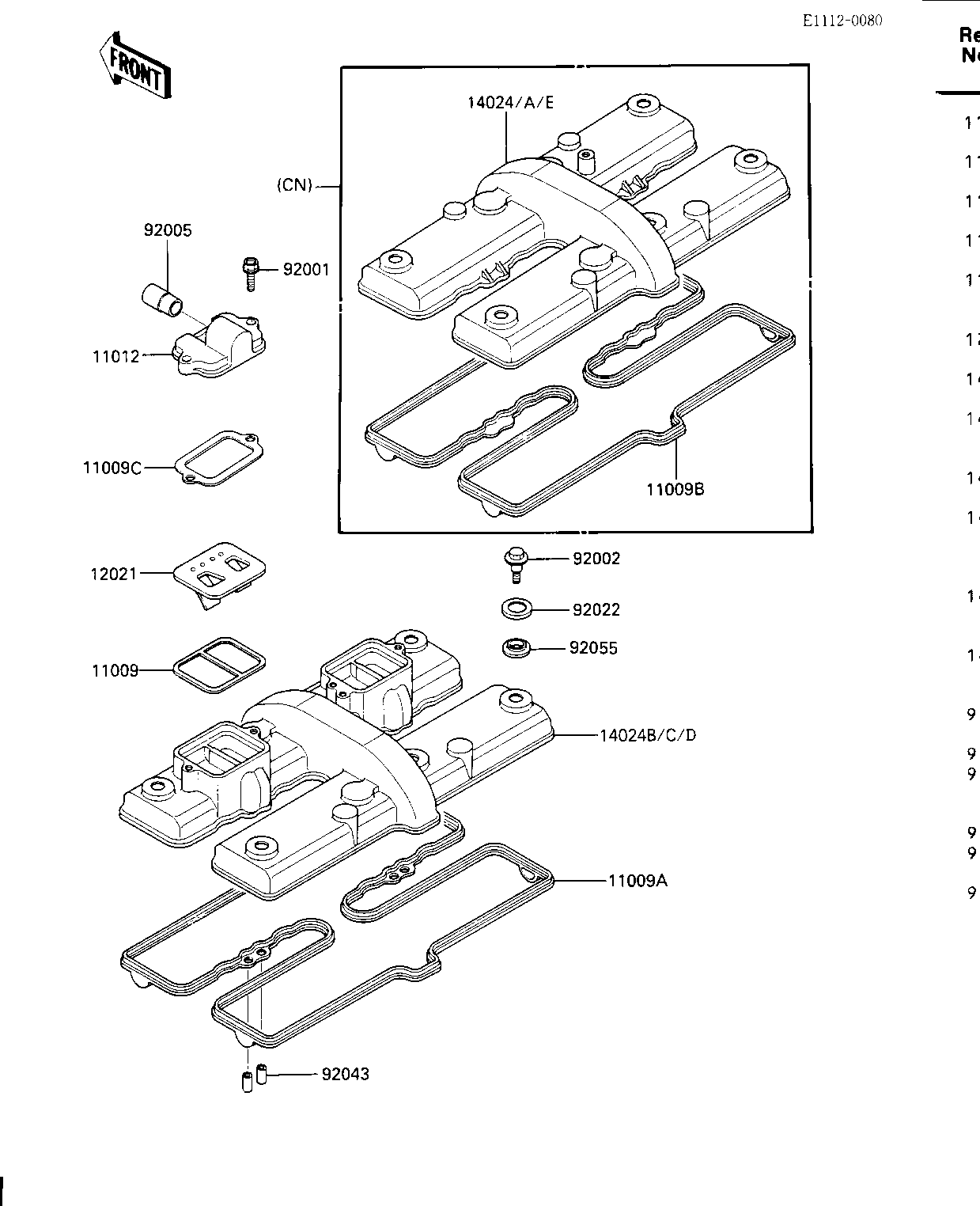

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11009 11009-1905 2 CA,US
GASKET,CYLINDER HEAD 11009A 11009-1497 1 CA,US
GASKET,CYLINDER HEAD COVE (Can 11009B 11009-1498 1 CN
GASKET 11009C 11009-1545 2 CA,US
CAP,REED VALVE 11012 11012-1481 2 CA,US
VALVE-ASSY-REED 12021 12021-1053 2 CA,US
COVER,CYLINDER HEAD (Canada) 14024 14024-1142 1 CN
COVER,CYLINDER HEAD 14024B 14024-1144 1 CA,US
BOLT,FLANGED,6X22 92001 92001-1352 4 CA,US
BOLT 92002 92150-1447 6
FITTING, REED VALVE 92005 92005-1006 2 CA,US
WASHER,HEAD COVER BOL 92022 92022-1637 6
PIN,DOWEL,6.2X8X14 92043 92043-1263 4 CA,US
RING-O,HEAD COVER BOL 92055 92055-1225 6
