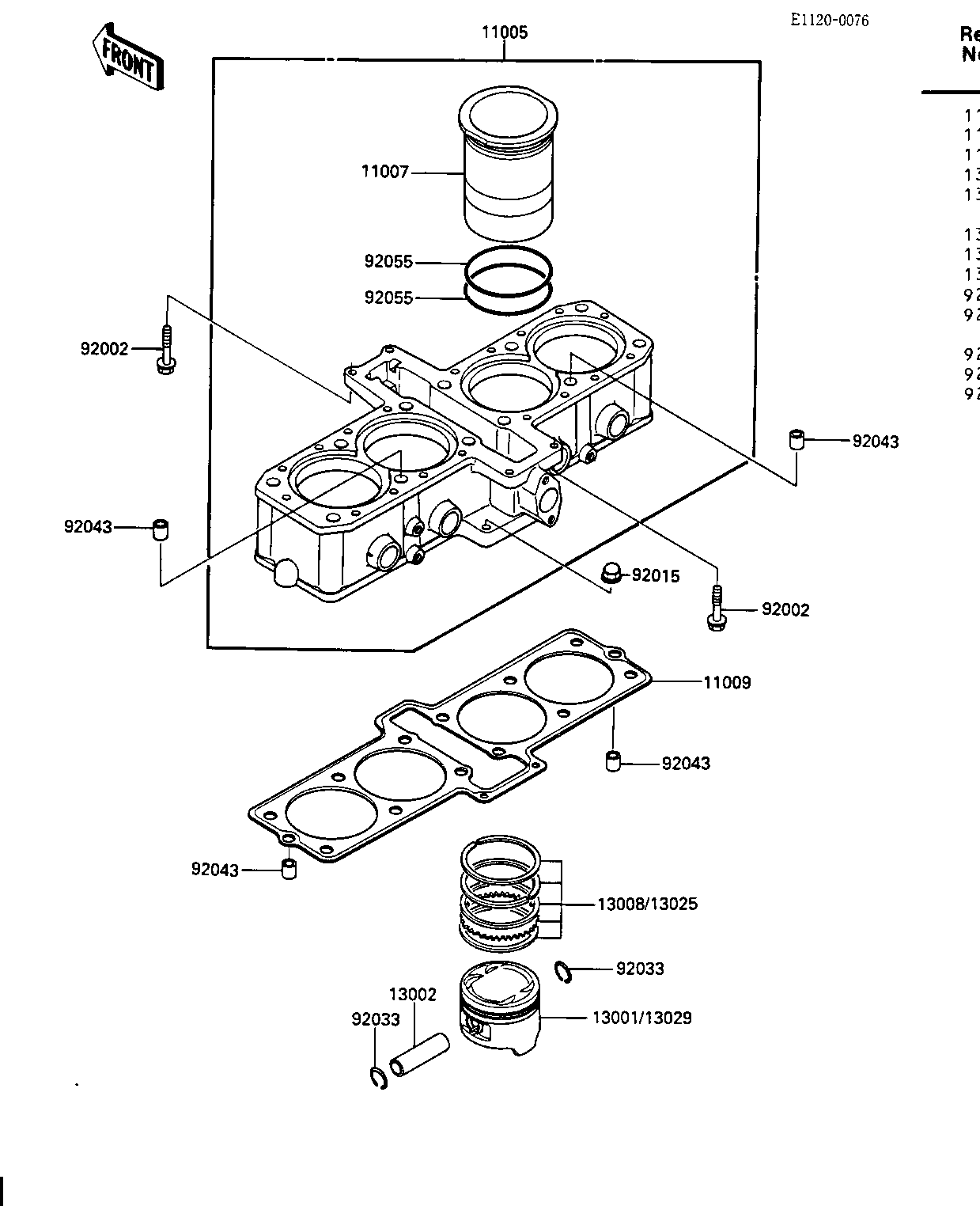

1986 Ninja® 600 - CYLINDER/PISTONS (E/NO.037153-)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1493 1
LINER-CYLINDER 11007 11007-1086 4
GASKET,CYLINDER BASE 11009 11009-1578 1
PISTON-ENGINE,STD 13001 13001-1233 4
PIN-PISTON 13002 13002-1057 4
RING-SET-PISTON,STD 13008 13008-1074 4
RING-SET-PISTON L,O/S 13025 13025-1072 4
PISTON-ENGINE L,O/S 0 13029 13029-1149 4
BOLT,6X28 92002 92002-1104 4
NUT,CAP 6MM,BLACK 92015 92015-1170 2
RING-SNAP,PISTON PIN 92033 92033-1151 8
PIN,DOWEL,8.2X10X14 92043 92043-1264 4
RING-O,66.5MM 92055 92055-1287 8
