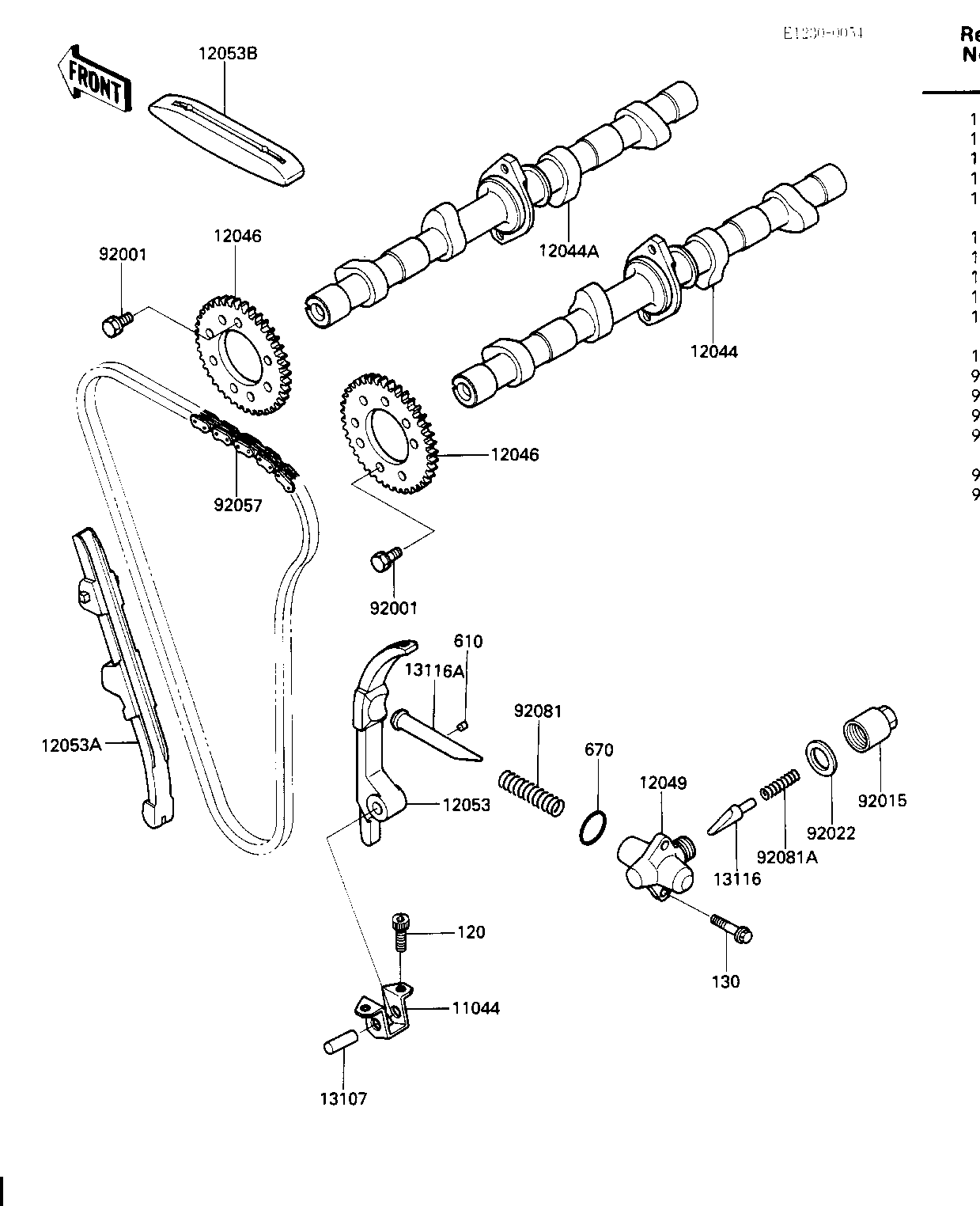

1986 Ninja® 600 - CAMSHAFTS/CHAIN/TENSIONER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,CHAIN GUIDE | 11044 | 11044-1079 | 1 | ||
CAMSHAFT-VALVE,INTAKE | 12044 | 12044-1203 | 1 | ||
CAMSHAFT-VALVE,EXHAUS | 12044A | 12044-1204 | 1 | ||
SPROCKET,CAMSHAFT,42T | 12046 | 12046-1078 | 2 | ||
TENSIONER,CAM CHAIN | 12049 | 12049-1009 | 1 | ||
GUIDE-CHAIN,RR | 12053 | 12053-1158 | 1 | ||
GUIDE-CHAIN,FR | 12053A | 12053-1159 | 1 | ||
GUIDE-CHAIN,HEAD | 12053B | 12053-1160 | 1 | ||
SHAFT,L=24.5 | 13107 | 13107-1142 | 1 | ||
ROD,PUSH,CAM CHAIN | 13116 | 13116-1012 | 1 | ||
ROD,PUSH,CAM CHAIN | 13116A | 13116-1020 | 1 | ||
BOLT,SPROCKET FITTING | 92001 | 92003-208 | 4 | ||
CAP,TENSIONER,18M/M | 92015 | 92015-1100 | 1 | ||
WASHER,18.3X24X1.4T | 92022 | 92022-1175 | 1 | ||
CHAIN,CAMSHAFT,82RH20 | 92057 | 92057-1190 | 1 | ||
SPRING,TENSIONER | 92081 | 92081-1075 | 1 | ||
SPRING,TENSIONER | 92081A | 92081-1302 | 1 | ||
BOLT,ALLEN,6X18 | 120 | 120P0618 | 2 | ||
BOLT-FLANGED | 130 | 130Y0625 | 2 | ||
PIN DOWEL 4X8 | 610 | 610A0408 | 1 | ||
"0" RING,21MM | 670 | 670B2021 | 1 |
BRACKET,CHAIN GUIDE | |
REF # | 11044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,INTAKE | |
REF # | 12044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,EXHAUS | |
REF # | 12044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET,CAMSHAFT,42T | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TENSIONER,CAM CHAIN | |
REF # | 12049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,HEAD | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,L=24.5 | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,PUSH,CAM CHAIN | |
REF # | 13116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,PUSH,CAM CHAIN | |
REF # | 13116A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SPROCKET FITTING | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CAP,TENSIONER,18M/M | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,18.3X24X1.4T | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,CAMSHAFT,82RH20 | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,TENSIONER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,TENSIONER | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,ALLEN,6X18 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN DOWEL 4X8 | |
REF # | 610 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,21MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
