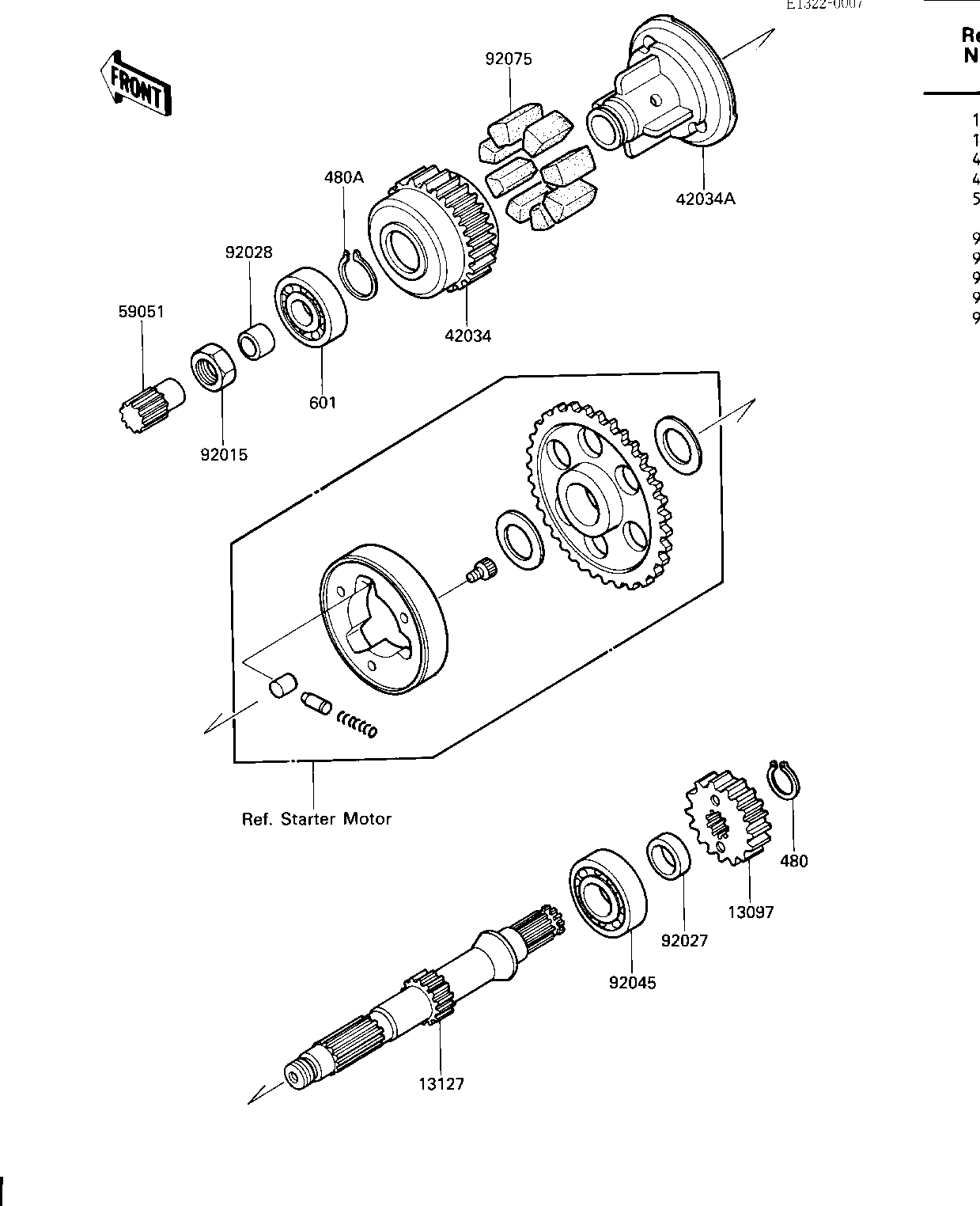

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-PRIMARY SPUR,28T 13097 13097-1141 1
SHAFT-TRANSMISSION IN 13127 13127-1123 1
COUPLING,OUTER 42034 42034-1004 1
COUPLING,INNER 42034A 42034-1005 1
GEAR-SPUR,10T 59051 59051-1137 1
NUT 20MM 92015 92016-028 1
COLLAR 92027 92027-1438 1
BUSHING,SECONDARY 92028 92028-1037 1
BEARING,BALL,#63/22X 92045 92045-1017 1
DAMPER RUBBER,COUPLNG 92075 92075-1070 8
CIRCLIP,22MM 480 480J2200 1
CIRCLIP 28MM 480A 480J2800 1
BEARING BALL #6205 601 601B6205 1
