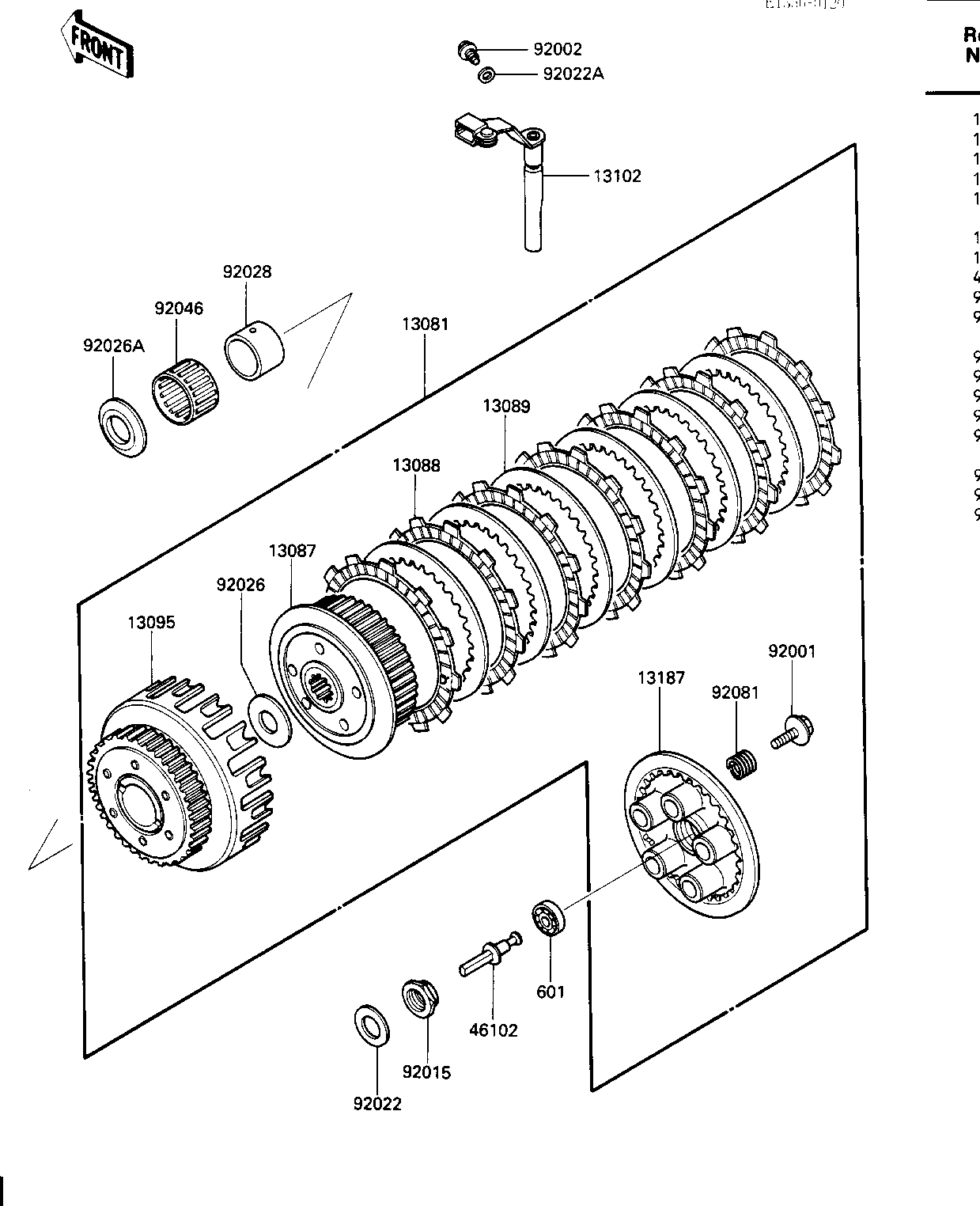

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CLUTCH-ASSY | 13081 | 13081-1198 | 1 | ||
HUB-CLUTCH | 13087 | 13087-1067 | 1 | ||
PLATE,CLUTCH FRICTION | 13088 | 13088-040 | 7 | ||
PLATE,CLUTCH STEEL | 13089 | 13089-026 | 6 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1128 | 1 | ||
RELEASE-COMP-CLUTCH | 13102 | 13102-1072 | 1 | ||
PLATE-CLUTCH OPERATIN | 13187 | 13187-1012 | 1 | ||
ROD,CLUTCH | 46102 | 46102-1146 | 1 | ||
BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
BOLT | 92002 | 92002-1356 | 1 | ||
NUT,20MM | 92015 | 92015-1555 | 1 | ||
WASHER,PLAIN,2.3X20.3 | 92022 | 92022-1116 | 1 | ||
WASHER,PLAIN | 92022A | 92022-304 | 1 | ||
WASHER TH 25.5X47X2.5 | 92026 | 92026-022 | 1 | ||
SPACER,THRUST,T=5.5MM | 92026A | 92026-116 | 1 | ||
BUSHING,CLUTCH | 92028 | 92028-178 | 1 | ||
BEARING,KTV323723 | 92046 | 92046-028 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-139 | 5 | ||
BEARING-BALL | 601 | 92045-1235 | 1 |
CLUTCH-ASSY | |
REF # | 13081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB-CLUTCH | |
REF # | 13087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,CLUTCH FRICTION | |
REF # | 13088 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
PLATE,CLUTCH STEEL | |
REF # | 13089 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
HOUSING-COMP-CLUTCH | |
REF # | 13095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-COMP-CLUTCH | |
REF # | 13102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH OPERATIN | |
REF # | 13187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,CLUTCH | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH SPR FITT | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,20MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,PLAIN,2.3X20.3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER TH 25.5X47X2.5 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,THRUST,T=5.5MM | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,CLUTCH | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING,KTV323723 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
