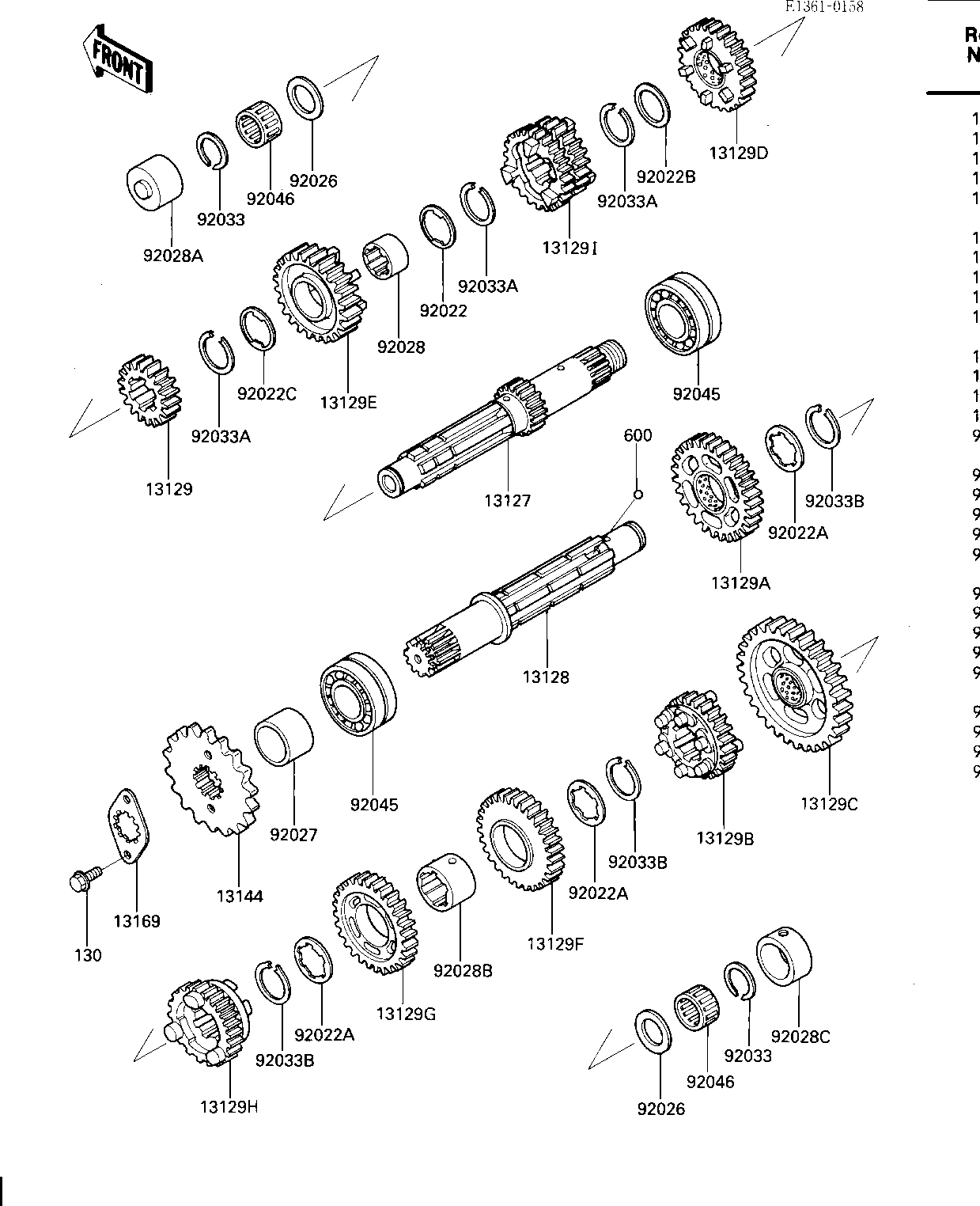

1986 Ninja® 600 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DRIVE,14T 13127 13127-1008 1
SHAFT-TRANSMISSION OU 13128 13128-1119 1
2ND GEAR,DRIVE SHAFT 13129 13129-1077 1
2ND GEAR,OUTPUT,32T 13129A 13129-1078 1
5TH GEAR,OUTPUT,25T 13129B 13129-1083 1
GEAR,OUTPUT LOW,36T 13129C 13129-1564 1
GEAR,INPUT 5TH,26T 13129D 13129-1657 1
GEAR,INPUT TOP,27T 13129E 13129-1658 1
GEAR,OUTPUT 3RD,29T 13129F 13129-1659 1
GEAR,OUTPUT 4TH,27T 13129G 13129-1660 1
GEAR,OUTPUT TOP,23T 13129H 13129-1662 1
GEAR INPUT 3RD&4TH,21 13129I 13260-1195 1
SPROCKET-OUTPUT,15T 13144 13144-1117 1
PLATE,SPROCKET 13169 13270-1060 1
WASHER,LOCK,30X1.OT 92022 92022-1072 1
WASHER,LOCK,1.0T 92022A 92022-1139 3
WASHER PLAIN 92022B 92022-161 1
WASHER-LOCK 92022C 92024-033 1
SPACER,20.3X30X2T 92026 92026-1022 2
COLLAR,25X32X23.5L 92027 92027-1106 1
BUSHING,INPUT TOP GEA 92028 92028-1552 1
BUSHING,INPUT SHAFT 92028A 92028-1186 1
BUSHING 92028B 92028-1364 1
BUSHING,OUTPUT SHAFT 92028C 92028-180 1
CIRCLIP 92033 92033-015 2
CIRCLIP 92033A 92033-026 3
SNAP RING,25.9X1.2T 92033B 92033-1037 3
BEARING,BALL 92045 92045-035 2
BEARING,VS20/14A 92046 92046-1030 2
BOLT,FLANGED,6X12 130 130G0612 2
BALL STEEL 5/32' 600 600A0500 3
