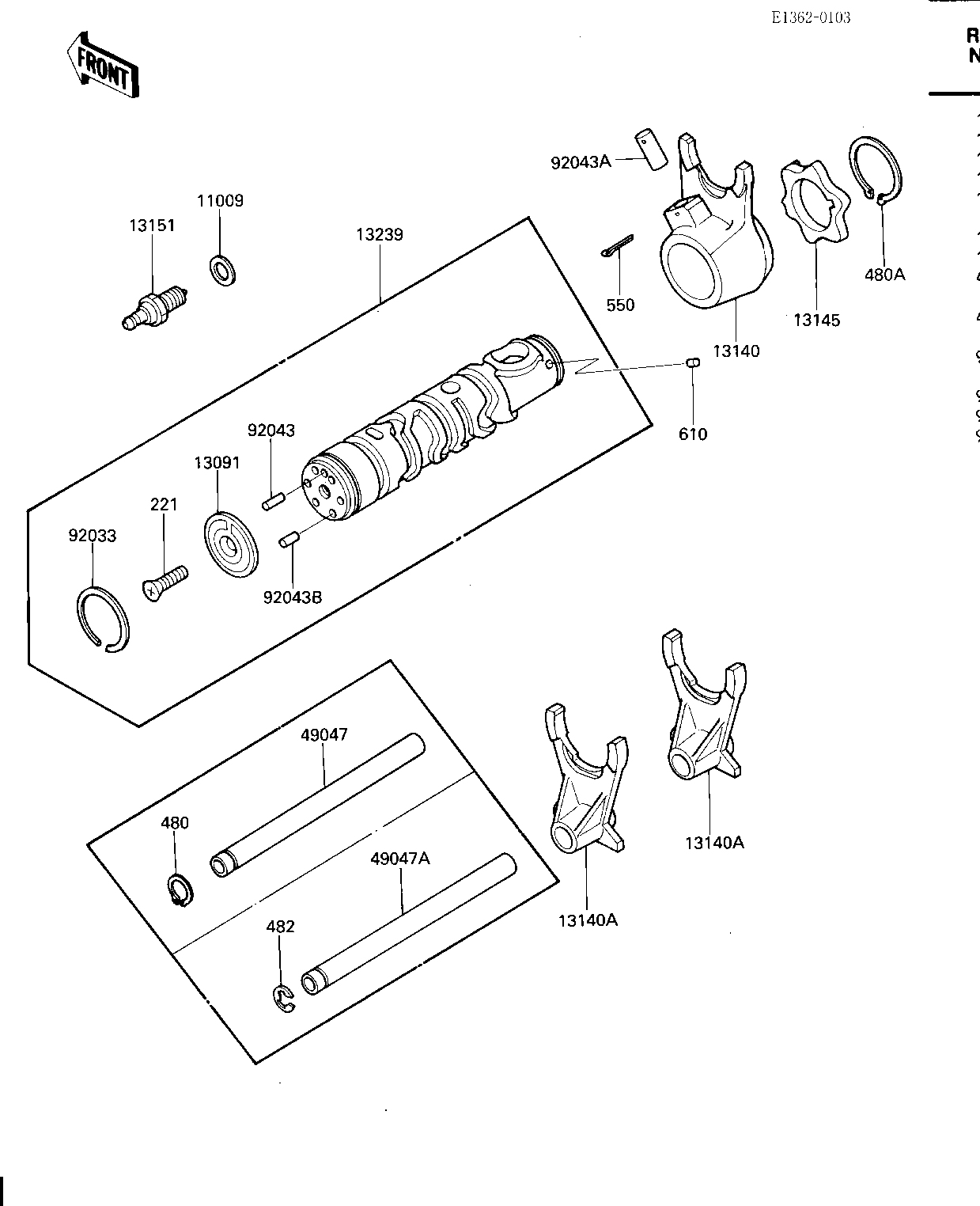

1986 Ninja® 600 - GEAR CHANGE DRUM & FORKS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET CHECK VALVE | 11009 | 92065-058 | 1 | ||
HOLDER,CHANGE DRUM PI | 13091 | 13091-1104 | 1 | ||
SHIFT FORK,GEAR SHIFT | 13140 | 13140-1016 | 1 | ||
FORK-SHIFT,OUTPUT | 13140A | 13140-1062 | 2 | ||
CAM-CHANGE DRUM | 13145 | 13145-1058 | 1 | ||
SWITCH,NEUTRAL | 13151 | 13151-1007 | 1 | ||
DRUM-ASSY-CHANGE | 13239 | 13239-1119 | 1 | ||
ROD-SHIFT | 49047 | 49047-5003 | 1 | ( - ZX600AE027547) | |
ROD-SHIFT | 49047A | 49047-1069 | 1 | ( ZX600AE027548 - ) | |
CIRCLIP,37MM | 92033 | 92033-035 | 1 | ||
PIN GEAR CHANGE DRUM | 92043 | 92042-014 | 1 | ||
DOWEL PIN,8X18 | 92043A | 92042-021 | 1 | ||
PIN,GEAR CHNGE DRUM | 92043B | 92042-030 | 5 | ||
SCREW CNTSNK HD 6X20 | 221 | 221B0620 | 1 | ||
CIRCLIP 12MM | 480 | 480J1200 | 1 | ( - ZX600AE027547) | |
CIRCLIP,30MM | 480A | 480J3000 | 1 | ||
CIRCLIP 10MM | 482 | 482J0100 | 1 | ( ZX600AE027548 - ) | |
PIN COTTER 3.0X20 | 550 | 550D3020 | 1 | ||
PIN-DOWEL,4X6 | 610 | 610A0406 | 1 |
