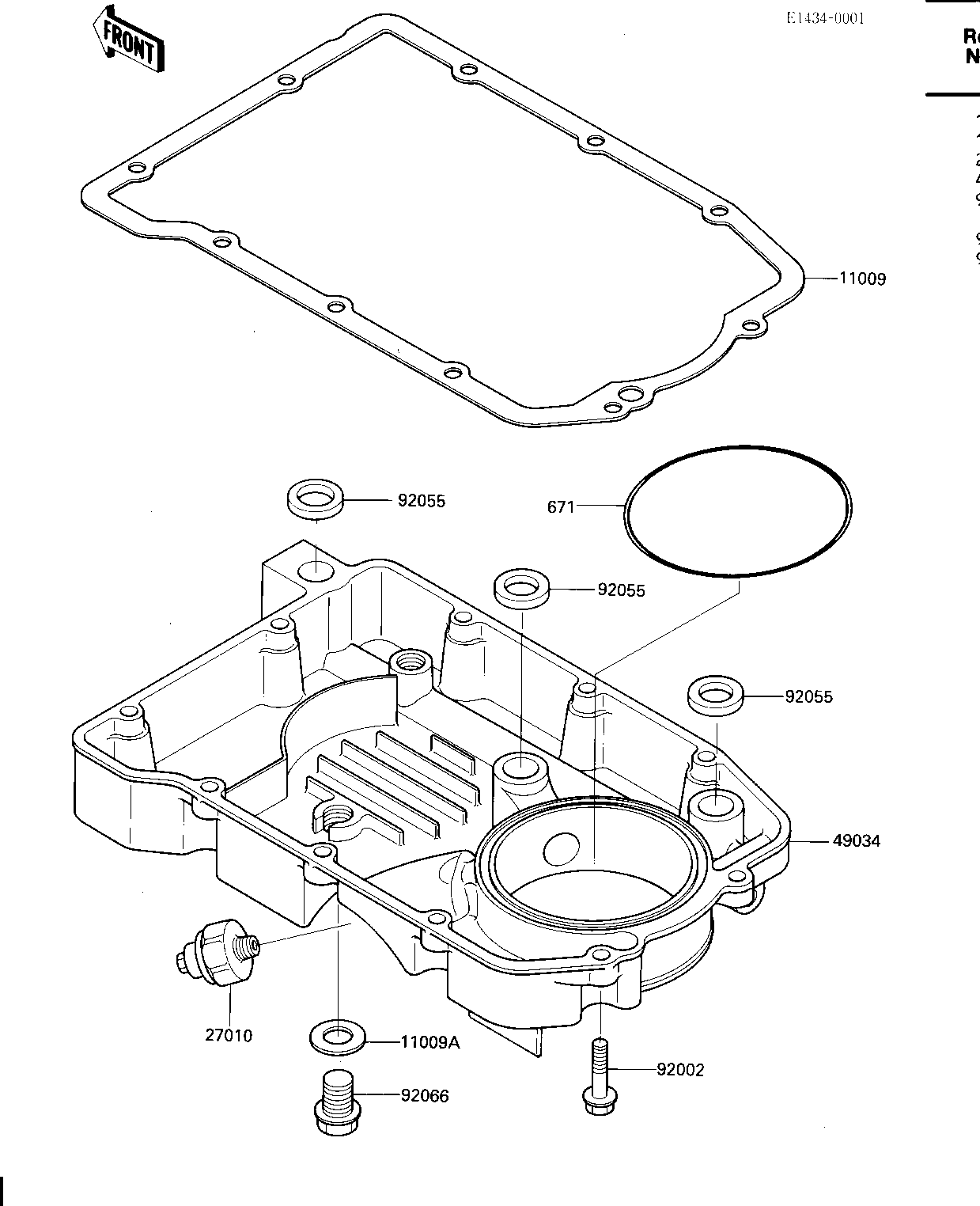

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11009 11060-1149 1
GASKET,DRIN PLUG 11009A 92065-097 1
SWITCH,OIL PRESSURE 27010 27010-1155 1
PAN-OIL 49034 49034-1062 1
BOLT,6X25 92002 92002-1089 10
"O" RING 92055 92055-077 3
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
"0" RING,90MM 671 671B2590 1
