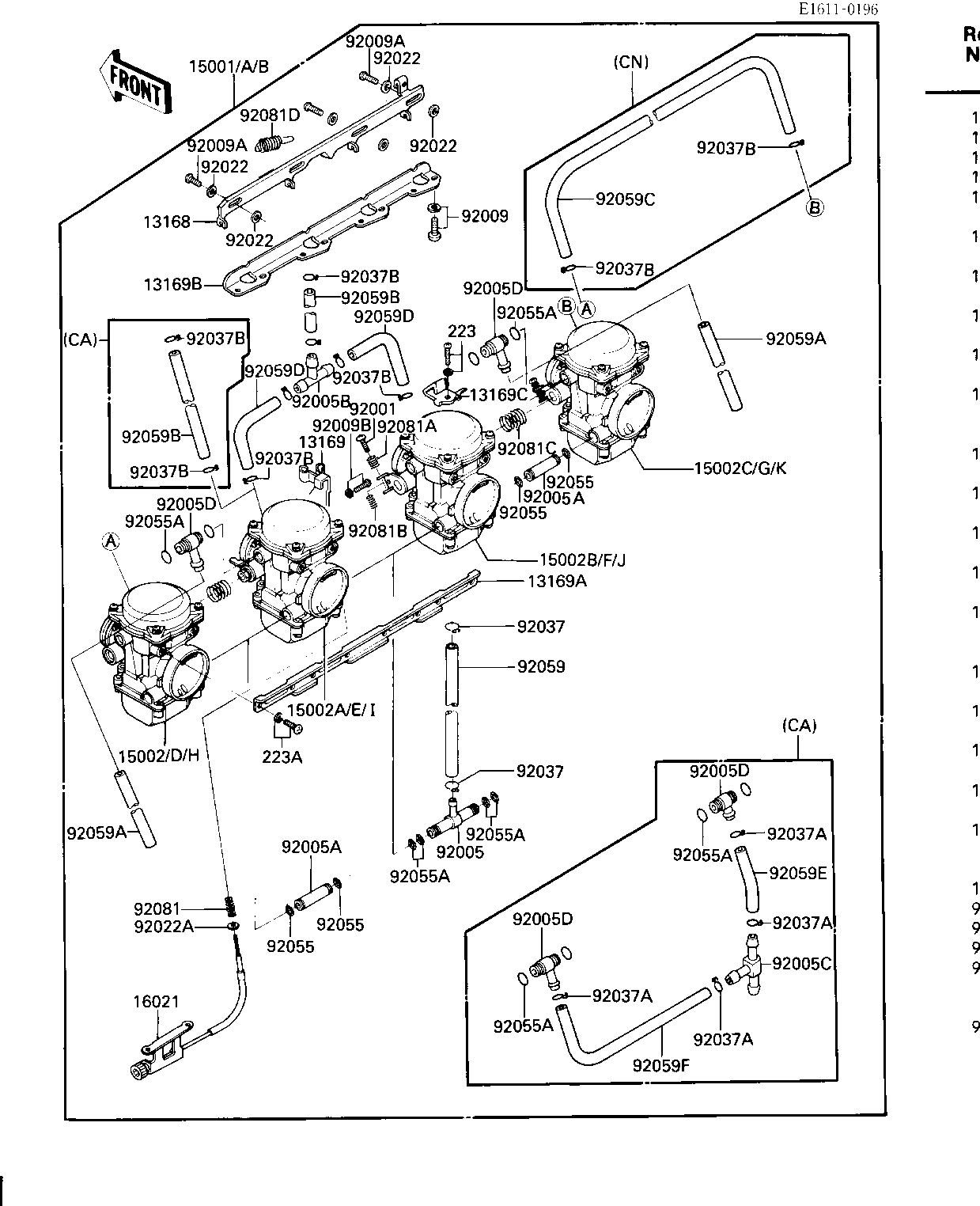

1986 Ninja® 600 - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,STARTER 13168 13168-1280 1
PLATE,THROTTLE CABLE 13169 13169-1962 1
PLATE,CARBURETOR STAY 13169A 13169-1963 1
PLATE,CARBURETOR STAY 13169B 13169-1964 1
PLATE,STARTER CABLE 13169C 13169-1965 1
CARBURETOR-ASSY 15001 15001-1153 1 US
CARBURETOR-ASSY 15001A 15001-1154 1 CA
CARBURETOR-ASSY (Canada) 15001B 15001-1155 1 CN
CARBURETOR,LH,OUTSIDE (Canada) 15002 15002-1225 1 CN
CARBURETOR,LH,INSIDE (Canada) 15002A 15002-1226 1 CN
CARBURETOR,RH,INSIDE (Canada) 15002B 15002-1227 1 CN
CARBURETOR,RH,OUTSIDE (Canada) 15002C 15002-1228 1 CN
CARBURETOR,LH,OUTSIDE 15002D 15002-1229 1 CA
CARBURETOR,LH,INSIDE 15002E 15002-1230 1 CA
CARBURETOR,RH,INSIDE 15002F 15002-1231 1 CA
CARBURETOR,RH,OUTSIDE 15002G 15002-1232 1 CA
CARBURETOR,LH,OUTSIDE 15002H 15002-1233 1 US
CARBURETOR,LH,INSIDE 15002I 15002-1234 1 US
CARBURETOR,RH,INSIDE 15002J 15002-1235 1 US
CARBURETOR,RH,OUTSIDE 15002K 15002-1236 1 US
SCREW-THROTTLE STOP 16021 16021-1114 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,FUEL,T-TYPE 92005 92005-1108 1
FITTING,FUEL,I-TYPE 92005A 92005-1109 2
FITTING,FUEL,T-TYPE 92005B 92005-1112 1 CN,US
FITTING,T-TYPE 92005C 92005-1135 1 CA
FITTING,T-TYPE 92005D 92005-1125 2
SCREW,6X16 92009 92009-1129 8
SCREW 92009A 92009-1262 3
SCREW 92009B 92009-1365 1
WASHER,6.1X11X0.8,POL 92022 92022-1199 6
WASHER,PLAIN,STOP SPR 92022A 92022-1480 1
CLAMP,FUEL INLET TUBE 92037 92037-1075 2
CLAMP,TUBE 92037A 92037-1682 4 CA
CLAMP,TUBE,OVERFLOW 92037B 92037-1142 2 CA
CLAMP,TUBE,OVERFLOW 92037B 92037-1142 6 CA
CLAMP,TUBE,OVERFLOW 92037B 92037-1142 8 CA
"O" RING 92055 92055-1004 4
RING-O,FUEL FITTING 92055A 92055-1223 8
TUBE,FUEL 92059 92059-1236 1
TUBE,6.5X9.5X290 92059A 92059-1376 2 CN,US
TUBE,5X9X150 92059B 92059-1378 1
TUBE,5X9X320 92059C 92059-1626 1 CN
TUBE,5X9X90 92059D 92059-1627 2 CN,US
TUBE,7X11X90 92059E 92059-1638 1 CA
TUBE,7X11X260 92059F 92059-1639 1 CA
SPRING,THROTTLE STOP 92081 92081-1617 1
SPRING,THROTTLE ADJUS 92081A 92081-1620 3
SPRING,THROTTLE ADJUS 92081B 92081-1621 3
SPRING,THROTTLE ADJUS 92081C 92081-1622 2
SPRING,STARTER LEVER 92081D 92081-1913 1
SCREW-PAN-WS-CROS 223 223C0420 1
SCREW-PAN-WS-CROS 223A 223C0510 8
