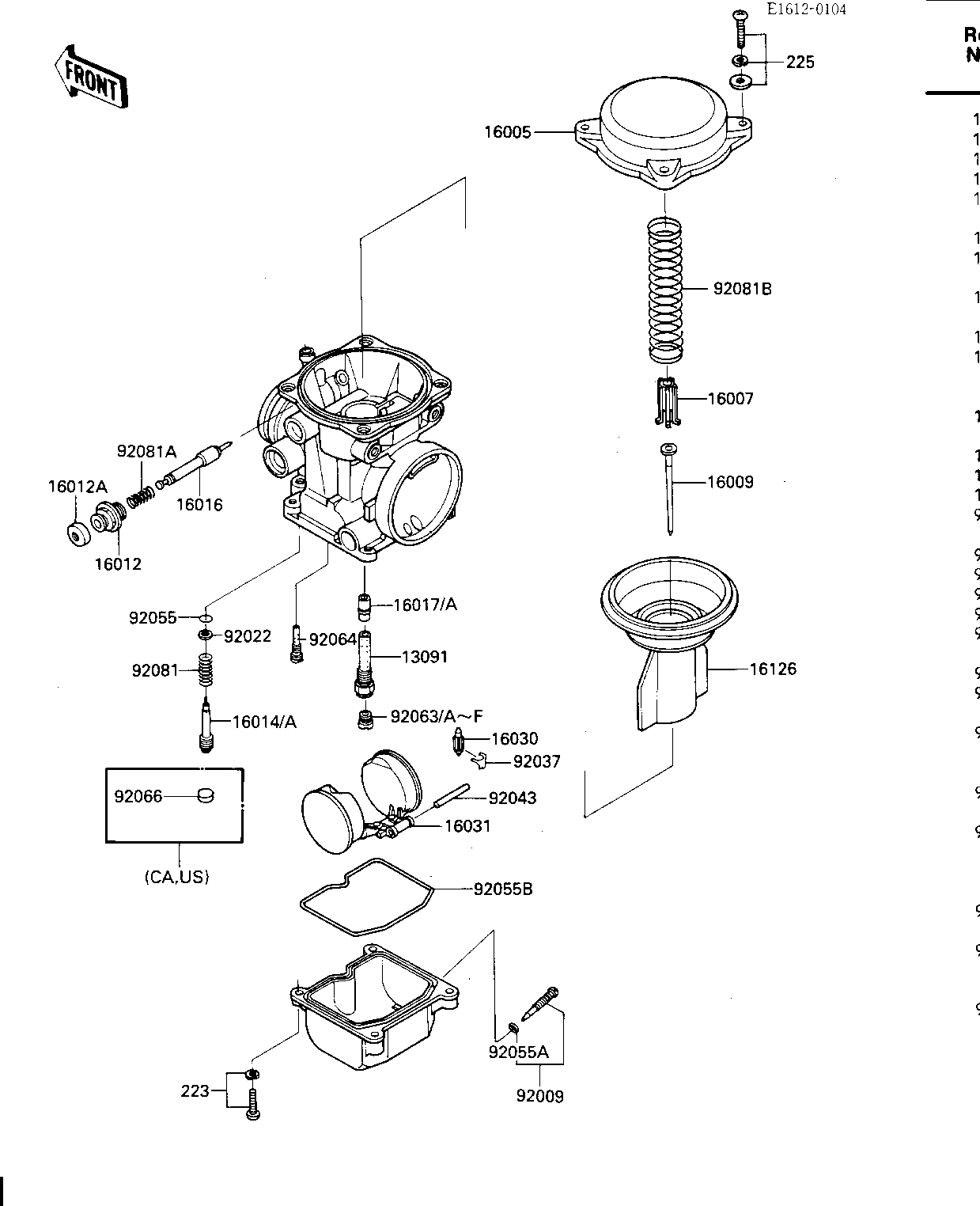

1986 Ninja® 600 - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1391 4
TOP-CHAMBER 16005 16005-1056 4
SEAT-SPRING 16007 16007-1120 4
NEEDLE-JET,N27L 16009 16009-1270 4
CAP-STARTER PLUNGER 16012 16012-1051 4
CAP-STARTER PLUNGER 16012A 16012-1052 4
SCREW,PILOT ADJUST 16014 16014-1029 4 CN
SCREW-PILOT AIR 16014A 16014-1054 4 CA,US
PLUNGER,STARTER 16016 16016-1061 4
16017-1270 (Canada) 16017 16017-1285 4 CN
JET-NEEDLE 16017A 16017-1286 4 CA,US
FLOAT VALVE 16030 16030-1007 4
FLOAT 16031 16031-1056 4
VALVE,VACUUM 16126 16126-1160 4
SCREW,DRAIN 92009 92009-1095 4
WASHER,PLAIN 92022 92022-1003 4
CLIP,FLOAT VALVE 92037 16044-007 4
PIN,FLOAT 92043 92043-1148 4
O RING,PILOT ADJ 92055 92055-1002 4
"O" RING,DRAIN SCREW 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 4
JET-MAIN #110 92063 92063-1114 4 (RACING USE ONLY)
MAIN JET,#100 92063A 92063-1008 2 CN,US
MAIN JET,#105 92063B 92063-1009 2 CN,US
MAIN JET,#105 92063C 92063-1009 4 CA
JET-MAIN,#102 92063D 92063-1115 4 (RACING USE ONLY)
JET-MAIN #108 92063E 92063-1116 2 CN,US
JET-MAIN #108 92063E 92063-1116 4 CN,US
JET-MAIN #112 92063F 92063-1117 2 CN,US
JET-MAIN #112 92063F 92063-1117 4 CN,US
JET-PILOT 92064 92064-1119 4
PLUG,PILOT SCREW 92066 92066-1051 4 CA,US
SPRING,PIROT ADJ SCRW 92081 92081-1002 4
SPRING,STARTER PLUNGE 92081A 92081-1761 4
SPRING,VACUUM VALVE 92081B 92081-1912 4
UNAVAILABLE IN PRICE BOOK 223 223C0446 16
SCREW-PAN-WSP-CROS 225 225C0418 15
