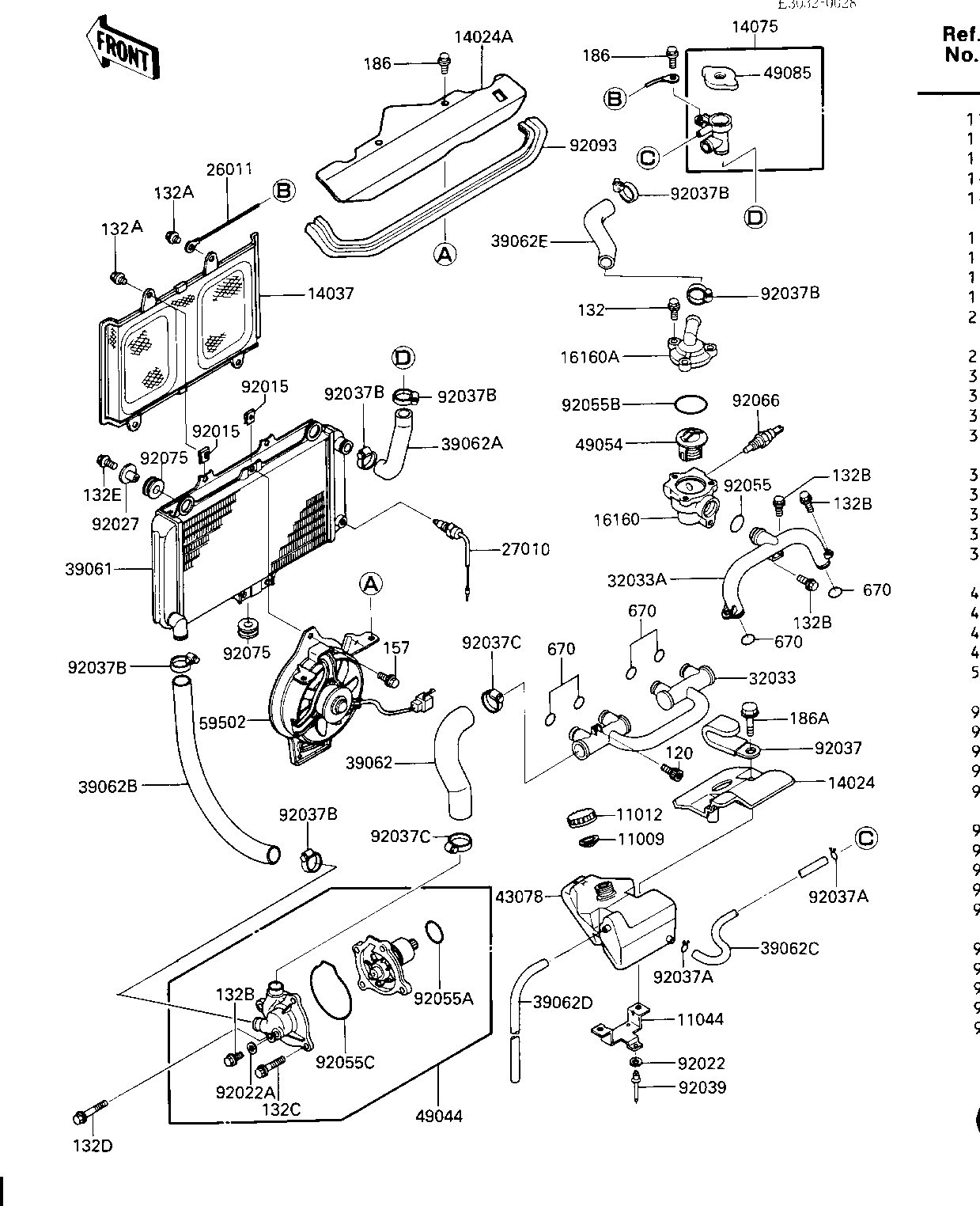

1986 Ninja® 600 - RADIATOR/FAN/WATER PUMP (-E/NO. 029800)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVE TANK 11009 11009-1145 1
CAP,RESERVE TANK 11012 11012-1084 1
BRACKET,RESERVOIR 11044 11044-1170 1
COVER 14024 14024-1090 1
COVER,RADIATOR 14024A 14024-1137 1
SCREEN,RADIATOR 14037 14037-1069 1
CAP-ASSY 14075 14075-1061 1
BODY,THERMOSTAT,LWR 16160 16160-1092 1
BODY 16160A 16160-1129 1
WIRE-LEAD 26011 26011-1328 1
SWITCH,FAN 27010 27010-1180 1
PIPE 32033 32033-1593 1
PIPE 32033A 32033-1594 1
RADIATOR-ASSY 39061 39061-1071 1
HOSE-COOLING 39062 39062-1111 1
HOSE-COOLING 39062A 39062-1113 1
HOSE-COOLING 39062B 39062-1114 1
HOSE-COOLING 39062C 39062-1269 1
HOSE-COOLING 39062D 39062-1269 1
HOSE-COOLING 39062E 39062-1130 1
RESERVOIR 43078 43078-1062 1
PUMP-WATER 49044 49044-1054 1
THERMOSTAT 49054 49054-1055 1
CAP-ASSY-PRESSURE 49085 49085-1003 1
FAN-ASSY 59502 59502-1057 1
NUT 92015 92015-1487 4
WASHER,5.2X16X16X1.2T 92022 25009-004 3
WASHER,6MM 92022A 92022-1627 1
COLLAR,FUEL TANK FITT 92027 92027-1134 2
CLAMP,WIRING HARNESS 92037 92037-1069 1
CLAMP,CHAIN OILER 92037A 92037-147 2
CLAMP,COOLING HOSE 92037B 92170-1034 6
CLAMP,COOLING HOSE 92037C 92037-1600 2
RIVET 92039 92039-1038 3
"O" RING 92055 92055-1081 1
RING-O,33MM 92055A 92055-1266 1
RING-O,45MM 92055B 92055-1279 1
RING-O,WATER PUMP 92055C 92055-1315 1
PLUG,SENSOR WATER 92066 92066-1183 1
DAMPER 92075 92160-1007 3
SEAL,RADIATOR COVER 92093 92093-1189 1
BOLT-SOCKET 120 120S0612 2
BOLT-FLANGED-SMALL 132 132E0620 3
BOLT-FLANGED-SMALL,6X 132A 132J0610 4
BOLT-FLANGED-SMALL 132B 132J0612 5
BOLT-FLANGED-SMALL 132C 132J0625 3
BOLT-FLANGED-SMALL 132D 132J0645 1
BOLT-FLANGED-SMALL 132E 132J0825 2
BOLT-WSP 157 157J0616 3
BOLT-UPSET-WP 186 186C0614 4
BOLT-UPSET-WP 186A 186C0650 2
"0" RING,16MM 670 670B2016 6
