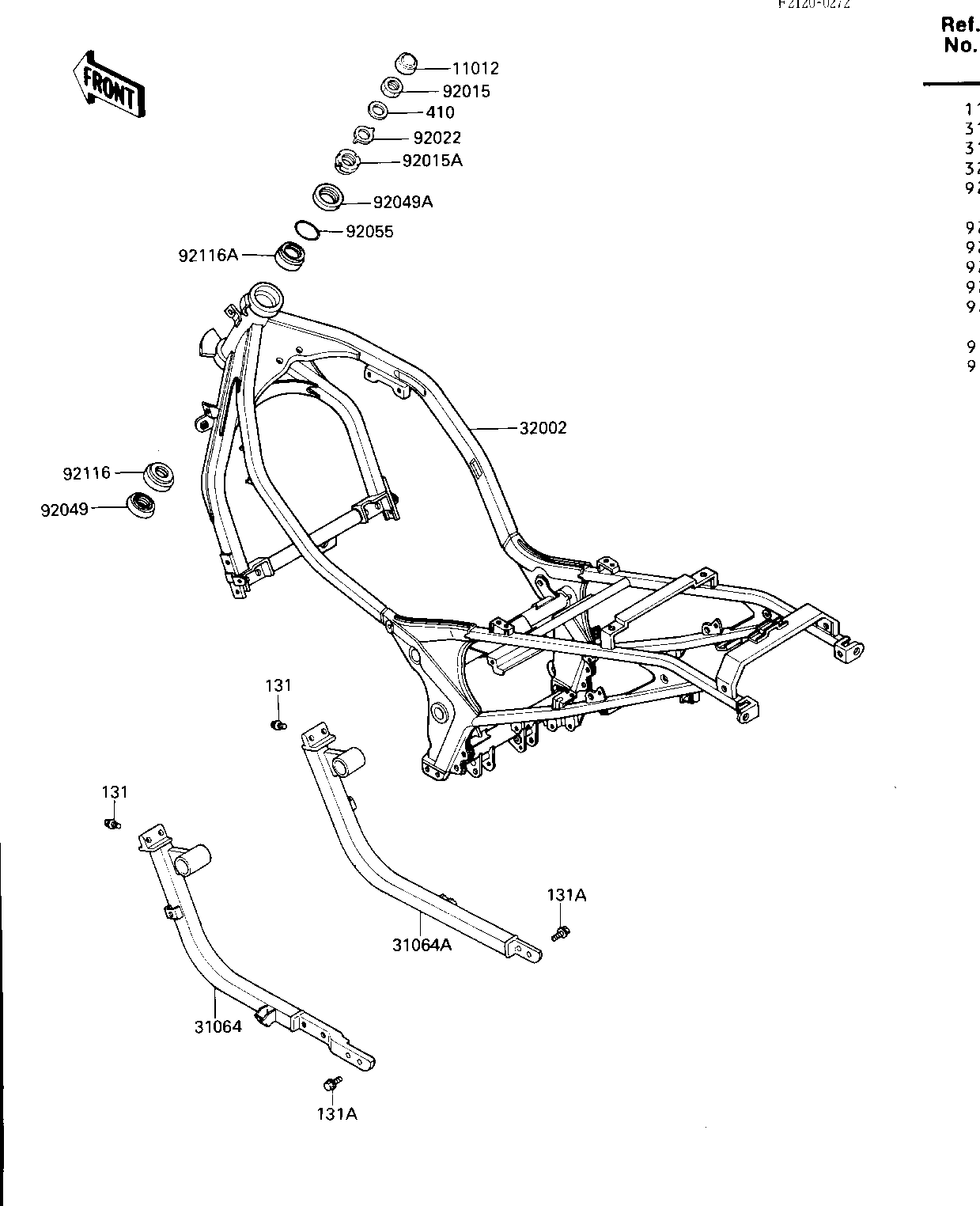

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 11012-1442 1
PIPE-COMP,SIDE FRAME, 31064 31064-1061 1
PIPE-COMP,SIDE FRAME, 31064A 31064-1062 1
FRAME-COMP 32002 32002-1800 1
NUT,18MM 92015 92015-1404 1
NUT 92015A 92015-1546 1
WASHER,CLAW,18.5X30X2 92022 92022-1555 1
WASHER,CLAW,18.5X30X2 92049 92022-1555 1
SEAL-OIL,STEERING STE 92049A 92049-1214 1
RING-0.24.7MM 92055 92055-1160 1
BRG,ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER 92116A 92116-1056 1
BOLT-FLANGED 131 131G0820 4
BOLT-FLANGED 131A 131G1020 4
W-PLAIN-S 410 410F1800 1
