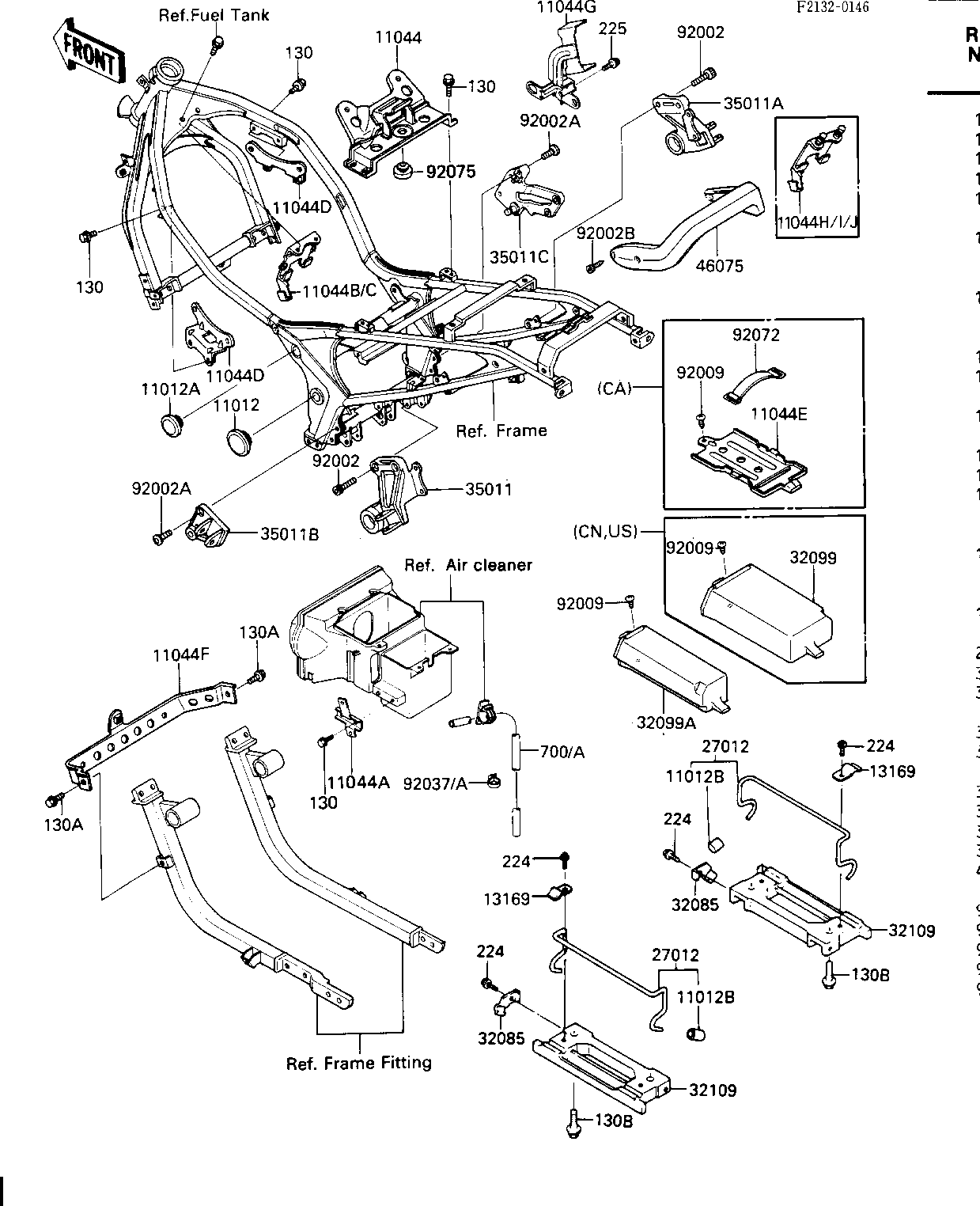

1986 Ninja® 600 - BATTERY CASE/TOOL CASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM BRACKET 11012 11012-1629 2
CAP 11012A 11012-1471 2
CAP,BUNGEE CORD HOOK 11012B 11012-1589 4
BRACKET,BATTERY 11044 11044-1101 1
BRACKET,REGULATOR 11044A 11044-1126 1
BRACKET,RELAY 11044B 11044-5001 1 CN,US
BRACKET,RELAY 11044C 11044-5001 1 CA
BRACKET,IGNITION COIL 11044D 11044-1128 2
BRACKET,CANISTER 11044E 11044-1133 1 CA
BRACKET,OIL COOLER 11044F 11044-1157 1
BRACKET,IGNITER 11044G 11044-1398 1
UNAVAILABLE IN PRICE BOOK 11044H 11044-145 1
BRACKET,RELAY 11044I 11044-5001 1 CN,US
BRACKET,RELAY 11044J 11044-5001 1 CA
PLATE,GRIP 13169 13169-1760 4
HOOK,GRIP 27012 27012-1311 2
STOPPER,HOOK 32085 32085-1187 2
CASE 32099 32099-1074 2 CN,US
CASE,TOOL 32099A 32099-1075 1
GRIP-FRAME 32109 32109-1108 2
STAY,MUFFLER,LH 35011 35011-1242 1
STAY,MUFFLER,RH 35011A 35011-1243 1
STAY,STEP HOLDER,FR,L 35011B 35011-1244 1
STAY,STEP HOLDER,FR,R 35011C 35011-1245 1
GRIP,GRABRAIL 46075 46075-1058 1
BOLT,SOCKET,8X20 92002 92002-1178 4
BOLT,SOCKET,8X20 92002A 92002-1493 3
BOLT,SOCKET,6X24 92002B 92002-1511 4
SCREW,TAPPING,6MM 92009 92009-1261 2
CLAMP 92037 92037-1163 1 CN,US
CLAMP 92037A 92037-1163 1 CA
BAND BATTERY 92072 92072-006 1 CA
DAMPER,STAND STOPPER 92075 92075-1045 1
BOLT-FLANGED,6X12 130 130C0612 9
BOLT-FLANGED 130A 130D0812 2
BOLT,FLANGED,8X14 130B 130G0814 4
SCREW-PAN-WP-CROS 224 224C0508 6
SCREW-PAN-WSP-CROS 225 225C0612 1
TUBE-VINYL,5X600 700 700Q05600 1 CN,US
TUBE-VINYL,5X600 700A 700Q05600 1 CA
