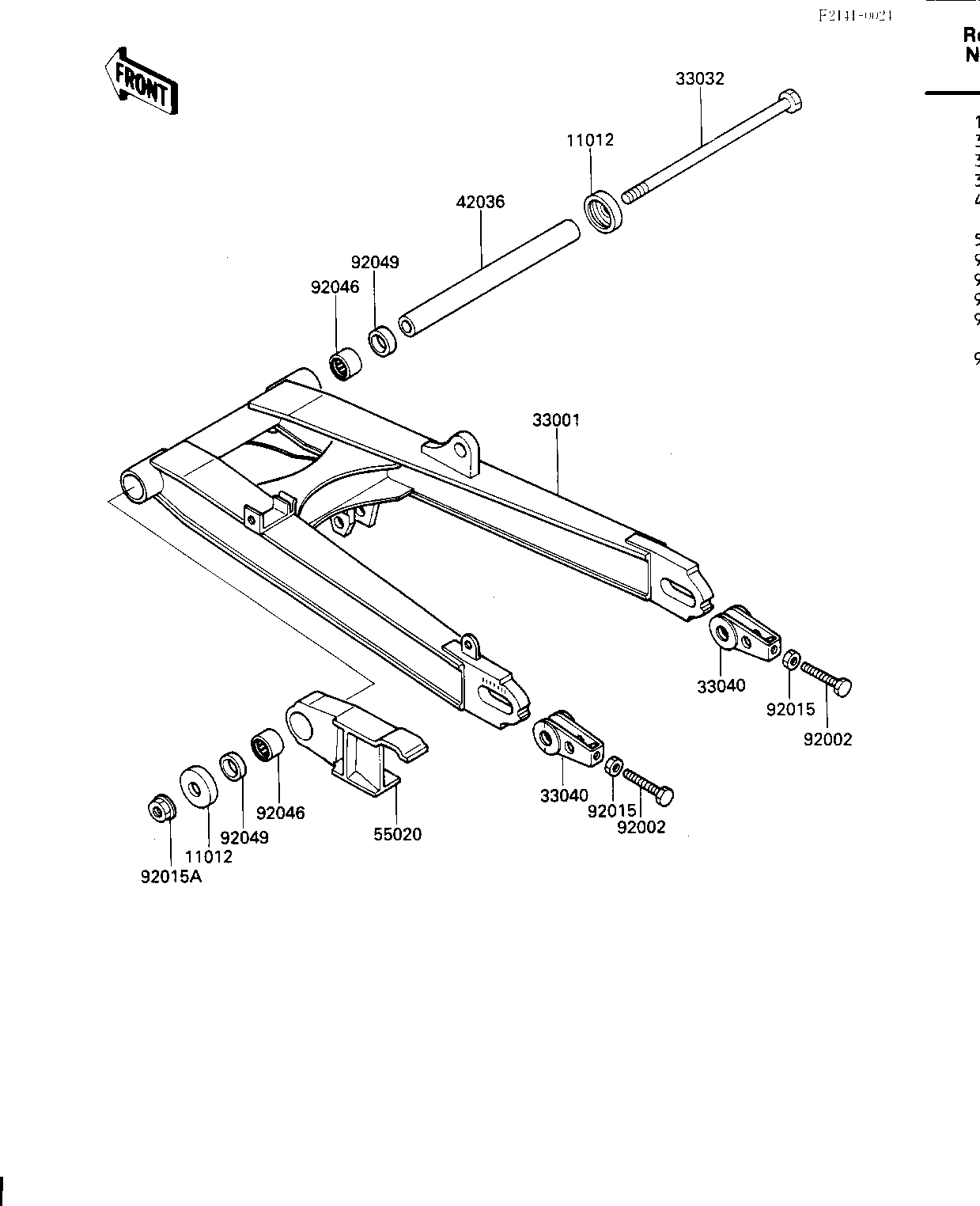

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1441 2
ARM-COMP-SWING,SILVER 33001 33001-1236-P1 1
SHAFT-SWING ARM 33032 33032-1114 1
ADJUSTER-CHAIN 33040 33040-1063 2
SLEEVE,SWING ARM 42036 42036-1018 1
GUARD,CHAIN 55020 55020-1188 1
BOLT,8X50 92002 92002-1060 2
NUT,8MM 92015 92015-1364 2
NUT,14MM 92015A 92015-1407 1
BEARING-NEEDLE,TA2230 92046 92046-1140 2
SEAL-OIL,MHA22304 92049 92049-1219 2
