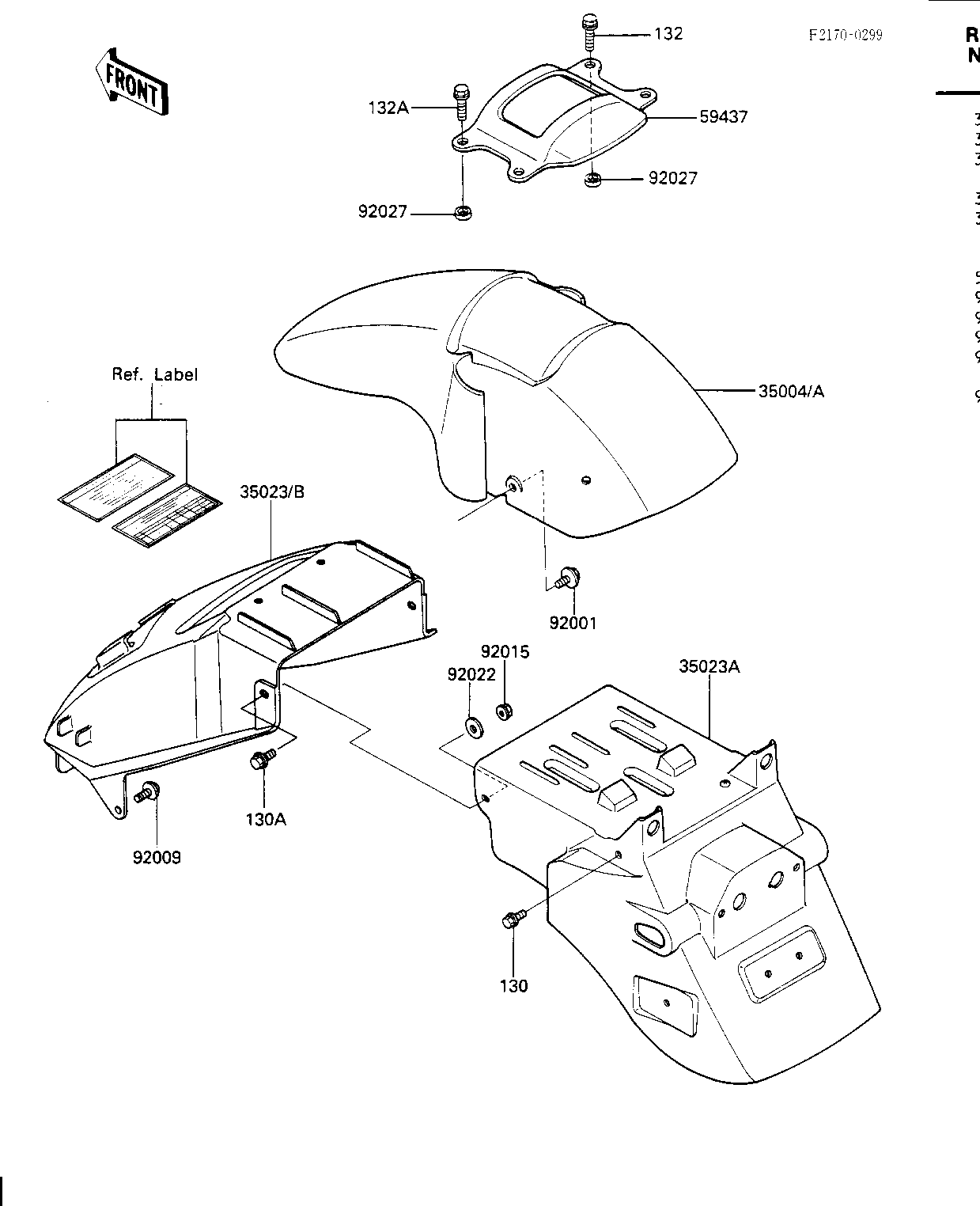

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,P.A.WHIT 35004A 35004-1170-R1 1
FENDER-REAR,FR 35023 35023-1129 1 CN,US
FENDER-REAR,RR,BLACK 35023A 35023-1130-6Z 1
FENDER-REAR,FR 35023B 35023-1136 1 CA
STABILIZER 59437 59437-1053 1
BOLT,W/SP,6X16 92001 92001-1763 2
SCREW,6X14 92009 92009-1288 2
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER 6.5X20X1.6T 92022 92022-125 2
COLLAR,9.5X12.7X4.5 92027 92027-1879 2
BOLT-FLANGED 130 130D0616 2
BOLT-FLANGED 130A 130D0620 2
BOLT-FLANGED-SMALL 132 132G0820 2
BOLT-FLANGED-SMALL 132A 132G0825 2
