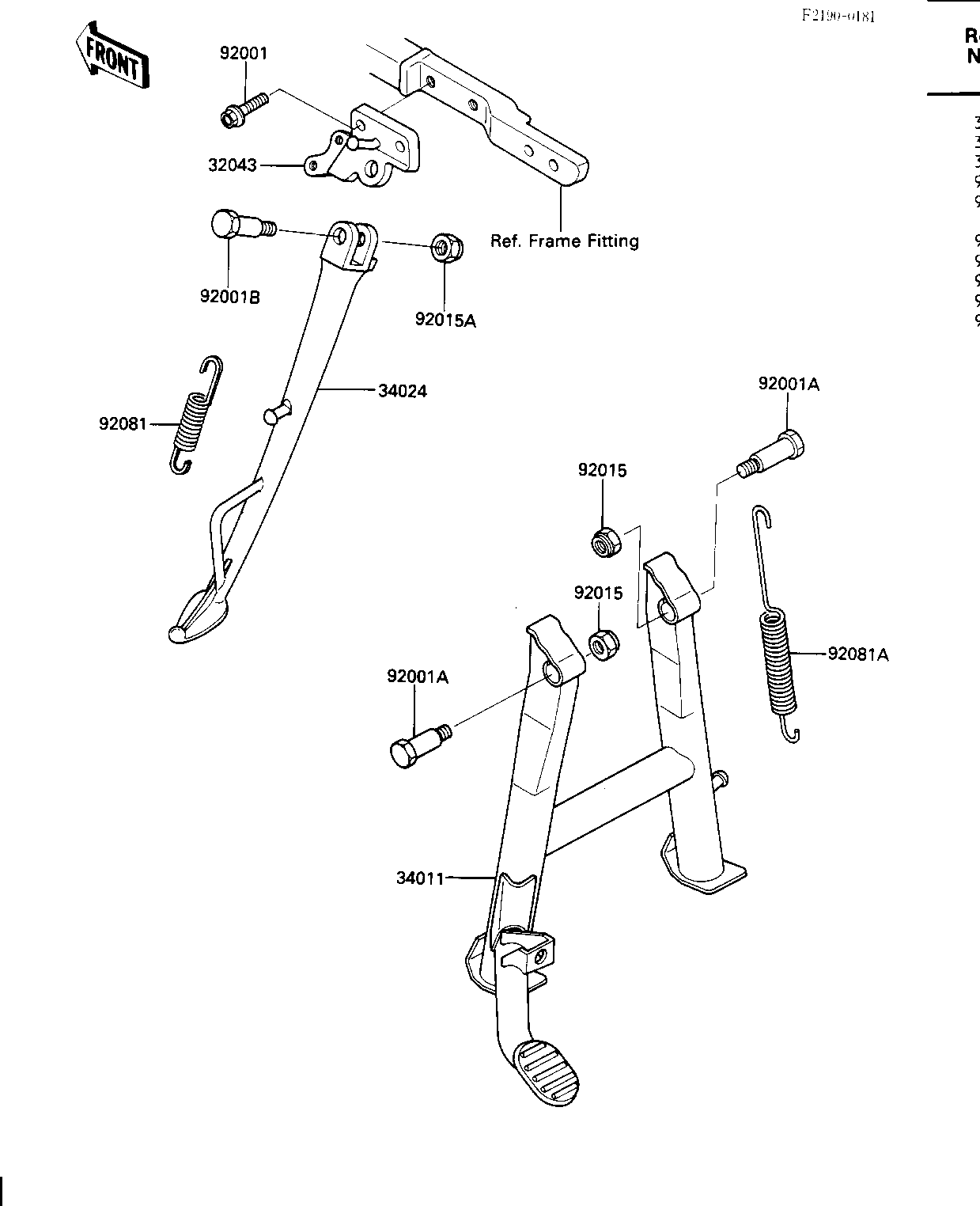

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1263 1
STAND-CENTER 34011 34011-1121 1
STAND-SIDE 34024 34024-1192 1
BOLT,8X28 92001 92001-1095 2
BOLT,MAIN STAND FITTI 92001A 92001-1214 2
BOLT, SIDE STAND FIT 92001B 92003-157 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 2
NUT,LOCK,10MM 92015A 92019-021 1
SPRING,SIDE STAND 92081 92081-1676 1
SPRING,CENTER STAND 92081A 92081-1834 1
