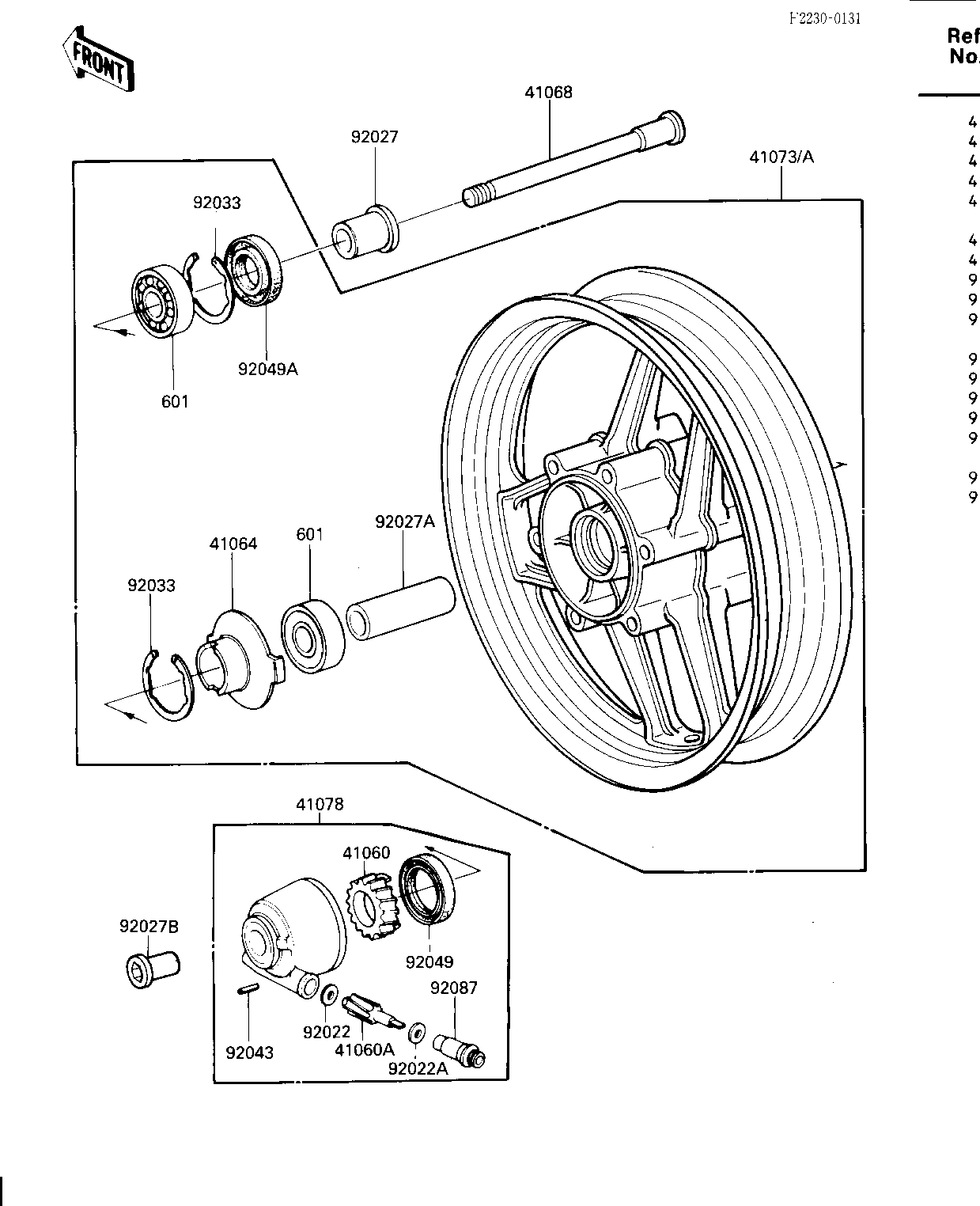

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-METER SCREW,24T 41060 41060-1025 1
GEAR-METER SCREW,9T 41060A 41060-1035 1
RECEIVER,SPEEDOMETER 41064 41064-1006 1
AXLE,FR 41068 41068-1164 1
WHEEL-ASSY,FR,BLACK 41073A 41073-1340-R2 1
CASE-ASSY-METER GEAR 41078 41078-1057 1
WASHER THRST SPD PINI 92022 41063-001 1
WASHER THRST SPD PINI 92022A 41063-001 1
COLLAR,FR AXLE L=30MM 92027 92027-1225 1
COLLAR,L=70 92027A 92027-1725 1
COLLAR,&NUT,FR AXLE,L 92027B 92027-1726 2
CIRCLIP,42MM 92033 92033-1041 2
PIN,SPRING 92043 41082-001 1
OIL SEAL,BJN30427-C3 92049 92049-1057 1
OIL SEAL,AG1144AO 92049A 92049-1058 1
BUSHING,METER GEAR 92087 92087-1002 1
BEARING-BALL 601 601B6302U 2
