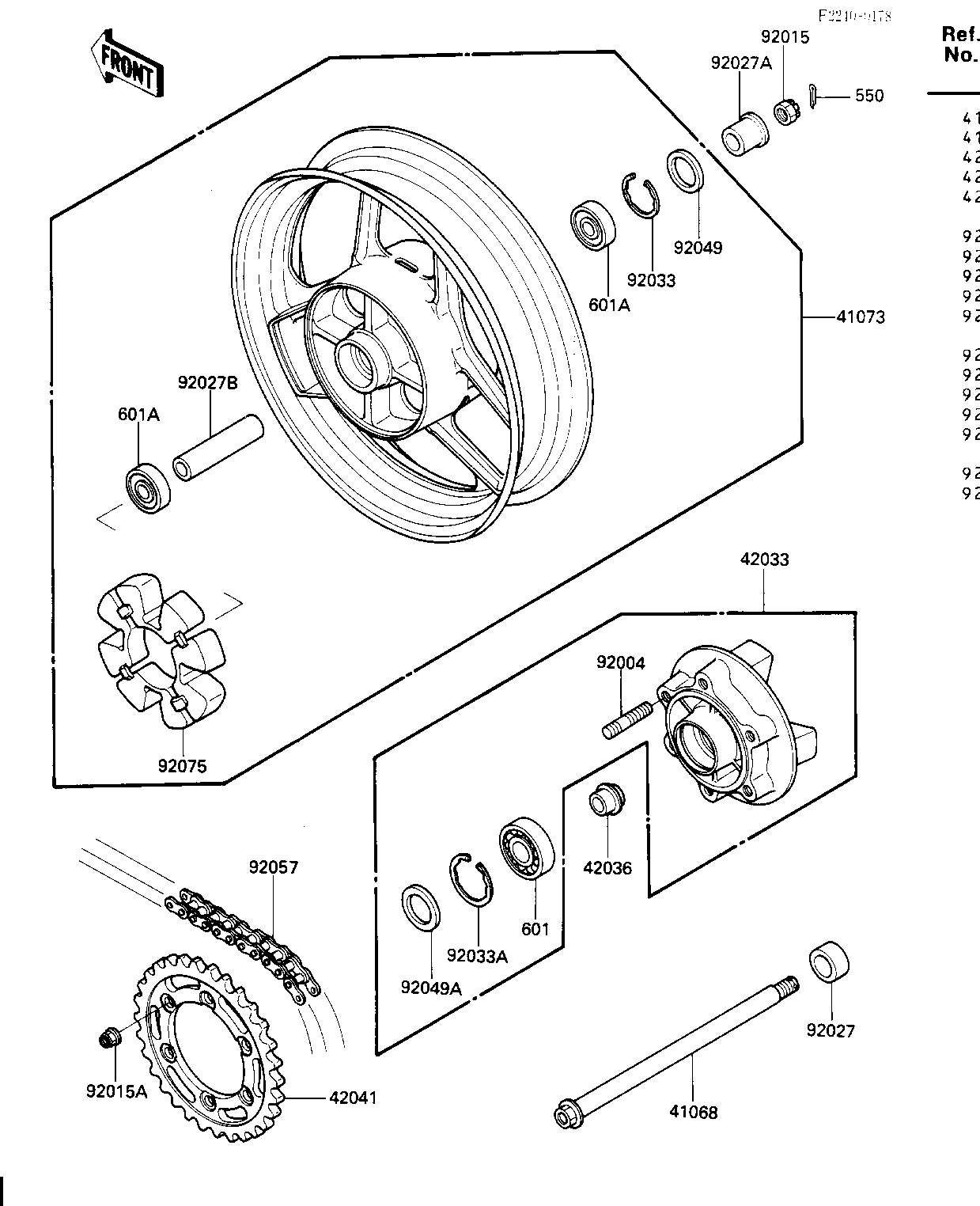

1986 Ninja® 600 - REAR WHEEL/HUB/CHAIN
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AXLE,RR | 41068 | 41068-1192 | 1 | ||
WHEEL-ASSY,RR,BLACK | 41073 | 41073-1436-R2 | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-1114 | 1 | ||
SLEEVE,RR HUB,L=26 | 42036 | 42036-1149 | 1 | ||
SPROCKET-HUB,39T | 42041 | 42041-1287 | 1 | ||
STUD,10X24 | 92004 | 92004-1146 | 6 | ||
NUT CASTLE 16M/M | 92015 | 42045-014 | 1 | ||
NUT,FLANGED,10MM | 92015A | 92015-1502 | 6 | ||
COLLAR,RR AXLE,L=20 | 92027 | 92027-1874 | 1 | ||
COLLAR,RR AXLE,L=28 | 92027A | 92027-1875 | 1 | ||
COLLAR,L=106 | 92027B | 92027-1876 | 1 | ||
CIRCLIP,47M/M | 92033 | 92033-1042 | 1 | ||
RING,SNAP,56.2M/M | 92033A | 92033-1043 | 1 | ||
OIL SEAL,AG1556EO | 92049 | 92049-1056 | 1 | ||
OIL SEAL WTC35527 | 92049A | 92052-006 | 1 | ||
DR CHAIN EK50KVDO 102 | 92057 | 92057-1189 | 1 | ||
DAMPER,SHOCK,RR HUB | 92075 | 92075-1687 | 1 | ||
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BEARING BALL #6205 | 601 | 601B6205 | 1 | ||
BRG,BALL,#6303ZZC3 | 601A | 601B6303ZZ | 2 |
