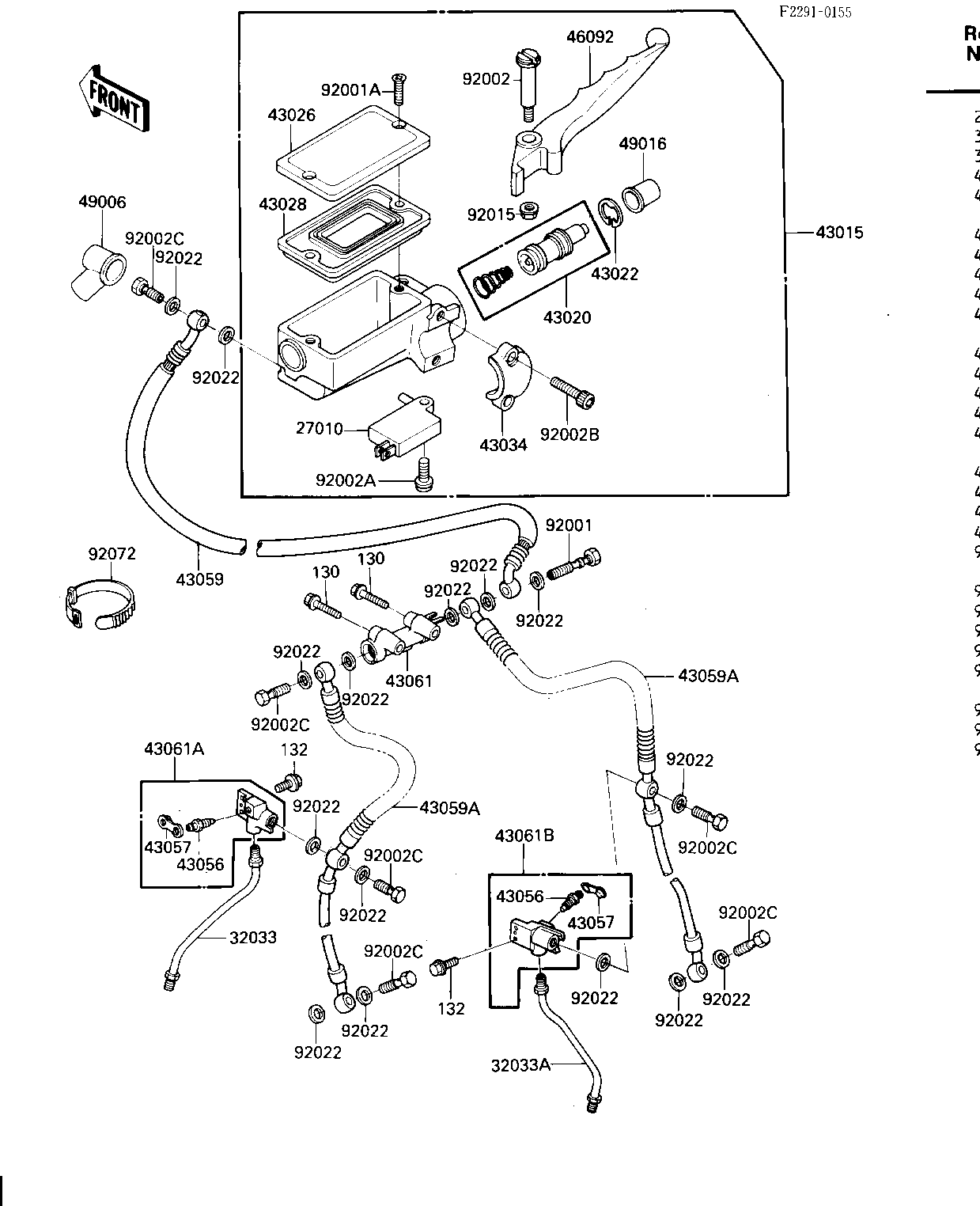

1986 Ninja® 600 - FRONT MASTER CYLINDER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,BRAKE 27010 27010-1170 1
PIPE,BRAKE,FR,LH 32033 32033-1240 1
PIPE,BRAKE,FR,RH 32033A 32033-1241 1
CYLINDER-ASSY-MASTER, 43015 43015-1288 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE,FR 43026 43026-1055 1
DIAPHRAGM,MASTER CYLI 43028 43028-1058 1
HOLDER-BRAKE,MASTER C 43034 43034-1053 1
BREATHER-BRAKE 43056 43056-1051 2
CAP-BREATHER 43057 43057-1001 2
HOSE-BRAKE,FR 43059 43059-1616 1
HOSE-BRAKE,FR 43059A 43059-1297 2
JOINT BRAKE 43061 43061-1004 1
JOINT-BRAKE,FORK.LH 43061A 43061-1057 1
JOINT-BRAKE,FORK,RH 43061B 43061-1058 1
LEVER-GRIP,FRONT BRAK 46092 46092-1117 1
BOOT,DUST 49006 49006-1041 1
COVER-SEAL,MASTER CYL 49016 49016-1044 1
BOLT 92001 92002-1909 1
BOLT,MASTER CYLINDER 92001A 92001-1727 2
BOLT,LEVER SET 92002 92002-1322 1
BOLT 92002A 92002-1323 1
BOLT,SOCKET,6X10 92002B 92002-1324 2
BOLT,OIL,L=23 92002C 92002-1888 6
NUT,FLANGED,6MM 92015 92015-1233 1
WASHER-OIL BOLT 92022 43067-001 15
BAND,WIRING HARNESS 92072 92072-056 1
BOLT-FLANGED,6X60 130 130G0660 2
BOLT-FLANGED-SMALL 132 132H0616 4
