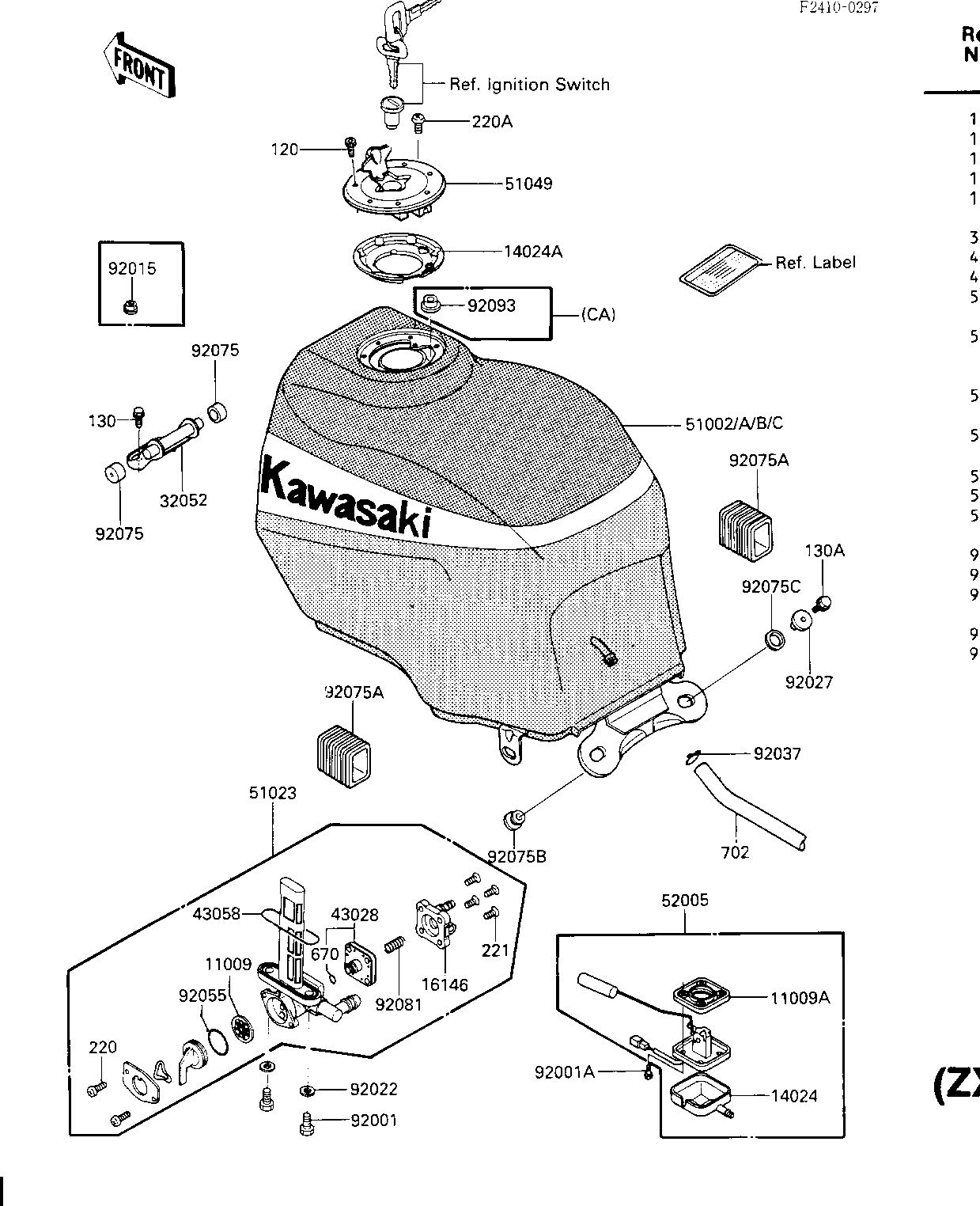

1986 Ninja® 600 - FUEL TANK (ZX600-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TAP 11009 11009-1188 1
GASKET,FUEL GAUGE 11009A 11009-1656 1
COVER,FUEL GAGE 14024 14025-1536 1
COVER 14024A 14025-1913 1
COVER ASSY,FUEL TAP 16146 16146-1009 1
BRACKET-TANK 32052 32052-1202 1
DIAPHRAGM 43028 43028-1033 1
"O" RING 43058 51039-003 1
TANK-COMP-FUEL,EBONY/ 51002 51002-5071-J3 1 CN,US
TANK-COMP-FUEL,F.RED/ 51002A 51002-5072-P9 1 CN,US
TANK-COMP-FUEL,EBONY/ 51002B 51002-5073-J3 1 CA
TANK-COMP-FUEL,F.RED/ 51002C 51002-5074-P9 1 CA
TAP-ASSY,FUEL 51023 51023-1186 1
CAP-TANK,FUEL 51049 51049-1079 1
GAUGE,FUEL 52005 52005-1071 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
BOLT,FUEL GAGE 92001A 92001-1705 4
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER-PLAIN 92022 92022-183 2
COLLAR 92027 92027-251 2
CLAMP FUEL PIPE 92037 92037-010 1
"0" RING,FUEL TAP LEV 92055 92055-1085 1
DAMPER,FUEL TANK,FRON 92075 92075-1115 2
DAMPER,FUEL TANK 92075A 92075-1700 2
RUBBER,FENDER COVER 92075B 92075-174 2
DAMPER RUBBER 92075C 92075-175 4
SPRING,DIAPHRAGM VALV 92081 92081-1240 1
OIL SEAL,FUEL TANK 92093 92093-1030 1 CA
BOLT-SOCKET 120 120S0512 1
BOLT-FLANGED,6X16 130 130C0616 2 ( - JKAZX4A1 FA012028)
BOLT-FLANGED,6X25 130A 130J0625 4
SCREW PAN HEAD 3X8 220 220B0308 4
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 4
"O" RING,4MM 670 670B1504 1
TUBE-BREATHER (BULK) 702 702A071000 1
