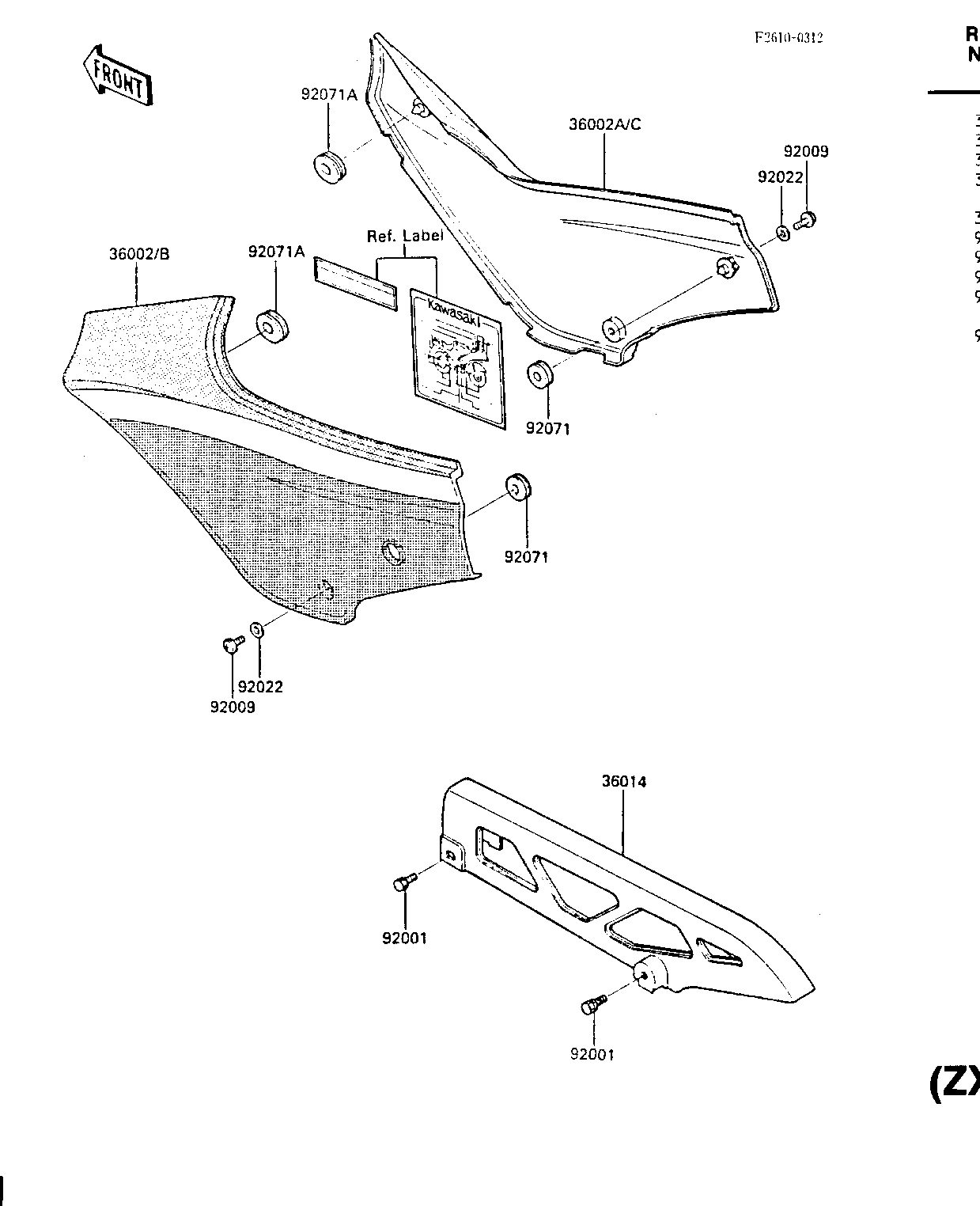

1986 Ninja® 600 - SIDE COVERS/CHAIN COVER (ZX600-A1)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY/F 36002 36002-5076-J3 1
COVER-SIDE,RH,EBONY/F 36002A 36002-5077-J3 1
COVER-SIDE,LH,F.RED/P 36002B 36002-5078-P9 1
COVER-SIDE,RH,F.RED/P 36002C 36002-5079-P9 1
CASE-CHAIN 36014 36014-1121 1
BOLT,6X12,BLACK 92001 92001-1956 2
SCREW,6X14 92009 92009-1288 2
WASHER,6.5X16X1.0 92022 92022-1654 2
GROMMET 92071 92071-056 2
GROMMET,SIDE COVER 920714 92071-1043 2
