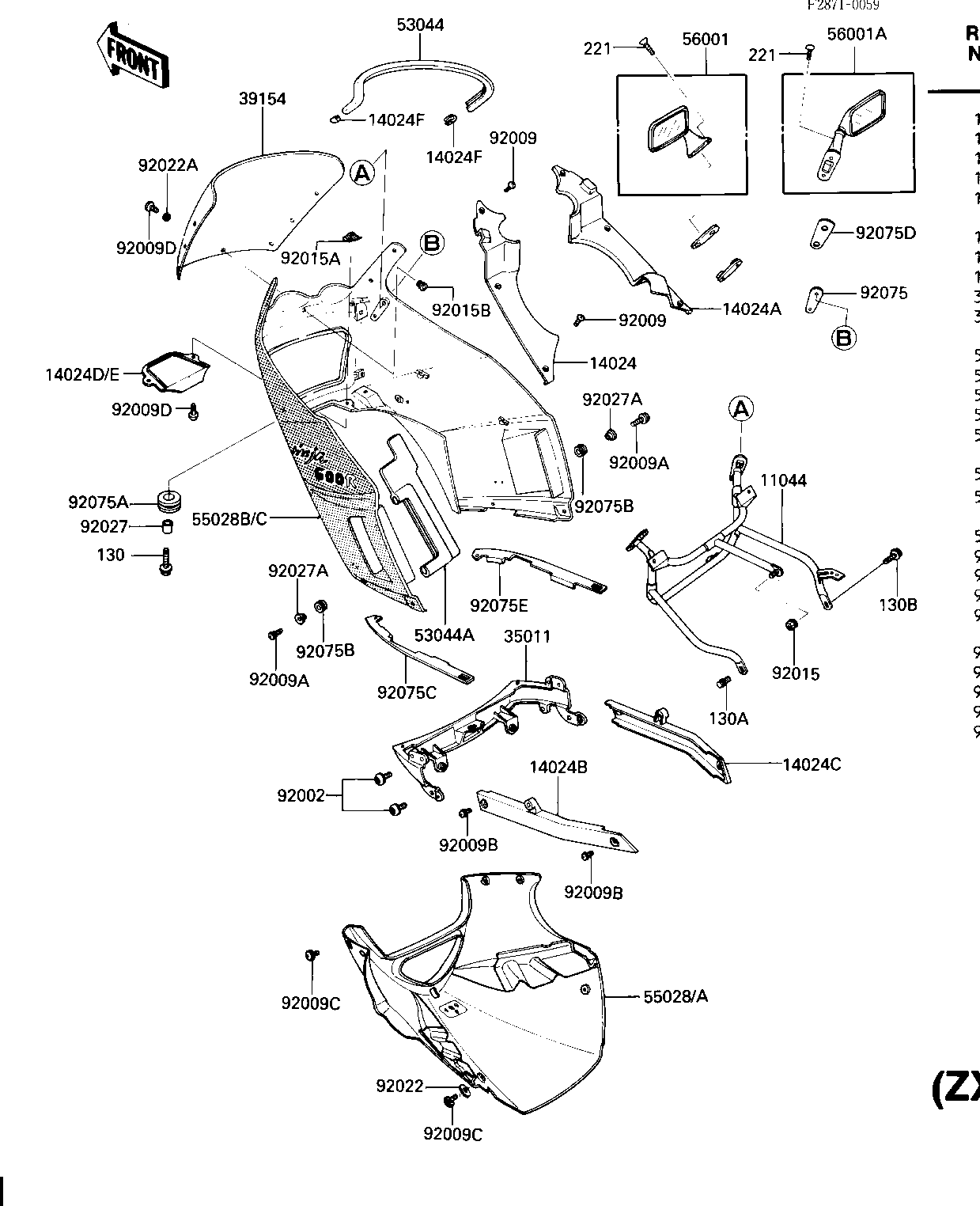

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER,6.5X20X1.6.BLA 92022 92022-1346 2
WASHER,NYLON,5.3X11.5 92022A 92022-1521 8
COLLAR,FUEL TANK FITT 92027 92027-1134 2
COLLAR 92027A 92027-1935 4
DAMPER,MIRROR 92075 92075-1492 2
DAMPER 92075A 92160-1007 2
DAMPER 92075B 92075-1634 4
DAMPER,COWLING 92075C 92075-1707 1
DAMPER,MIRROR 92075D 92075-1745 2
DAMPER 92075E 92075-1759 1
BOLT-FLANGED,6X25 130 130J0625 2
BOLT-FLANGED,8X12,BLA 130A 130C0812 1
BOLT-FLANGED,8X16,BLA 130B 130C0816 1
SCREW-CSK-CROS,6X30 221 221C0630 4
