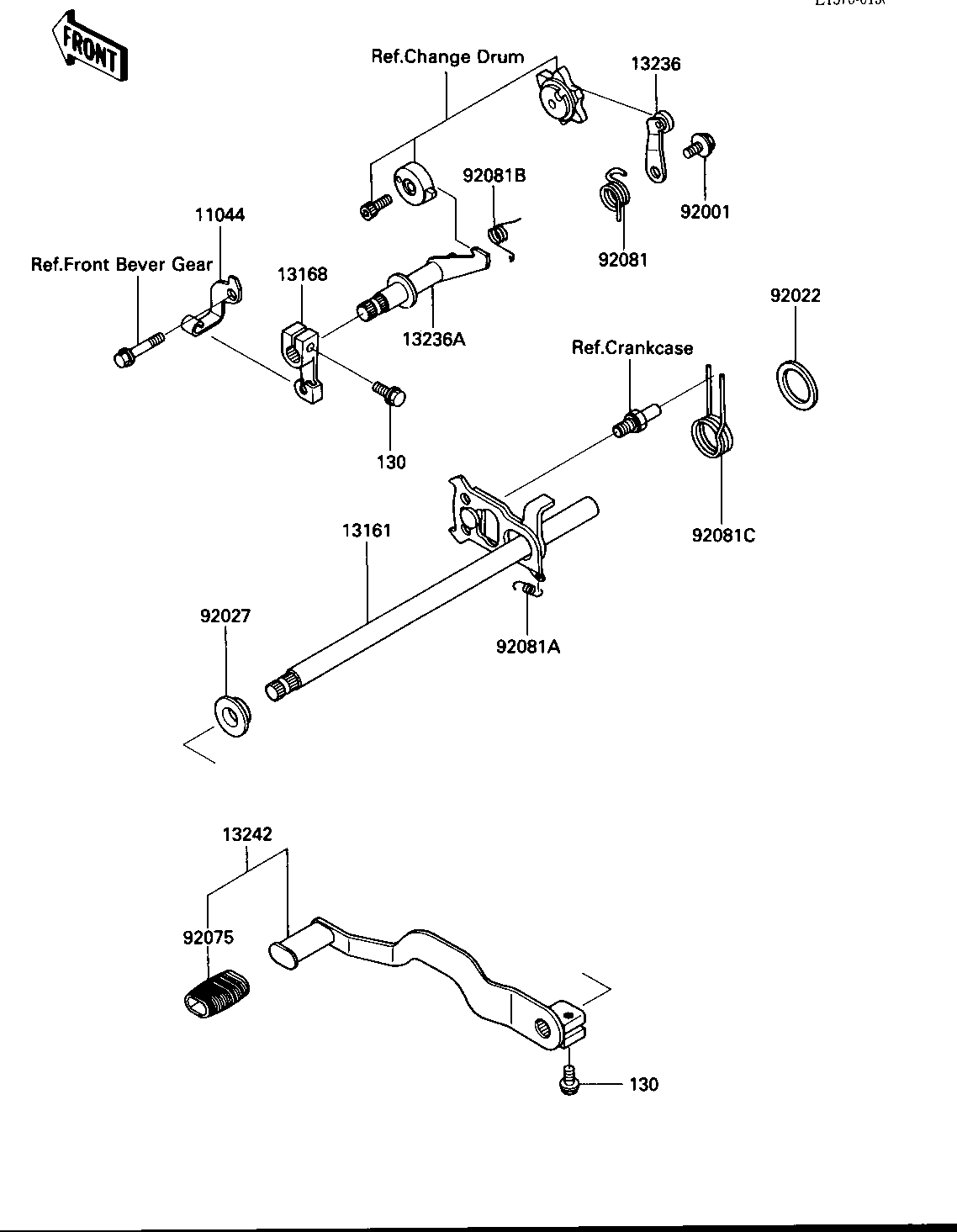

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REVERSE CABLE 11044 11044-1303 1
LEVER-COMP-CHANGE SHA 13161 13161-1196 1
LEVER,REVERSE 13168 13168-1267 1
LEVER-COMP,CHANGE DRU 13236 13236-1133 1
LEVER-COMP,REVERSE 13236A 13236-1134 1
LEVER-ASSY-CHANGE,PED 13242 13242-1198 1
BOLT 92001 92001-1715 1
WASHER PLAIN 92022 92022-057 1
COLLAR,L=5.2 92027 92027-1891 1
DAMPER,CHANGE PEDAL 92075 92075-1585 1
SPRING 92081 92081-1496 1
SPRING,CHANGE LEVER 92081A 92081-1753 1
SPRING,REVERSE LEVER 92081B 92081-1850 1
SPRING,CHANGE SHAFT R 92081C 92081-1851 1
BOLT-FLANGED,6X20,BLA 130 130S0620 2
