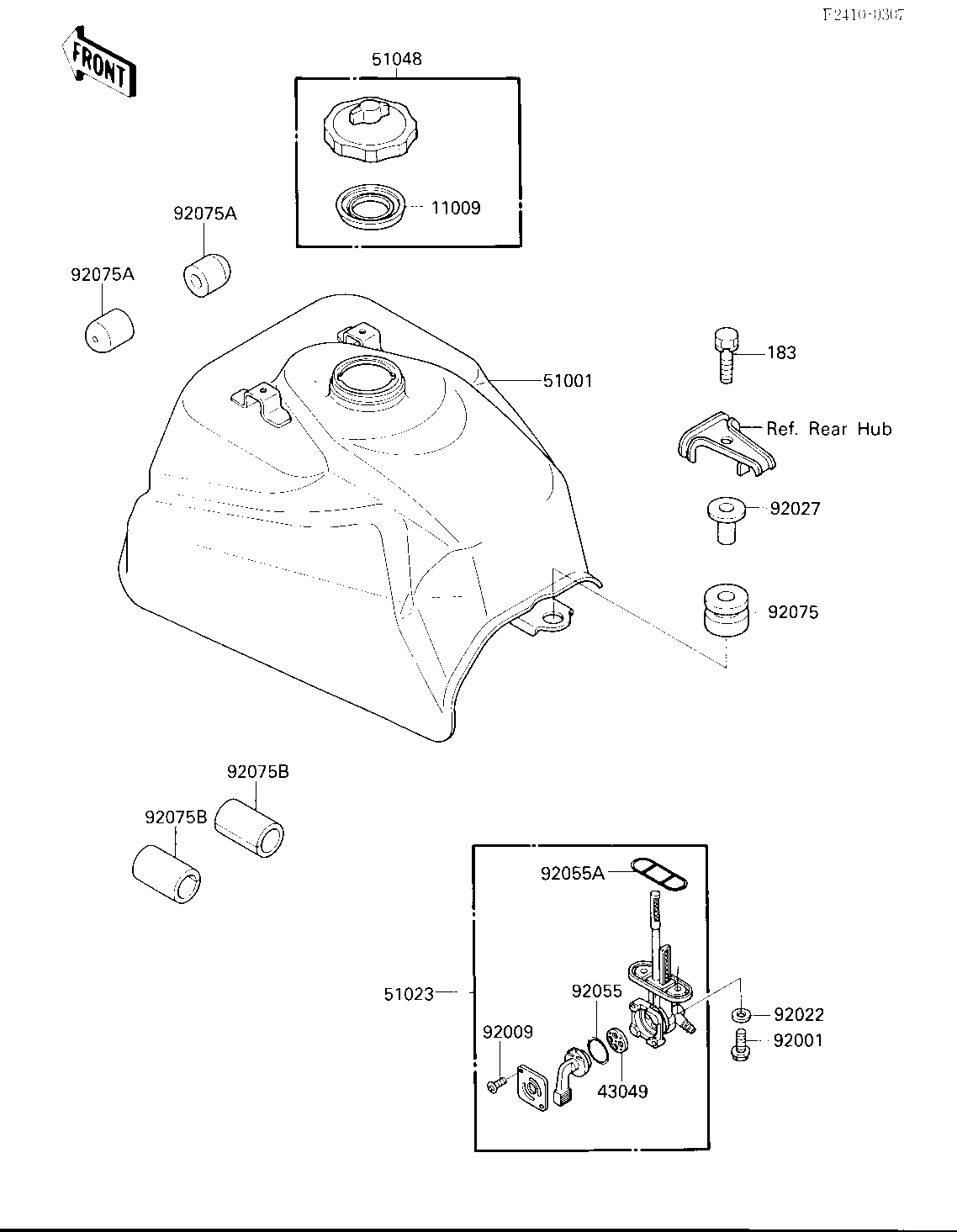

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11009 51059-006 1
PACKING,FUEL TAP VALV 43049 43049-1017 1
TANK-COMP-FUEL 51001 51001-1210 1
TAP-ASSY,FUEL 51023 51023-1141 1
CAP-ASSY-TANK,FUEL 51048 51048-1068 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
SCREW PAN HEAD 3X5 92009 220B0305A 2
WASHER-PLAIN 92022 92022-183 2
COLLAR,FUEL TANK FITT 92027 92027-1134 1
"0" RING,FUEL TAP LEV 92055 92055-1111 1
"0" RING,FUEL TANK 92055A 92055-1112 1
DAMPER RUBB TANK REAR 92075 92075-030 1
DAMPER RUBBER 92075A 92075-044 2
DAMPER,FUEL TANK,FR 92075B 92075-1369 2
BOLT-UPSET-WS-SMALL 183 183D0835 1
