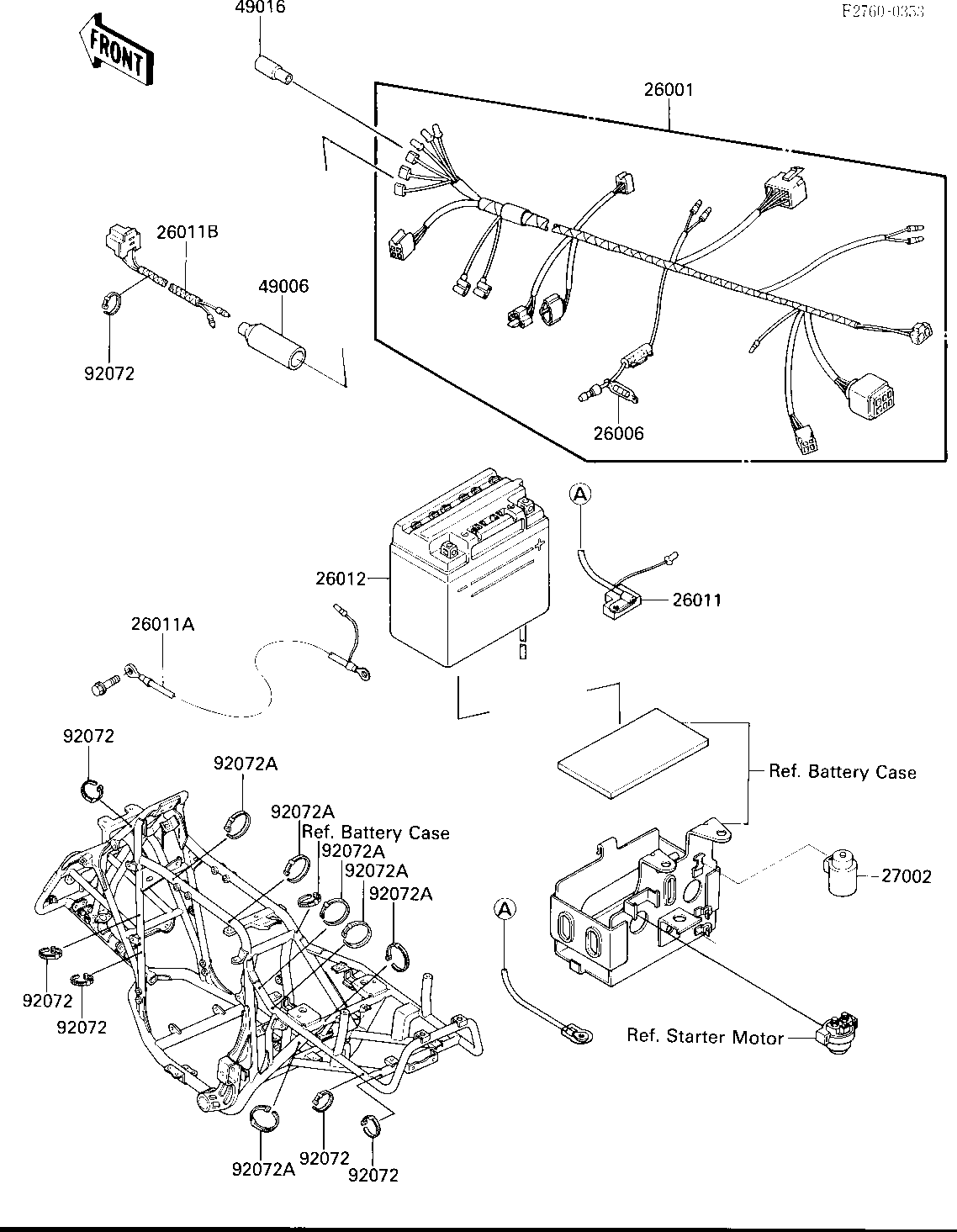

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HARNESS,MAIN 26001 26001-1712 1
FUSE,30A,L=30 26006 26006-1059 1
WIRE-LEAD,BATTERY(+) 26011 26011-1302 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1303 1
WIRE-LEAD,HEAD LAMP 26011B 26011-4011 1
FB BAT FB16CL-B 26012 26012-1118 1
RELAY-ASSY 27002 27002-1051 1
BOOT,HARNESS 49006 49006-4007 1
COVER-SEAL 49016 49016-1119 1
BAND,MIDDLE 92072 92072-031 6
BAND,WIRING HARNESS 92072A 92072-056 6
