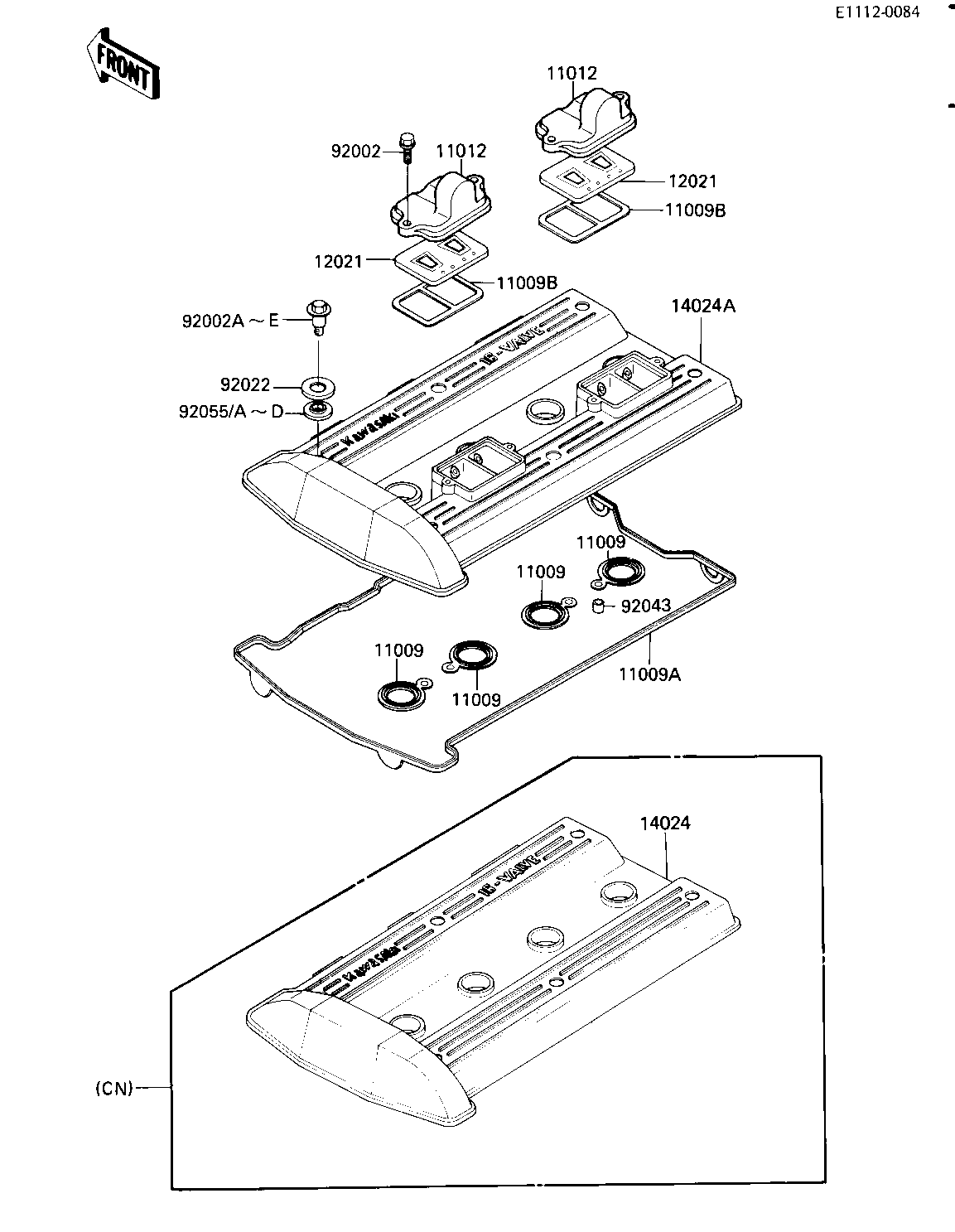

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET | 11009 | 11009-1377 | 4 | ||
GASKET,CYLINDER HEAD | 11009A | 11009-1378 | 1 | ||
GASKET,REED VALVE | 11009B | 11009-1905 | 2 | CA,US | |
CAP,REED VALVE | 11012 | 11012-1476 | 2 | CA,US | |
VALVE-ASSY-REED | 12021 | 12021-1053 | 2 | CA,US | |
COVER,CYLINDER HEAD (Canada) | 14024 | 14024-1082 | 1 | CN | |
COVER,CYLINDER HEAD | 14024A | 14024-1138 | 1 | CA,US | |
BOLT,6X22 | 92002 | 92002-1068 | 4 | CA,US | |
BOLT | 92002B | 92150-1447 | 6 | CA,US | |
BOLT | 92002C | 92150-1447 | 6 | CN | |
BOLT,HEAD COVER | 92002D | 92002-1595 | 6 | CA,US | |
BOLT,HEAD COVER | 92002E | 92002-1595 | 6 | CN | |
WASHER,HEAD COVER BOL | 92022 | 92022-1487 | 6 | ||
PIN,DOWEL,8X10 | 92043 | 92043-1302 | 4 | CA,US | |
RING-O,HEAD COVER BOL | 92055A | 92055-1225 | 6 | CA,US | |
RING-O,HEAD COVER BOL | 92055B | 92055-1225 | 6 | CN | |
RING-O,HEAD COVER BOL | 92055C | 92055-1314 | 6 | CA,US | |
RING-O,HEAD COVER BOL | 92055D | 92055-1314 | 6 | CN |
